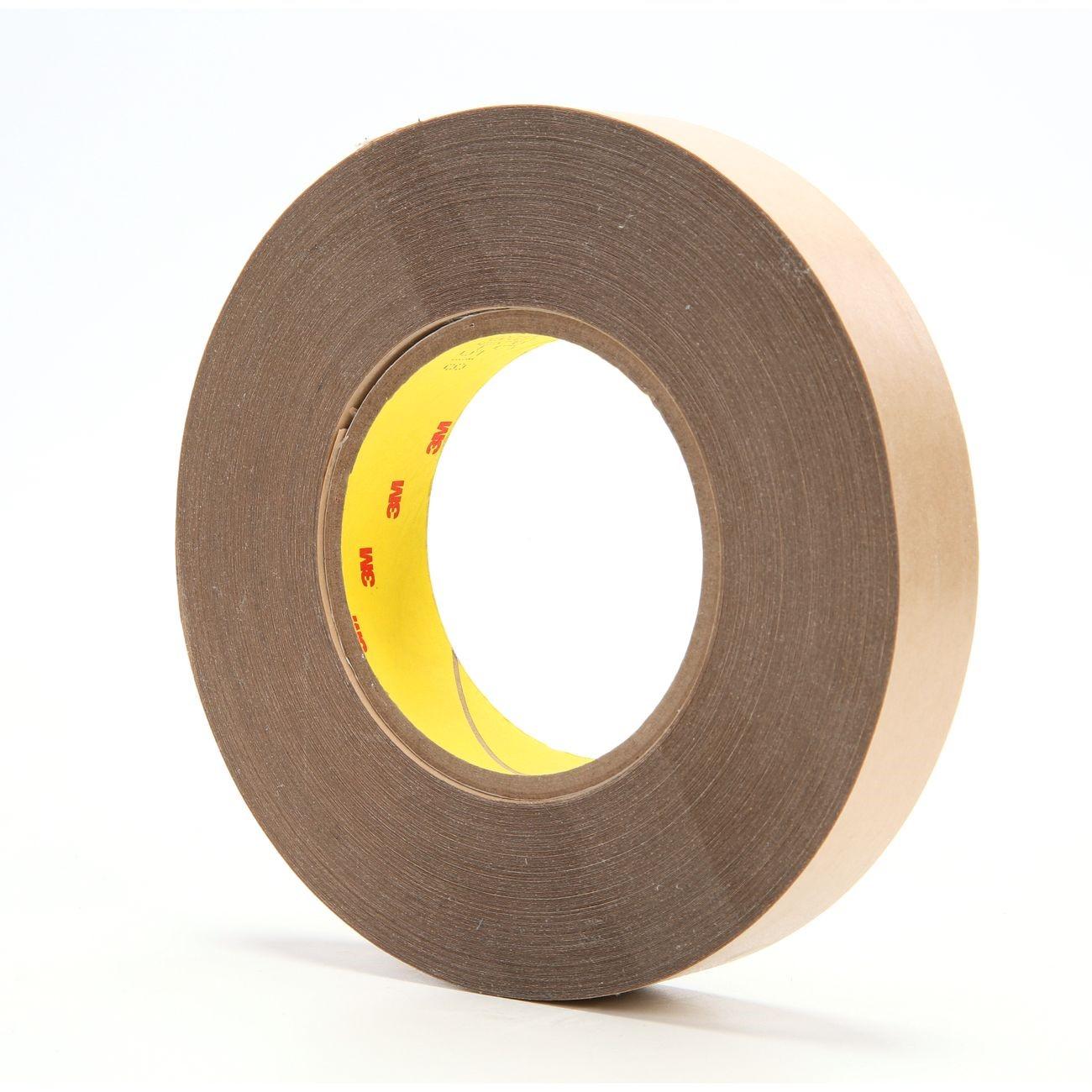

3M 7000123367 Adhesive Transfer Tape 1 in X 60 Yd

Product Description

The 3M 7000123367 is an adhesive transfer tape designed for demanding bonding applications in industrial and trade environments. Built on 3M High Performance Acrylic Adhesive 350, this tape bonds both high and low surface energy materials, including powder coated paints and rougher substrates. The adhesive layer is 5.0 mils thick and is fiber reinforced for roll stability in narrow widths, which reduces oozing and keeps narrow rolls consistent during application. A tan 58 lb. PCK (polycoated kraft) paper liner provides moisture resistance and minimizes wrinkling during handling and dispensing. The tape ships in rolls measuring 1 inch wide by 60 yards long.

This transfer tape suits applications where a low-profile, high-strength bond is needed without adding bulk or visible hardware. It is well suited for assembly work in HVAC, electrical enclosure fabrication, signage, and general industrial manufacturing. The fiber-reinforced acrylic adhesive delivers reliable chemical resistance along with strong shear and peel performance, even under elevated temperature conditions. It is rated for short-term temperature exposure up to 450 degrees F and long-term continuous use up to 300 degrees F, making it appropriate for environments near heat sources or in applications with thermal cycling.

Key Features

• 5.0 mil adhesive thickness bonds low surface energy substrates and powder coated paints
• Fiber-reinforced adhesive resists oozing and maintains roll stability in narrow widths
• 58 lb. PCK liner provides moisture resistance and minimizes wrinkles during application
• Short-term temperature rating of 450 degrees F and long-term rating of 300 degrees F
• Excellent chemical resistance with strong shear and peel strength at elevated temperatures
• Low odor formulation suitable for enclosed or occupied work areas

Compatibility

Designed as an OEM-style adhesive transfer tape for bonding high and low surface energy materials, including powder coated paints and substrates with rougher surface textures, in industrial and trade assembly applications.

Installation Notes

Surface preparation is critical before applying any pressure-sensitive transfer tape — clean, dry, and degrease all bonding surfaces prior to application. Apply firm, even pressure across the bond line to ensure full adhesive contact. Power down or de-energize any electrical components before applying tape in or near live panels or enclosures. Follow all applicable workplace safety guidelines when working in high-temperature environments near the tape's rated limits.

Technical Specifications

• Adhesive Type: High Performance Acrylic Adhesive 350, fiber reinforced
• Tape Thickness: 5.0 mils
• Width: 1 inch
• Length: 60 yards
• Liner: 58 lb. PCK (polycoated kraft) paper, tan
• Short-Term Temperature Rating: 450 degrees F
• Long-Term Temperature Rating: 300 degrees F
• Color: Transparent
• Unit of Measure: Roll
• Weight: 0.82 pounds

Standard Information

• Brand: 3M
• Manufacturer Part Number: 7000123367
