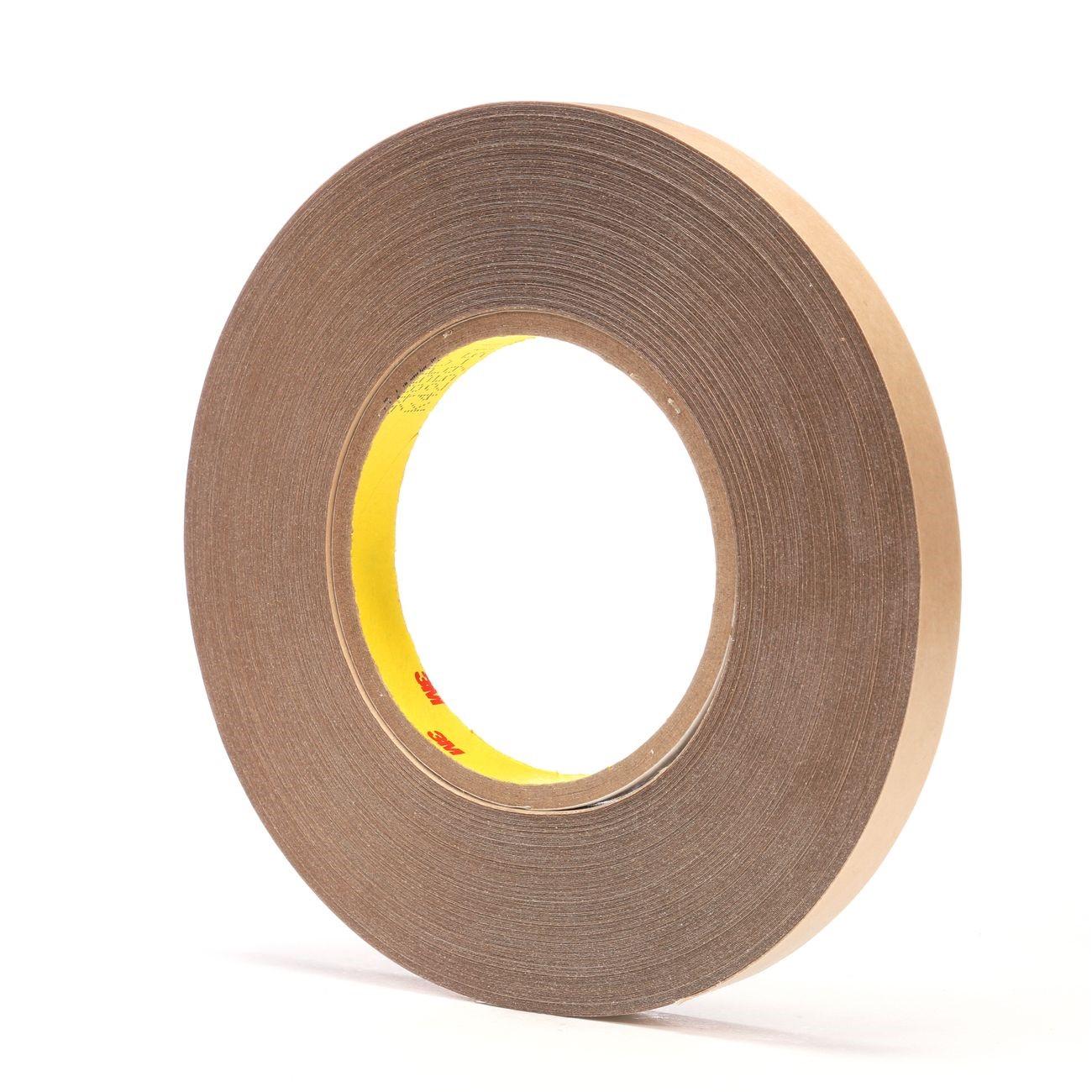

3M 7000123366 Adhesive Transfer Tape 0.5 in X 60 Yd

Product Description

The 3M 7000123366 is an adhesive transfer tape designed for high-strength bonding across a wide range of industrial and commercial applications. Built on 3M High Performance Acrylic Adhesive 350, this tape measures 0.5 inches wide and 60 yards long, with a total thickness of 5.0 mils. The adhesive layer is mounted on a tan, 58-pound PCK (polycoated kraft) paper liner that provides moisture resistance and reduces wrinkle formation during handling and application. The fiber-reinforced adhesive adds roll stability in narrow-width formats and prevents edge oozing. Licensed trade professionals and industrial assembly technicians are the primary installers and users of this product.

This transfer tape is suited for bonding high and low surface energy substrates, including powder-coated paints and materials with rougher surface profiles. It performs well in applications requiring short-term temperature exposure up to 450 degrees F and long-term exposure up to 300 degrees F. Typical use cases include laminating, mounting, and joining dissimilar materials in manufacturing, signage, electronics assembly, and general fabrication environments. Its transparent adhesive construction allows for clean, nearly invisible bonds where appearance matters.

Key Features

• 5.0 mil thickness delivers strong adhesion to low surface energy substrates and powder-coated surfaces
• Fiber-reinforced adhesive resists oozing and maintains roll stability in narrow widths
• 58-pound PCK paper liner offers moisture resistance and minimizes wrinkles during application
• Rated for short-term temperature exposure up to 450 degrees F and long-term use up to 300 degrees F
• Excellent chemical resistance with strong shear and peel strength at elevated temperatures
• Low odor formulation suitable for use in occupied or enclosed work environments

Compatibility

Designed for bonding high and low surface energy materials, including powder-coated paints and rougher surface substrates, in industrial and commercial assembly applications.

Installation Notes

Surface preparation is critical before applying transfer tape — clean all bonding surfaces thoroughly to remove dust, oil, and moisture. Apply firm, even pressure across the tape after placement to maximize adhesive contact. No special tools are required, though a roller applicator is recommended for uniform bond strength. Avoid exposing the bonded assembly to temperatures outside the rated range during initial cure.

Technical Specifications

• Tape Width: 0.5 inches
• Tape Length: 60 yards
• Tape Thickness: 5.0 mils
• Short-Term Temperature Rating: 450 degrees F
• Long-Term Temperature Rating: 300 degrees F
• Liner Type: 58-pound PCK (polycoated kraft) paper
• Adhesive Type: High Performance Acrylic Adhesive 350, fiber reinforced
• Finish: Transparent
• Unit of Measure: Roll
• Weight: 0.4 pounds
• UPC: 00021200634765

Standard Information

• Brand: 3M
• Manufacturer Part Number: 7000123366
