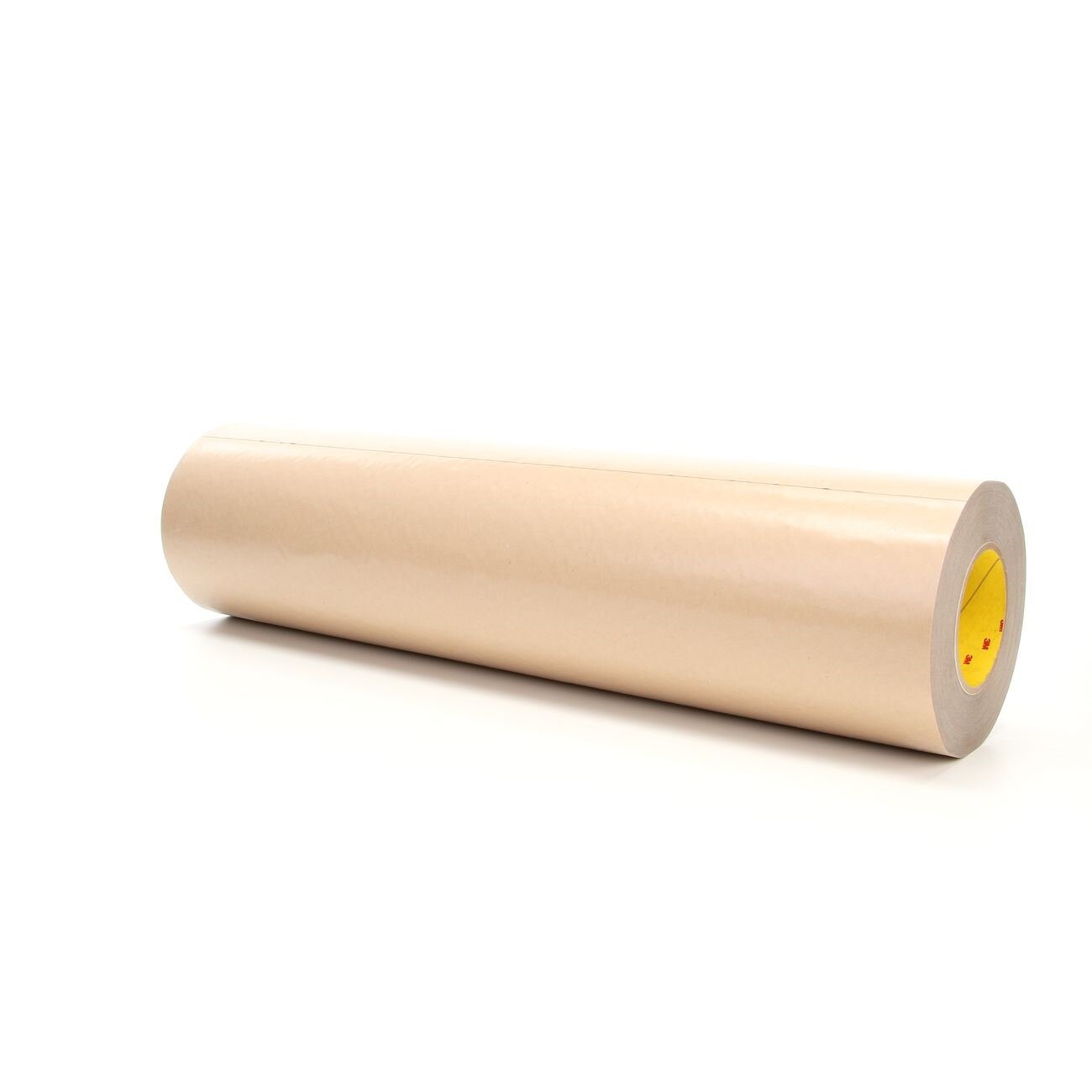

3M 7000123365 Adhesive Transfer Tape 24 Inch 60 Yd

Product Description

The 3M 7000123365 is a high-performance acrylic adhesive transfer tape designed for demanding bonding applications across industrial, assembly, and trade environments. Built on 3M High Performance Acrylic Adhesive 350, this tape delivers reliable adhesion to both high and low surface energy substrates, including powder-coated paints. The tape measures 5.0 mils thick and ships on a tan, 58-pound PCK (polycoated kraft) paper liner that resists moisture and minimizes wrinkle formation during handling. Fabricators, assembly technicians, and industrial installers use this product where a clean, solvent-free bond is required without the bulk of a double-coated carrier.

This adhesive transfer tape is suited for bonding dissimilar materials, including those with rougher surface profiles or varying surface energy levels. It performs in short-term temperature exposure up to 450 degrees F and maintains bond integrity during long-term service up to 300 degrees F, making it appropriate for use near heat-generating equipment or in environments subject to thermal cycling. The tape comes in a 24-inch-wide by 60-yard roll format, which is well-suited for wide-format cutting, laminating, or sign and panel assembly operations.

Key Features

• 5.0 mil thickness provides strong bond to low surface energy substrates and powder-coated surfaces
• 58-pound PCK polycoated kraft liner resists moisture and reduces wrinkles during application
• Fiber-reinforced adhesive resists oozing and maintains roll stability in narrow-width configurations
• Short-term temperature resistance up to 450 degrees F; long-term rated to 300 degrees F
• Excellent chemical resistance with strong shear and peel strength at elevated temperatures
• Low-odor formulation for improved working conditions in enclosed or ventilated spaces

Compatibility

Designed for bonding high and low surface energy materials, including powder-coated paints and rougher surface substrates, in industrial assembly and fabrication applications.

Installation Notes

Surface preparation is critical for acrylic transfer tape bonds — clean substrates thoroughly and allow solvents to flash off completely before application. Apply firm, even pressure across the full bond area to ensure full adhesive contact. No special tools are required, but a roller or squeegee is recommended for wide-format applications. Remove the liner carefully to avoid stretching or distorting the adhesive layer prior to placement.

Technical Specifications

• Tape Thickness: 5.0 mils (0.127 mm)
• Width: 24 inches
• Length: 60 yards
• Unit of Measure: Roll
• Liner Type: 58 lb PCK (polycoated kraft) paper, tan
• Adhesive Type: High Performance Acrylic Adhesive 350, fiber reinforced
• Short-Term Temperature Rating: 450 degrees F (232 degrees C)
• Long-Term Temperature Rating: 300 degrees F (149 degrees C)
• Package Weight: 20.58 pounds
• UPC: 00021200634628

Standard Information

• Brand: 3M
• Manufacturer Part Number: 7000123365
