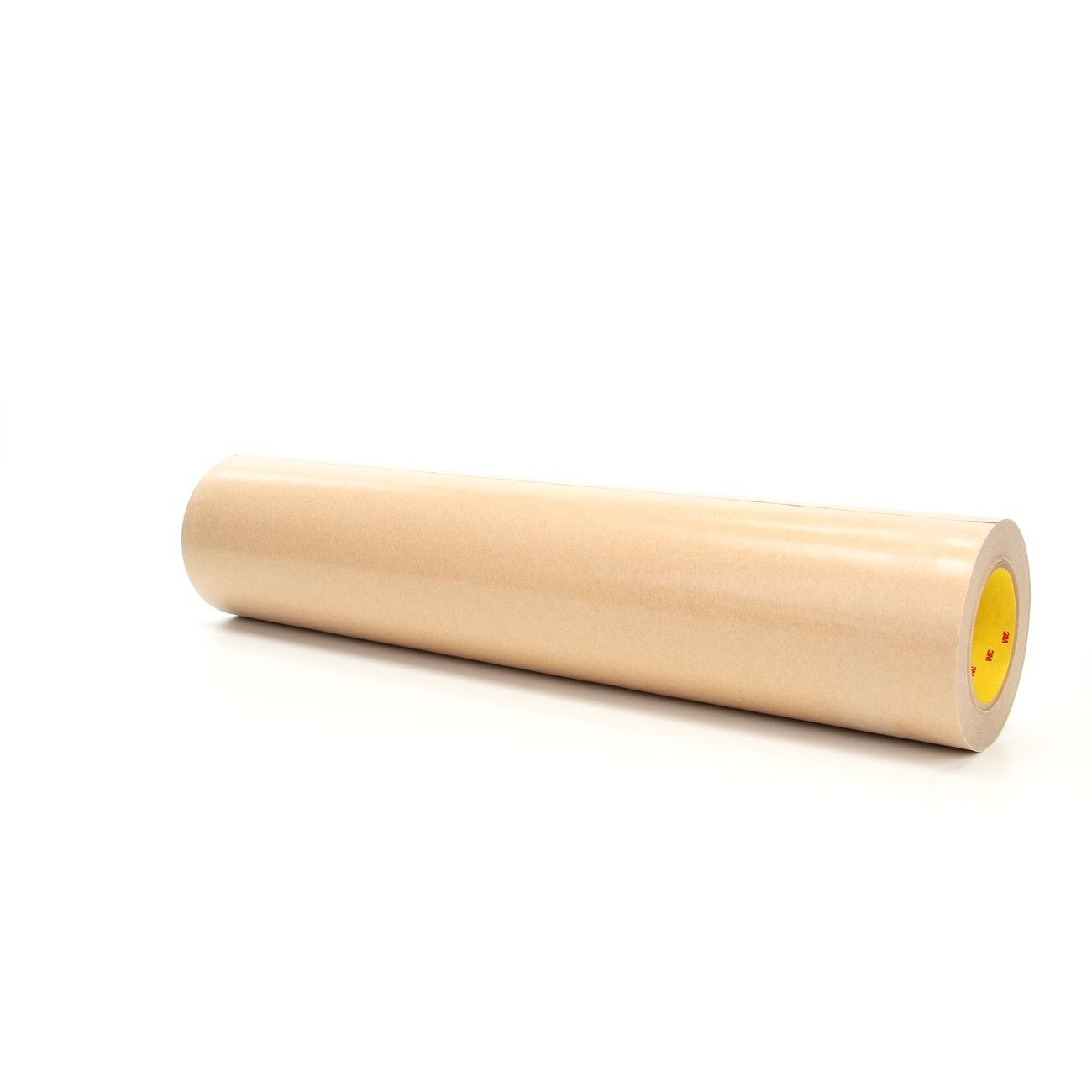

3M 7000123352 Adhesive Transfer Tape 24 in 60 Yd Roll

Product Description

The 3M 7000123352 is an acrylic adhesive transfer tape designed for bonding dissimilar substrates in demanding fabrication and assembly applications. At 2 mil thickness, it delivers a low-profile bond line suited for splicing film, foils, fabrics, and coated papers. The tape uses a 300-family high-tack acrylic adhesive that provides strong initial adhesion without heat activation. A 60 densified kraft (DK) liner adds the dimensional stability needed for precision die-cutting and laminating operations. Licensed tradespeople and fabrication technicians in HVAC, industrial, and specialty assembly environments rely on this tape where a clean, thin, high-tack bond is required.

This adhesive transfer tape is well suited for joining low surface energy plastics such as polyethylene and polypropylene, as well as foam and gasket attachment applications. The fiber-reinforced construction improves conformability and makes handling easier during high-speed processing. It is commonly used in light industrial and trade fabrication settings where consistent liner release and repeatable bond performance across varied substrate types are priorities. The 24-inch width and 60-yard roll length support both hand application and automated laminating equipment.

Key Features

• 2 mil thickness suits thin-profile applications including film splicing, foil bonding, and coated paper lamination
• High-tack 300-family acrylic adhesive delivers strong initial adhesion to difficult substrates
• Performs on low surface energy plastics including polyethylene and polypropylene
• 60 DK liner provides dimensional stability for die-cutting and laminating processes
• Fiber-reinforced construction improves conformability and ease of handling
• Thinner alternative to 3M Adhesive Transfer Tape 950 for lower-profile bond requirements

Compatibility

Designed for bonding dissimilar substrates including foams, gaskets, low surface energy plastics, films, foils, fabrics, and coated papers in industrial fabrication and assembly applications.

Installation Notes

Application surface should be clean, dry, and free of oils or contaminants before tape is applied. Firm, even pressure across the bond area improves initial adhesion, particularly on low surface energy substrates. When die-cutting, confirm liner stability under the cutting conditions used. Handle the liner carefully to avoid pre-release of the adhesive layer during processing.

Technical Specifications

• Adhesive Type: Acrylic, 300 family high-tack
• Thickness: 2 mil
• Tape Width: 24 inches
• Tape Length: 60 yards
• Liner Type: 60 densified kraft (DK)
• Unit of Measure: Roll
• Package Weight: 4.16 pounds
• Package Length: 8.34 inches
• Package Width: 8.26 inches
• Package Height: 26.08 inches
• UPC: 00021200188152

Standard Information

• Brand: 3M
• Manufacturer Part Number: 7000123352
