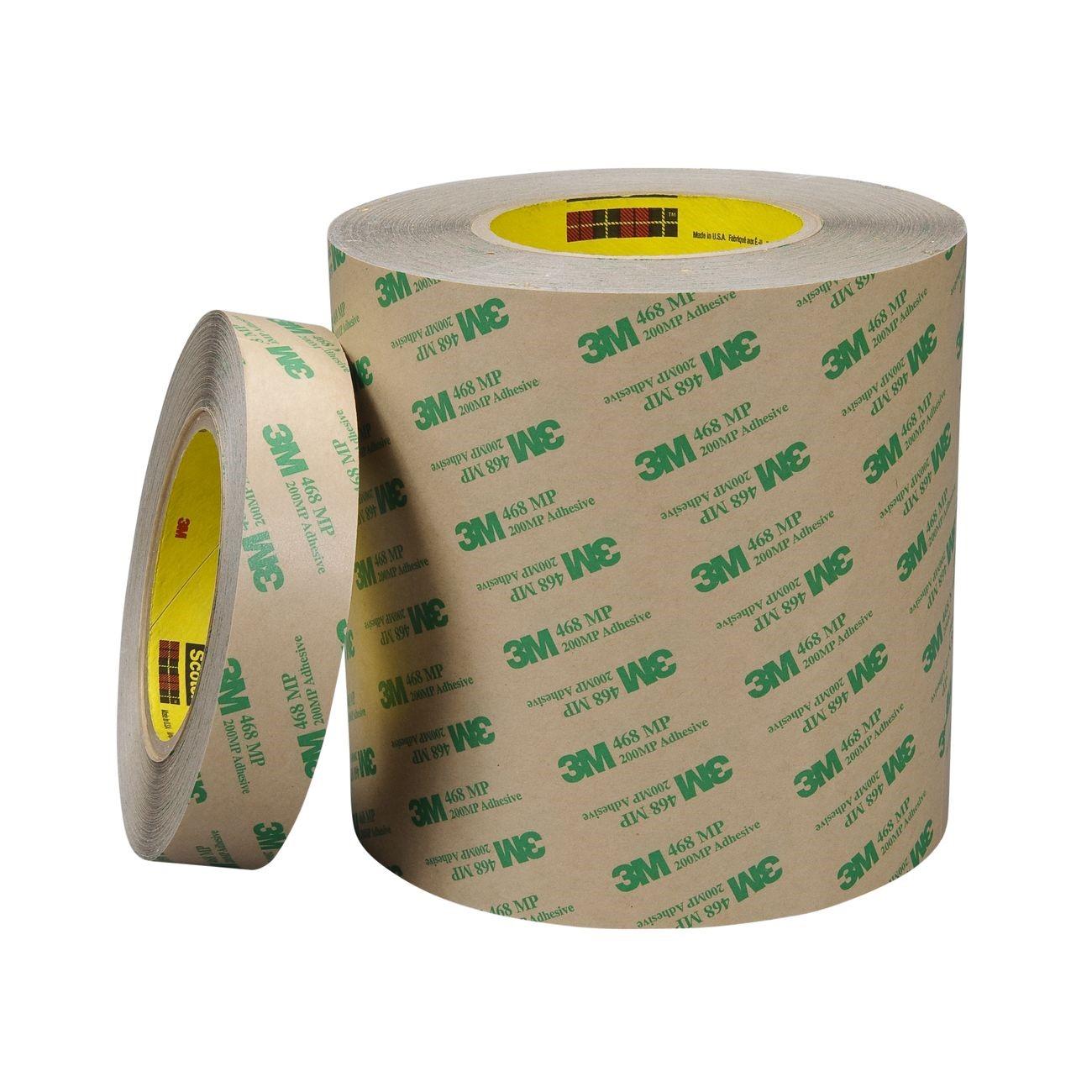

3M 7000123343 Adhesive Transfer Tape 24 in 180 Yd

Product Description

The 3M 7000123343 is an adhesive transfer tape using 3M High Performance Acrylic Adhesive 200MP, a widely recognized standard for graphic attachment and general industrial bonding applications. The tape delivers strong peel and shear strength on metals and high surface energy (HSE) plastics. It is temporarily repositionable during placement, which allows for accurate positioning before final adhesion. Once set, it resists slippage, edge lifting, solvents, and humidity. The tape ships on a 58 polycoated kraft paper liner that supports splicing and laminating work. It measures 24 inches wide on a 180-yard roll.

This adhesive transfer tape is suited for industrial and commercial applications where a clean, carrier-free bond line is required. Typical uses include graphic attachment, label lamination, nameplate bonding, and component assembly on metal or HSE plastic substrates. The thicker adhesive layer improves wet-out on textured surfaces, making it a practical choice in fabrication, signage, and general industrial joining environments. Installation is typically performed by skilled trades, assembly technicians, or fabrication professionals.

Key Features

• 200MP acrylic adhesive delivers strong peel and shear strength on metals and HSE plastics
• Temporarily repositionable for accurate placement before final bond sets
• 58 polycoated kraft paper liner supports splicing and laminating applications
• Thicker adhesive construction improves wet-out and adhesion on textured surfaces
• High resistance to solvents and humidity after bond is established
• Performs reliably across a range of hot and cold temperature exposures

Compatibility

Designed for bonding applications on metal substrates and high surface energy plastics; commonly used in graphic attachment, industrial lamination, and general component joining applications.

Installation Notes

Surface preparation is critical before applying adhesive transfer tape. Clean and dry the substrate thoroughly to remove oils, dust, and contaminants prior to application. Apply firm, even pressure across the full bond area to ensure proper adhesive wet-out. Once the liner is removed and the adhesive is pressed into place, reposition attempts may reduce final bond strength.

Technical Specifications

• Adhesive Type: High Performance Acrylic 200MP
• Tape Width: 24 inches
• Tape Length: 180 yards
• Liner Type: 58 polycoated kraft paper
• Transparency: Transparent
• Unit of Measure: Roll
• Minimum Order Quantity: 1
• Package Weight: 55.14 pounds
• Package Length: 11.06 inches
• Package Width: 11.06 inches
• Package Height: 27.38 inches
• UPC: 00021200178696

Standard Information

• Brand: 3M
• Manufacturer Part Number: 7000123343
