3M 7000122490 Double Coated Urethane Foam Tape 4004

Product Description

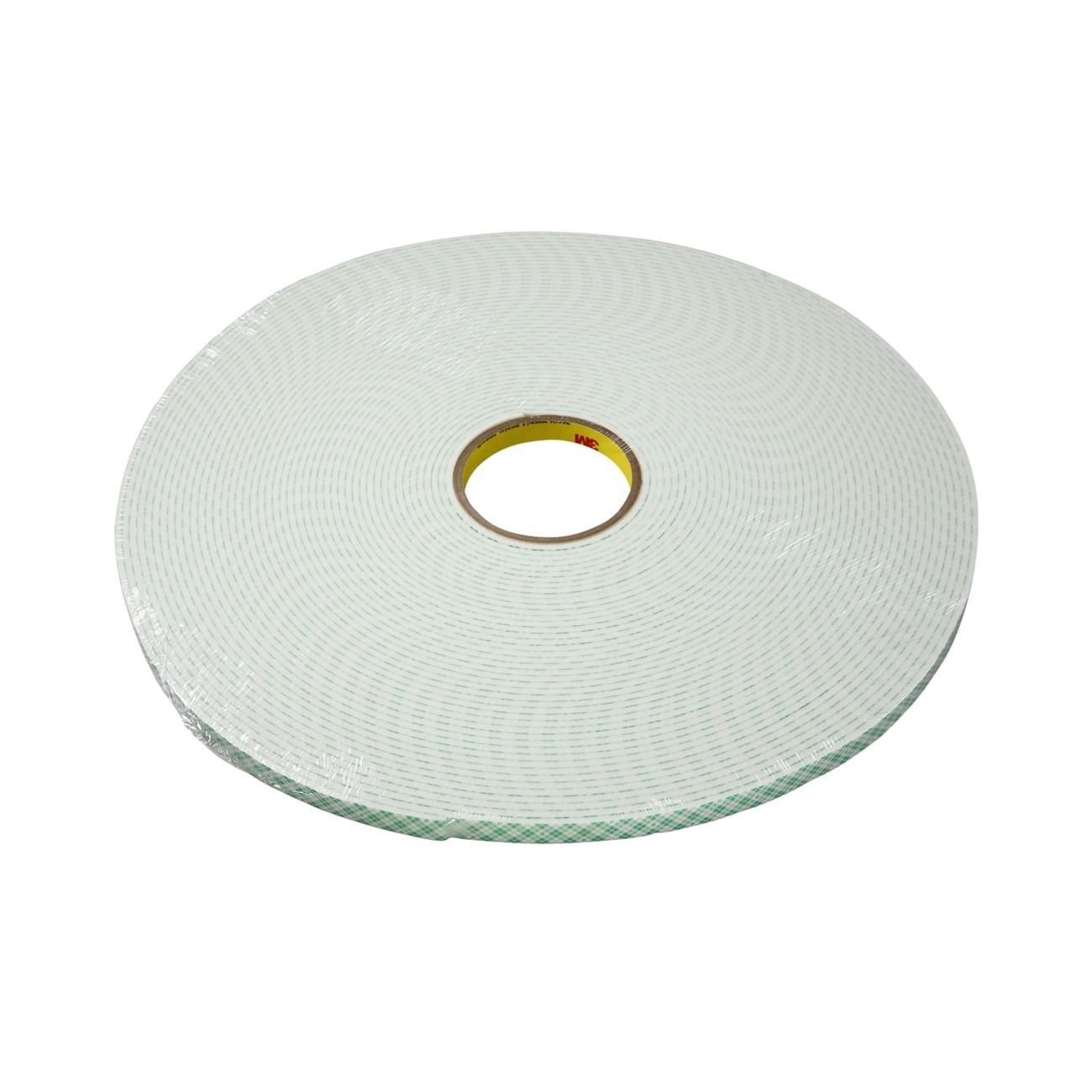

The 3M 7000122490 is a double coated, open-cell urethane foam tape sold under the 4004 series designation. It features a pressure-sensitive adhesive on both faces and ships with a paper liner for handling convenience. At 1/4 inch thick, the foam core bonds and fills gaps on irregular, uneven, or slightly rough surfaces. The off-white foam provides cushioning and conformability, making it suitable for mounting, gasketing, and vibration-damping applications across HVAC, plumbing, electrical, and general trade work. Each roll measures 1/2 inch wide by 18 yards long.

This tape is used in light industrial and commercial applications where a flexible, compressible bond is required between dissimilar or irregular substrates. Common applications include bonding trim, sealing panel gaps, mounting lightweight components, and cushioning parts against vibration or minor impact. It is particularly useful in HVAC cabinet assembly and electrical panel work where conformable gap-filling adhesive is needed without mechanical fasteners.

Key Features

• Open-cell urethane foam core conforms to irregular and uneven surfaces
• Dual-sided pressure-sensitive adhesive eliminates need for additional fasteners
• 1/4 inch foam thickness provides gap-filling and cushioning capability
• Paper liner protects adhesive during handling and allows clean, controlled application
• Off-white color aids visual confirmation of placement during installation
• 18-yard roll length reduces mid-job changeouts on larger applications

Compatibility

Designed as a general-purpose double coated foam tape suitable for bonding, mounting, and gap-filling on a range of substrates encountered in HVAC, electrical, plumbing, and light industrial applications.

Installation Notes

Surface preparation is critical for maximum adhesion — clean, dry, and dust-free substrates will yield the strongest bond. Cut to length before removing the paper liner to minimize adhesive contamination. Apply firm, even pressure along the full length of the tape after positioning to ensure full contact. No special tools or trade licensing are required for installation, though standard surface prep practices should be followed per the relevant assembly or equipment guidelines.

Technical Specifications

• Series: 4004
• Color: Off-White
• Width: 0.5 inches
• Length: 18 yards
• Thickness: 0.25 inches
• Foam Type: Open-cell urethane
• Liner: Paper
• Unit of Measure: Roll
• Weight: 0.82 pounds
• UPC: 00021200033926

Standard Information

• Brand: 3M
• Manufacturer Part Number: 7000122490
