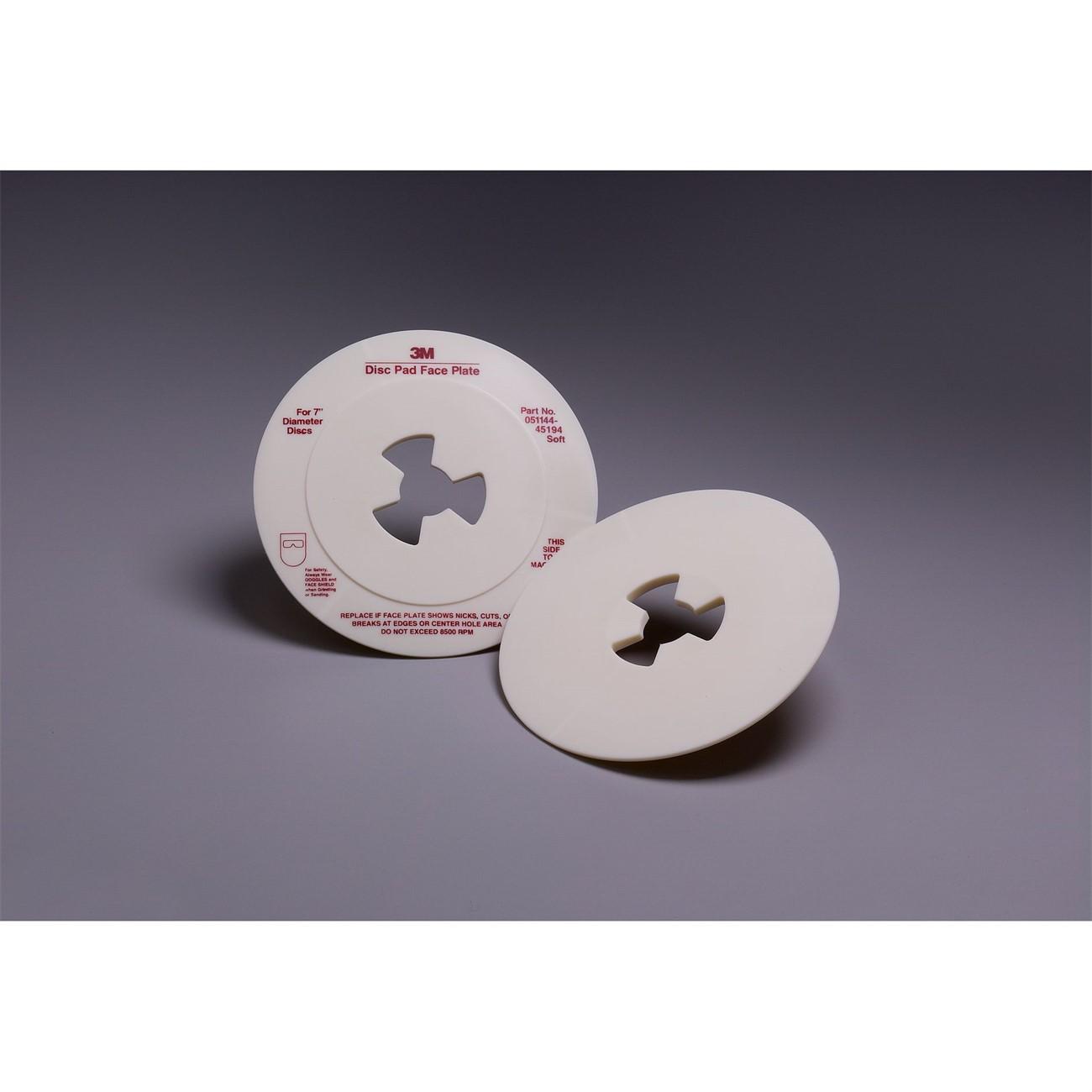

3M 7000120522 Disc Pad Face Plate 7 Inches

Product Description

The 3M 7000120522 is a soft disc pad face plate designed for use with 7-inch fibre discs in blending and light-duty grinding applications. Constructed from a soft engineered resin plastic, this face plate provides the controlled flexibility needed to conform to workpiece contours during surface preparation work. Weighing 0.38 pounds, it is a lightweight, direct-fit accessory for compatible disc pad hubs. Metalworking and fabrication trades rely on this type of face plate to extend the working life of fibre discs and maintain consistent contact pressure across the disc surface.

This face plate is suited for use with 7-inch fibre discs featuring a 7/8-inch center hole. It fits a 4-1/2-inch disc pad hub for standard applications or a 2-1/2-inch disc pad hub when additional flexibility is required. Typical use cases include weld blending, surface conditioning, and light material removal on metal workpieces in fabrication and maintenance environments.

Key Features

• Soft engineered resin construction provides controlled flex for better disc-to-surface contact
• Compatible with 7-inch fibre discs with a 7/8-inch center hole
• Fits 4-1/2-inch or 2-1/2-inch disc pad hubs depending on flexibility needed
• Suited for blending and light-duty grinding tasks
• Lightweight at 0.38 pounds for reduced operator fatigue during extended use

Compatibility

Designed for use with 7-inch x 7/8-inch center hole fibre discs and compatible with 4-1/2-inch disc pad hubs or 2-1/2-inch disc pad hubs.

Installation Notes

Installation is performed by qualified grinding and fabrication personnel. Always power down and disconnect the angle grinder from its power source before mounting or removing the face plate. Confirm the face plate is fully seated and the disc is properly secured before operating the tool. Follow all applicable safety standards for abrasive wheel use during installation and operation.

Technical Specifications

• Disc Size: 7 inches
• Center Hole Size: 7/8 inches
• Material: Soft engineered resin plastic
• Color: White
• Weight: 0.38 pounds
• UPC: 00051144451944

Standard Information

• Brand: 3M
• Manufacturer Part Number: 7000120522
