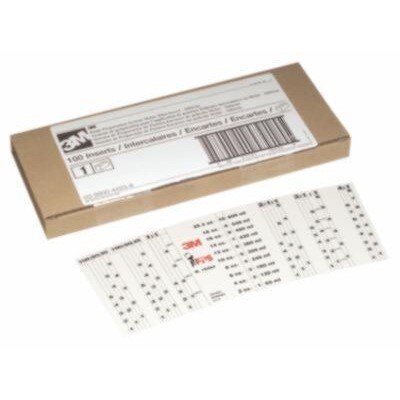

3M 7000120511 Pps Mini Cup Film Insert Mix Ratio

Product Description

The 3M 7000120511 is a film insert for the 3M PPS (Paint Preparation System) Mini Cup, sized for the 6 fl oz hard cup. The insert carries printed mix ratios directly on the film, allowing painters and auto body technicians to measure paint components accurately without separate measuring containers. It supports 1:1, 2:1:1, 3:1:1, 4:1:1, 5:1:1, and 6:1:1 mix ratios and is calibrated for use with the 3M Tri-Scale and scalers 1 through 11. Inserts are also available in 15 mL and 1/2 oz increment markings for shops that prefer metric or smaller imperial measurements. This is a consumable item replaced after each use to maintain a clean, uncontaminated mixing environment.

This insert is designed for use in automotive and industrial spray finishing environments where controlled paint-to-hardener or paint-to-reducer ratios are critical. It is placed between the hard Mini Cup and the flexible liner before filling. Suitable for waterborne and solvent-based coatings, it fits the 3M PPS Mini Cup assembly used in production shops, body shops, and fleet refinishing operations. Technicians who mix small batches of specialty coatings, touch-up materials, or adhesion promoters will find the printed ratio markings reduce measuring error and speed up job setup.

Key Features

• Mix ratio markings printed directly on the film for 1:1, 2:1:1, 3:1:1, 4:1:1, 5:1:1, and 6:1:1 ratios
• Compatible with 3M Tri-Scale and scalers 1 through 11
• Sized for the 3M PPS 6 fl oz Mini Cup hard cup
• Available in 15 mL and 1/2 oz increment markings
• Single-use consumable design keeps mixing surfaces uncontaminated between jobs
• Must be placed between the hard cup and the flexible liner for correct assembly

Compatibility

Designed for use with the 3M PPS Mini Cup system, specifically the 6 fl oz hard cup and its corresponding flexible liner. Ratio and scale markings are calibrated for use with 3M Tri-Scale and scalers 1 through 11.

Installation Notes

Film inserts must be placed between the hard cup and the flexible liner before the liner is seated and filled. Ensure the insert lies flat with no folds or creases that could distort the ratio markings. This is a consumable item intended for single use; reusing a contaminated insert can introduce cured material or residue into a fresh mix. Installation requires no tools and is performed by the painter or finishing technician during cup assembly.

Technical Specifications

• Cup Size: 6 fl oz
• Supported Mix Ratios: 1:1, 2:1:1, 3:1:1, 4:1:1, 5:1:1, 6:1:1
• Scale Compatibility: 3M Tri-Scale, scalers 1-11
• Available Increment Options: 15 mL, 1/2 oz
• Unit of Measure: Box
• Weight: 0.4 pounds
• UPC: 50051131160663

Standard Information

• Brand: 3M
• Manufacturer Part Number: 7000120511
