3M 7000120303 Abrasive Belt 80 Grit 60x25 Inch Ceramic Ao

Product Description

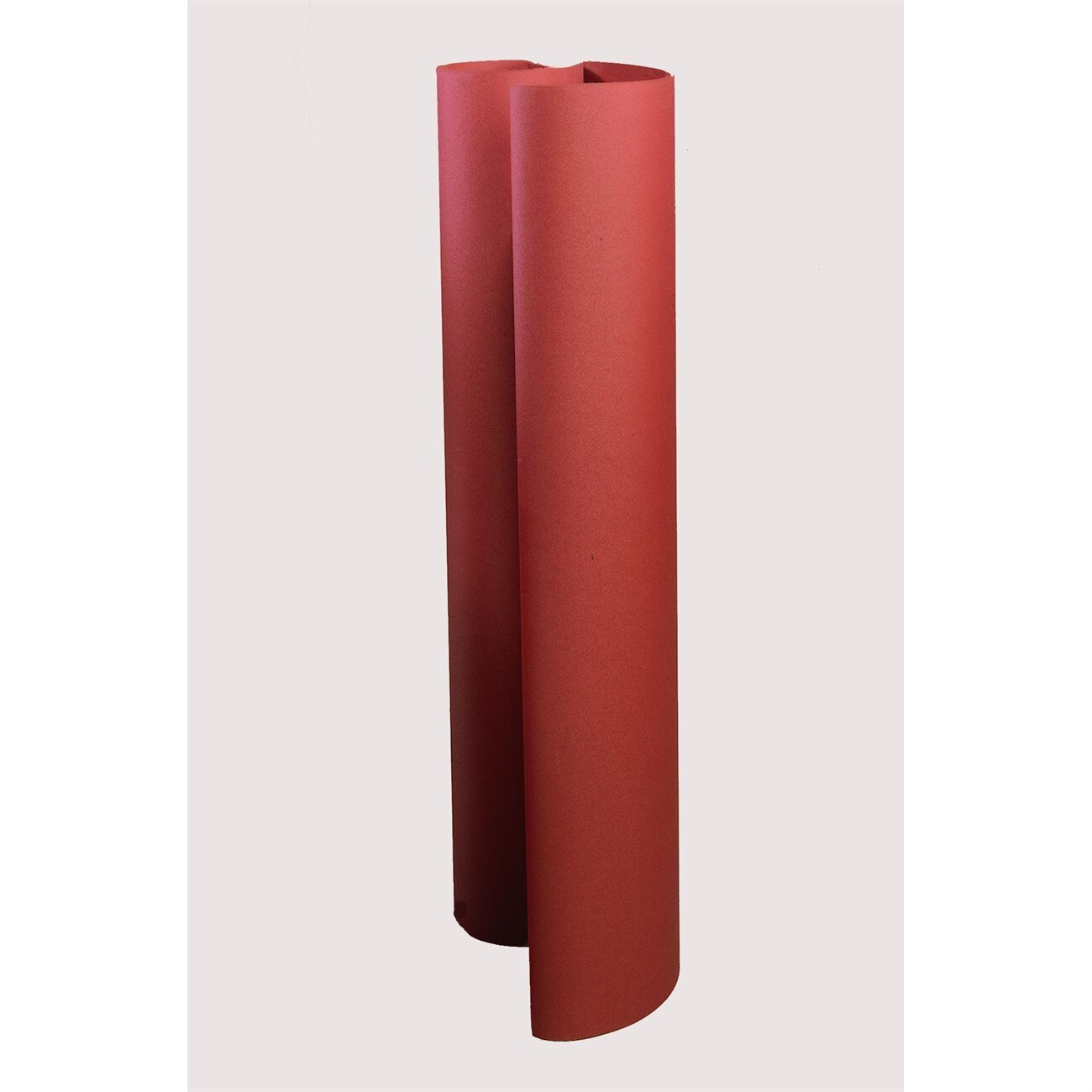

The 3M 7000120303 is a coated abrasive cloth belt engineered for demanding stock removal and metal finishing applications. It uses a blend of ceramic abrasive grain and aluminum oxide, a combination that cuts faster and outlasts conventional aluminum oxide belts in side-by-side production use. The heavyweight polyester backing is rated for high-pressure grinding and can be run either dry or with a liquid lubricant, making it a versatile choice for fabrication shops and maintenance operations. A built-in grinding aid reduces heat buildup at the workpiece, which is especially important when working stainless steel and other heat-sensitive alloys. The belt measures 60 inches in length and 25 inches in width and carries an 80-grit rating.

This belt is suited for ferrous and non-ferrous metal finishing in industrial fabrication, weld blending, and surface prep work. It performs well on belt grinders and wide-belt finishing machines operating at high contact pressures. The combination of ceramic grain and grinding aid makes it a practical choice when surface temperature control matters, such as on austenitic stainless steel or thin-gauge sheet metal where heat distortion is a concern. Machinists, fabricators, and metal finishing technicians are the primary installers and users of this product.

Key Features

• Ceramic and aluminum oxide grain blend delivers faster cut rates and longer service life than straight aluminum oxide
• Heavyweight polyester backing supports high-pressure belt grinder applications
• Runs wet or dry, compatible with water-based and oil-based lubricants
• Integrated grinding aid reduces friction heat, protecting heat-sensitive metals during grinding
• Durable resin bond resists heat deterioration to extend belt life between changes
• Orange color coding aids quick grit identification at the machine

Compatibility

Designed as a coated abrasive replacement belt for industrial belt grinders and wide-belt finishing machines that accept 60-inch by 25-inch belts.

Installation Notes

Belt installation and tensioning should be performed by trained grinding machine operators following the equipment manufacturer's guidelines. Confirm the machine is fully de-energized and the belt guard is removed before mounting or replacing the belt. Inspect the contact wheel, idler, and tracking components for wear before installing a new belt. Follow applicable ANSI and OSHA abrasive wheel and belt safety standards during setup and operation.

Technical Specifications

• Grit: 80
• Abrasive Material: Ceramic Aluminum Oxide Blend
• Belt Length: 60 inches
• Belt Width: 25 inches
• Backing Material: Heavyweight Polyester Cloth
• Bond Type: Resin
• Color: Orange
• Use Type: Dry or Wet
• Weight: 4.18 pounds
• UPC: 00051111691243

Standard Information

• Brand: 3M
• Manufacturer Part Number: 7000120303
