3M 7000119462 Abrasive Belt 132x3 Inch P320 Grit Ao Cloth

Product Description

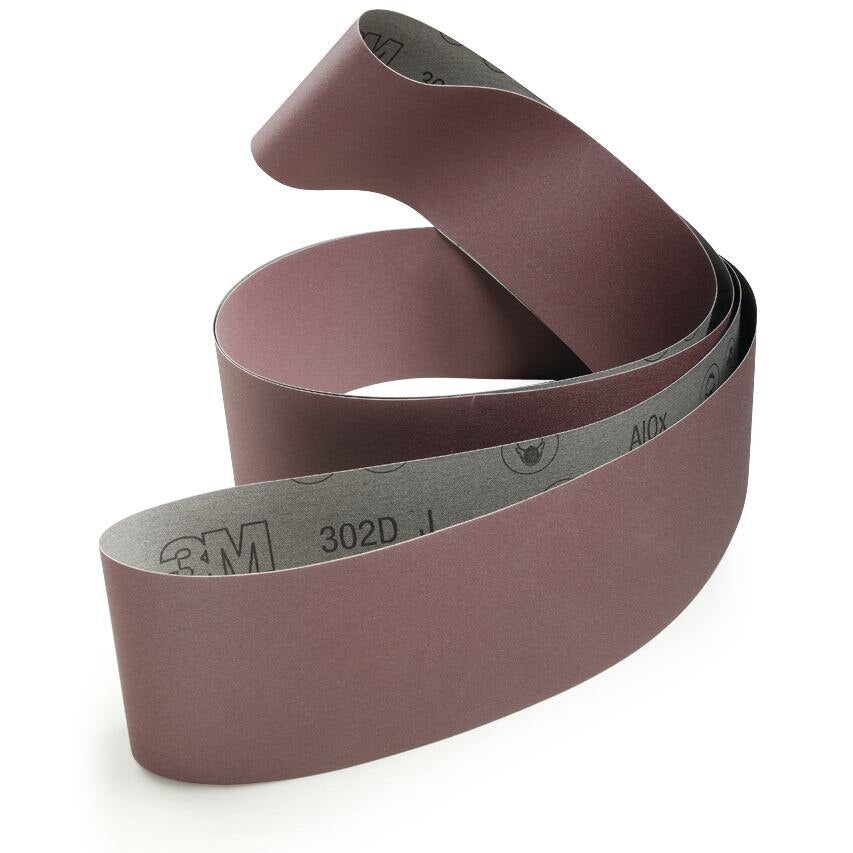

The 3M 7000119462 is an aluminum oxide coated abrasive belt designed for metalworking applications including light grinding, finishing, deburring, and grain setting. Built on a flexible J-weight cloth backing, the belt conforms readily to contours and complex part geometries. The open coat construction evacuates sanding dust efficiently, reducing loading and extending abrasive life. At 132 inches long and 3 inches wide with a P320 grit rating, this belt delivers consistent cut performance across a range of ferrous and non-ferrous metals. Resin bonding secures the abrasive grain for extended service life under continuous use.

This belt is suited for both carbon steel and stainless steel applications, as well as soft metals including aluminum, brass, bronze, and copper. The P320 grit makes it appropriate for finishing and blending passes rather than aggressive stock removal. It is designed for use on backstand grinders, file belt tools, and benchtop motors in dry metalworking environments. The flexible J-weight backing allows the belt to conform to curved surfaces and irregular profiles, making it a practical choice for fabrication shops and metal finishing operations.

Key Features

• Aluminum oxide abrasive provides fast cutting action on most metals
• Flexible J-weight cloth backing conforms to contours and complex part shapes
• Open coat construction reduces loading and extends belt life in dry metalworking
• Resin bond secures abrasive grain for consistent performance throughout belt life
• Compatible with backstand grinders, file belt tools, and benchtop motors
• Suitable for carbon steel, stainless steel, aluminum, brass, bronze, and copper

Compatibility

Designed for use on backstand grinders, file belt tools, and benchtop motors in dry metalworking applications on ferrous and non-ferrous metals.

Installation Notes

Installation should be performed by a qualified operator familiar with abrasive belt equipment. Power down and lock out the machine before mounting or removing the belt. Verify belt tracking and tension according to the equipment manufacturer guidelines before resuming operation. Inspect the belt for tears or damage prior to each use and do not exceed the machine's rated operating speed.

Technical Specifications

• Belt Length: 132 inches
• Belt Width: 3 inches
• Grit: P320
• Abrasive Material: Aluminum Oxide
• Coat Type: Open Coat
• Backing Material: J-Weight Cloth
• Bond Type: Resin
• Application: Dry Metalworking
• Weight: 0.28 pounds
• UPC: 00051141307350

Standard Information

• Brand: 3M
• Manufacturer Part Number: 7000119462
