3M 7000119312 Roloc Disc Pad Tp 3 in 1/4-20

Product Description

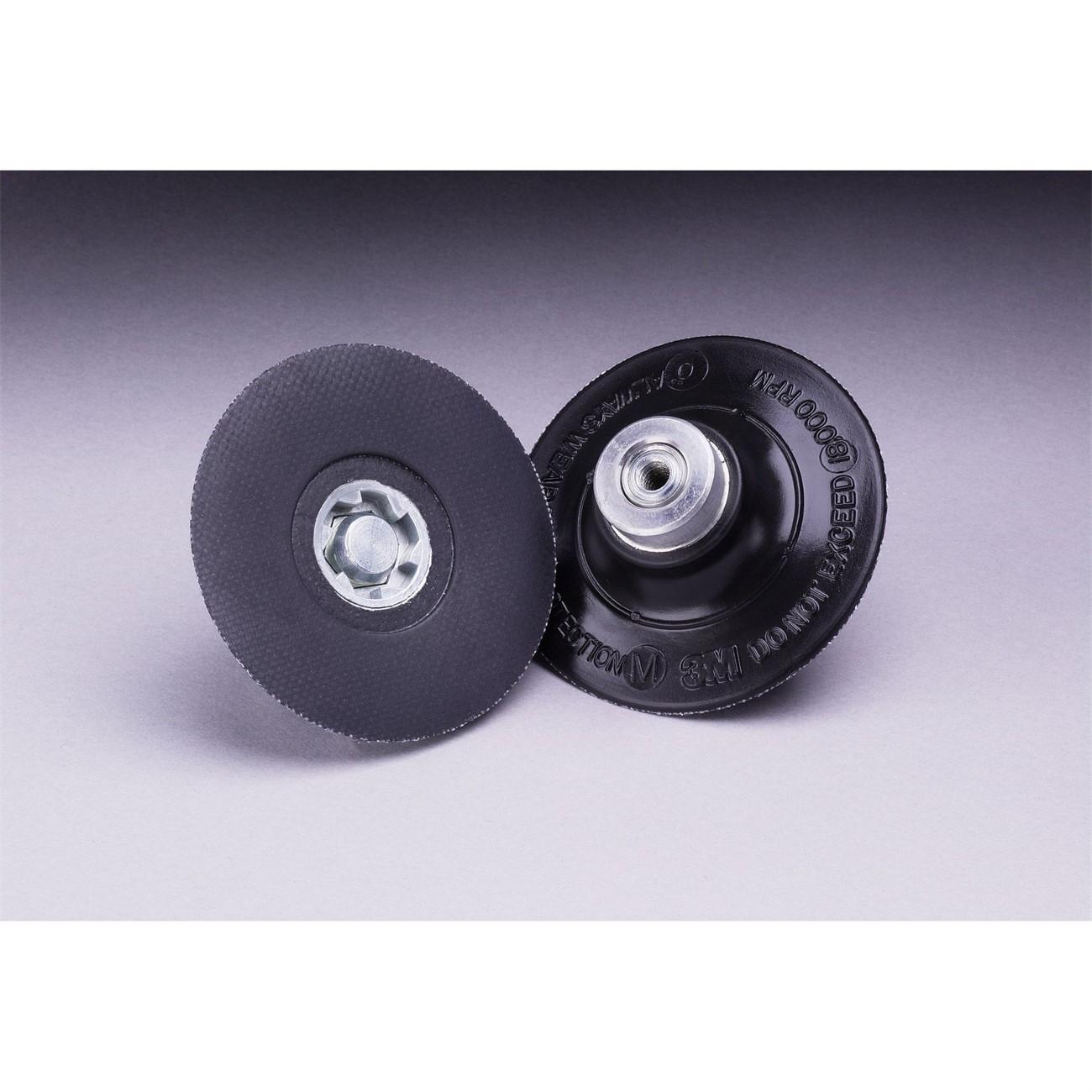

The 3M 7000119312 is a backup disc pad designed to support Roloc TP abrasive discs with a 3-inch diameter. It provides a rigid backing surface that holds the disc flat and stable during grinding, blending, and surface preparation work. The pad features a 1/4-20 internal thread, allowing direct mounting to tools with a 1/4-20 external threaded shaft. It can also be used with a Roloc shank adapter to fit collet chuck tools. Licensed tradespeople and fabricators working in HVAC, metalworking, or general mechanical trades rely on this type of pad for consistent disc performance and repeatable results.

This pad is suited for use in both shop and field settings where Roloc TP 3-inch abrasive discs are part of the workflow. Typical applications include weld blending, surface conditioning, deburring, and light material removal on metal substrates. The 1/4-20 internal thread makes it compatible with a wide range of pneumatic and electric angle grinders and die grinders that accept this thread size or a matching Roloc shank.

Key Features

• Supports 3M Roloc TP 3-inch diameter abrasive discs
• 1/4-20 internal thread for direct mounting to compatible tool shafts
• Compatible with Roloc shank adapters for collet chuck tools
• Lightweight at 0.22 pounds for reduced operator fatigue
• Sold individually — minimum order quantity is 5 units

Compatibility

Designed to accept 3M Roloc TP 3-inch diameter abrasive discs. Mounts directly to tools with 1/4-20 external threaded shafts or accepts a Roloc shank for use with collet chuck tools.

Installation Notes

Installation is performed by threading the pad onto a 1/4-20 external threaded shaft by hand until snug, or by attaching a Roloc shank adapter before inserting into a collet chuck. Always power down and disconnect the tool from its air or electrical supply before mounting or removing the pad. Inspect the pad and disc for wear or damage before each use. Follow the tool and abrasive disc manufacturer speed ratings to avoid exceeding the maximum safe operating RPM.

Technical Specifications

• Disc Diameter: 3 inches
• Thread Size: 1/4-20 Internal
• Weight: 0.22 pounds
• UPC: 00051144142019
• Sold As: Each
• Minimum Order Quantity: 5

Standard Information

• Brand: 3M
• Manufacturer Part Number: 7000119312
