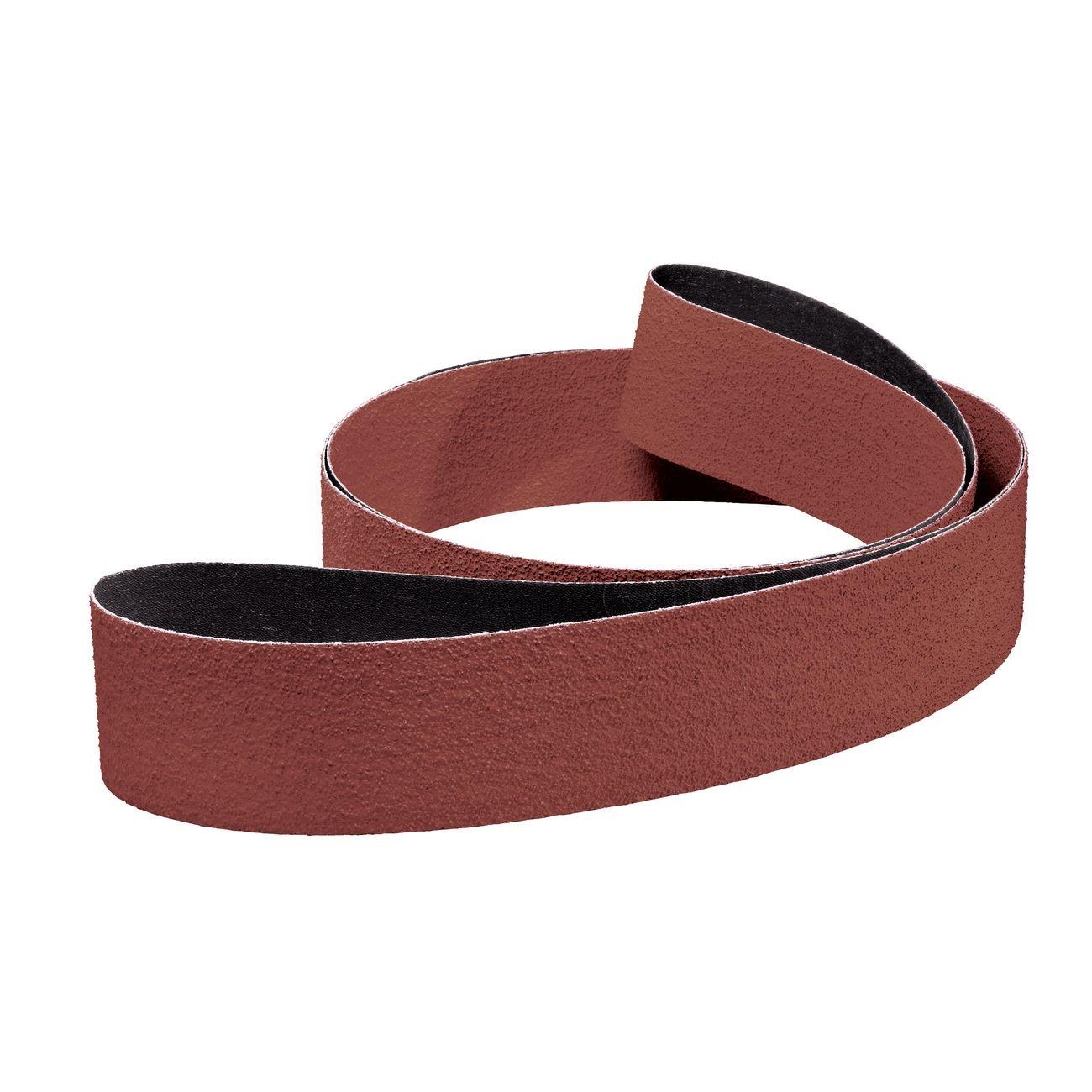

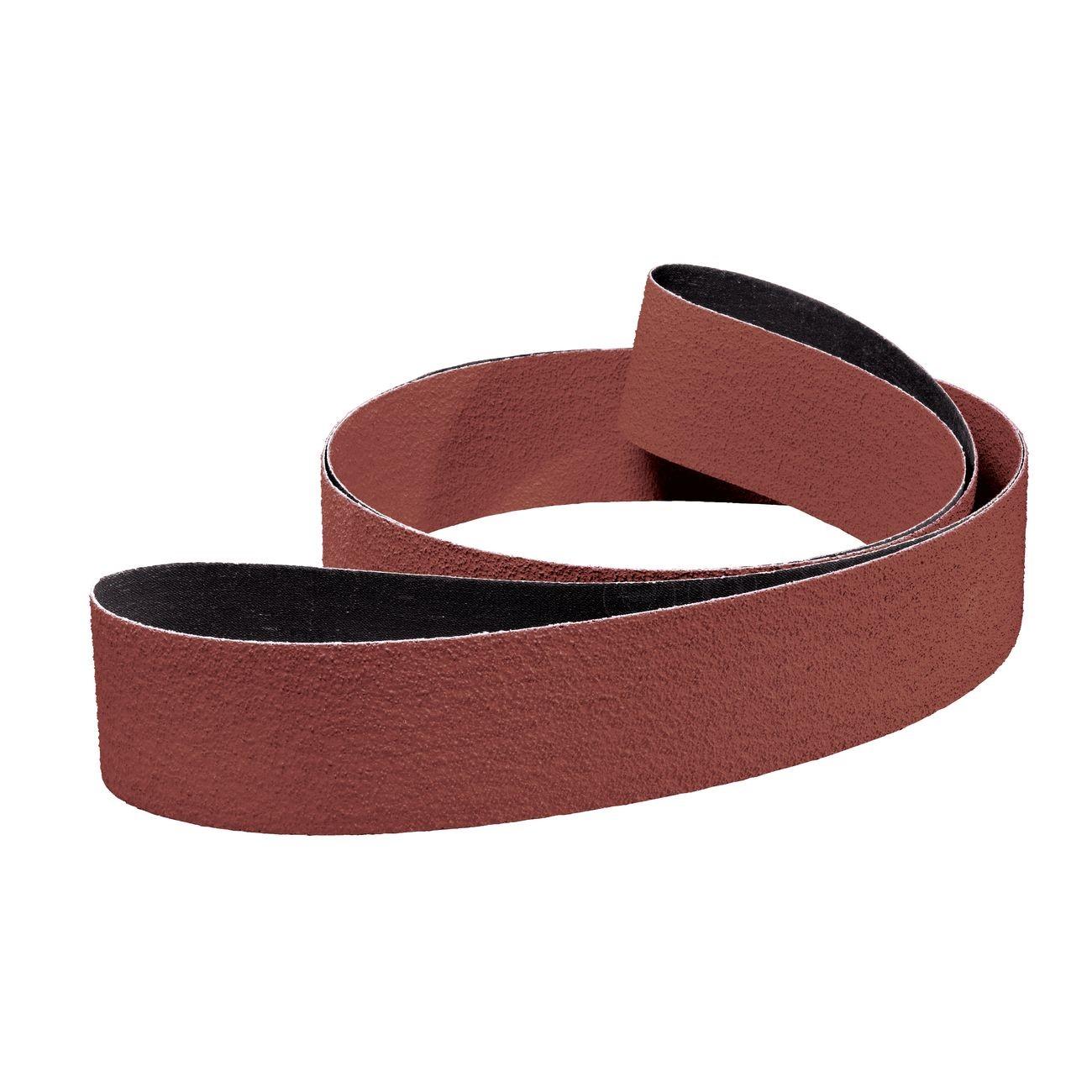

3M 7000119013 Abrasive Belt 80 Grit 48x6 Inch Ao

Product Description

The 3M 7000119013 is a coated abrasive cloth belt designed for grinding, blending, deburring, and finishing operations on metal surfaces. Built on a tough polyester backing with aluminum oxide abrasive grains bonded by a heat-resistant resin system, this belt delivers consistent cut rates across medium-pressure applications. At 48 inches long and 6 inches wide with an 80 grit rating, it is sized for backstand grinders, centerless machines, and coil finishing lines. The construction handles both wet and dry conditions, making it a reliable choice for production environments where belt life and thermal stability matter.

This belt is primarily used in metalworking and fabrication settings where consistent surface finishing on ferrous and non-ferrous metals is required. It performs well on stainless steel coil finishing lines, sheet grinding operations, and general backstand or centerless grinding applications. The 80 grit rating suits stock removal and blending tasks that call for moderate aggressiveness without sacrificing surface quality. Facilities processing stainless steel will find the heat-resistance and flexibility of the polyester cloth backing particularly well suited to high-contact-area coil work.

Key Features

• Aluminum oxide abrasive grains provide fast cut on steel, stainless steel, and other metals
• Polyester cloth backing supports consistent performance in medium-pressure grinding and blending
• Heat-resistant resin bond maintains abrasive adhesion under pressure, heat, and wet conditions
• Suitable for wet and dry applications, extending versatility across finishing environments
• Sized for backstand, centerless, and coil finishing machine configurations
• 80 grit rating appropriate for grinding, deburring, and blending passes

Compatibility

Designed for use on backstand grinders, centerless grinding machines, and coil finishing lines that accept 48 inch by 6 inch abrasive belts in medium-pressure metalworking applications.

Installation Notes

Installation is performed by machine operators or metalworking technicians following equipment manufacturer guidelines for belt tensioning and tracking. Power down and lock out the grinder or finishing machine before mounting or removing the belt. Verify belt direction of travel matches the arrow marked on the belt backing before startup. Inspect the contact wheel and platen for wear or debris that could cause uneven belt loading or premature failure.

Technical Specifications

• Abrasive Material: Aluminum Oxide
• Grit: 80
• Belt Length: 48 inches
• Belt Width: 6 inches
• Backing Type: Coated Cloth, Polyester
• Bond Type: Heat-Resistant Resin
• Application: Wet and Dry
• Weight: 0.58 pounds
• UPC: 00051125178518

Standard Information

• Brand: 3M
• Manufacturer Part Number: 7000119013
