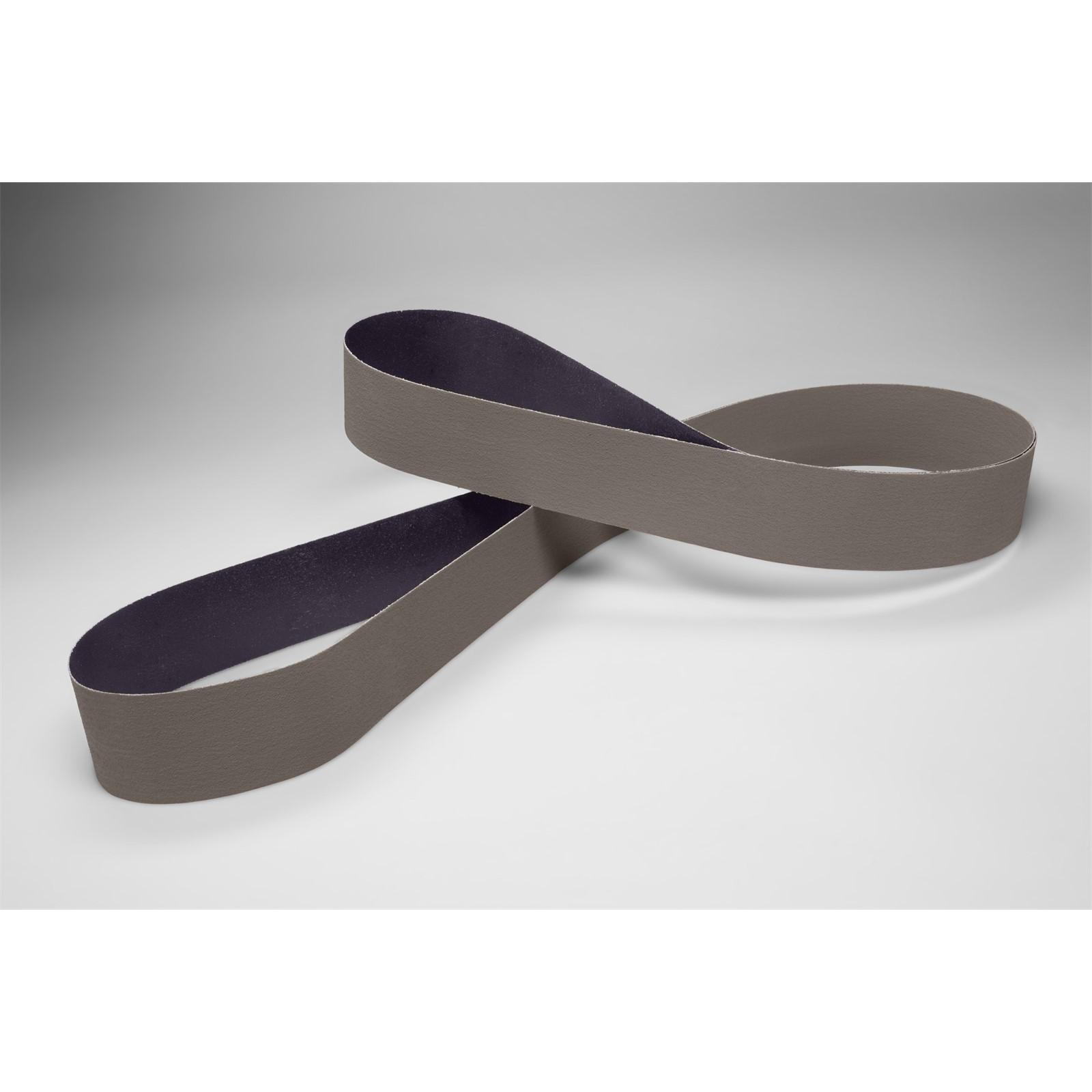

3M 7000118695 Abrasive Belt 10.688x3 Inch Ao Cloth

Product Description

The 3M 7000118695 is a Trizact 237AA abrasive belt designed for intermediate finishing and fine polishing applications. It uses 3M proprietary microreplication technology in which micron-graded aluminum oxide particles are formed into three-dimensional pyramids and bonded to an X-weight cloth backing. As the pyramids wear during use, fresh sharp mineral is continuously exposed. This produces a consistent cut rate and a predictable, uniform finish across the belt's full service life. The belt measures 10.688 inches in length and 3 inches in width. It is used by metalworking professionals and finishing technicians in both manual and robotic grinding operations.

This belt is suited for intermediate finishing and fine polishing prior to plating or buffing on metal workpieces. The flexible cloth backing conforms to contoured surfaces, making it effective for both flat and irregular profiles. The three-dimensional abrasive structure makes it particularly reliable in automated and robotic finishing lines where consistency across a production run is critical. It performs above conventional electrostatically coated abrasive belts in surface finish quality.

Key Features

• Microreplication technology forms aluminum oxide into self-sharpening abrasive pyramids that expose fresh mineral as they wear
• Runs cooler than conventional abrasives, reducing heat buildup on workpiece surfaces
• Flexible X-weight cloth backing conforms to contoured and irregular surfaces
• Three-dimensional abrasive design delivers consistent finishes throughout belt life in robotic applications
• Produces finer finishes than conventional electrostatically coated abrasive belts
• Suited for intermediate finishing and fine polishing prior to plating or buffing

Compatibility

Designed for use on standard belt finishing machines that accept a 10.688-inch by 3-inch abrasive belt in metalworking, fabrication, and precision finishing applications.

Installation Notes

Belt installation should be performed by a qualified finishing technician or machinist with the belt grinder or finishing machine powered off and locked out per applicable OSHA lockout/tagout procedures. Verify belt tracking and tension according to the machine manufacturer's specifications before resuming operation. Inspect the belt for tears or damage prior to each use and do not operate a damaged belt.

Technical Specifications

• Belt Length: 10.688 inches
• Belt Width: 3 inches
• Abrasive Mineral: Aluminum Oxide
• Backing Material: X-weight Cloth
• Color: Gray
• Weight: 0.05 pounds
• UPC: 00051115268113
• Unit of Measure: Each

Standard Information

• Brand: 3M
• Manufacturer Part Number: 7000118695
