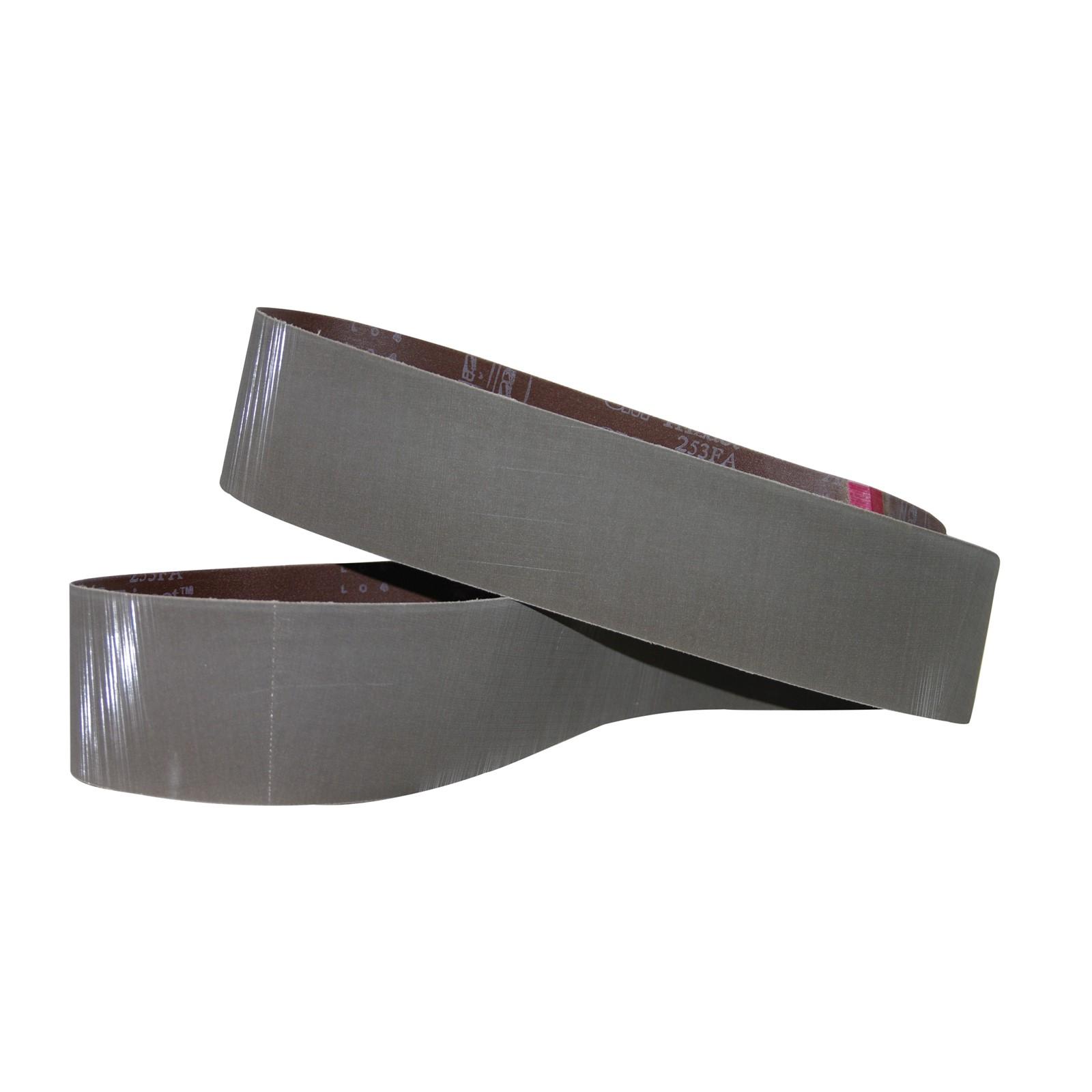

3M 7000118651 Trizact 253FA Ao Abrasive Belt 60x19 Inch

Product Description

The 3M 7000118651 is a Trizact 253FA abrasive belt engineered for flat finishing and centerless grinding applications in metalworking environments. It uses microreplicated aluminum oxide mineral bonded with a resin system onto an XF-weight polyester cloth backing that is both waterproof and durable. The XF-weight backing provides the rigidity needed for aggressive stock removal while retaining enough flexibility to conform to irregular workpiece profiles. This belt is designed for wet intermediate and fine finishing passes, making it a reliable tool for production grinding and surface conditioning work. Licensed trades and industrial metal fabricators are the primary users.

This belt is suited for wet finishing operations on a wide range of metals. Documented compatible materials include stainless steel, carbon steel, aluminum, nickel alloys, cobalt steel, copper, and brass. It is used in flat finishing and centerless applications where consistent surface finish and controlled cut rate are required across production runs. The belt is available in multiple forms and splice configurations to match different machine setups and finishing requirements.

Key Features

• Microreplicated aluminum oxide mineral provides consistent cut rate and reduces risk of uneven finishes
• XF-weight polyester cloth backing delivers durability and conformability to irregular profiles
• Waterproof backing construction supports wet intermediate and fine finishing operations
• Resin bond system holds abrasive mineral securely during aggressive metalworking passes
• Compatible with a broad range of ferrous and non-ferrous metals including stainless steel, aluminum, and copper alloys

Compatibility

Designed for use on stainless steel, carbon steel, aluminum, nickel alloys, cobalt steel, copper, and brass in flat finishing and centerless grinding machine applications.

Installation Notes

Belt installation and tensioning should be performed by a qualified operator following the abrasive machine manufacturer's specifications. Power down and lock out the machine before mounting or removing the belt. Confirm belt tracking and tension before resuming operation. Inspect the splice and backing for damage before each use and replace the belt if wear or delamination is observed.

Technical Specifications

• Abrasive Mineral: Aluminum Oxide (Microreplicated)
• Backing Material: XF-Weight Polyester Cloth
• Bond Type: Resin
• Belt Length: 60 inches
• Belt Width: 19 inches
• Backing Property: Waterproof
• Weight: 1.48 pounds
• UOM: Each
• UPC: 00051115274664

Standard Information

• Brand: 3M
• Manufacturer Part Number: 7000118651
