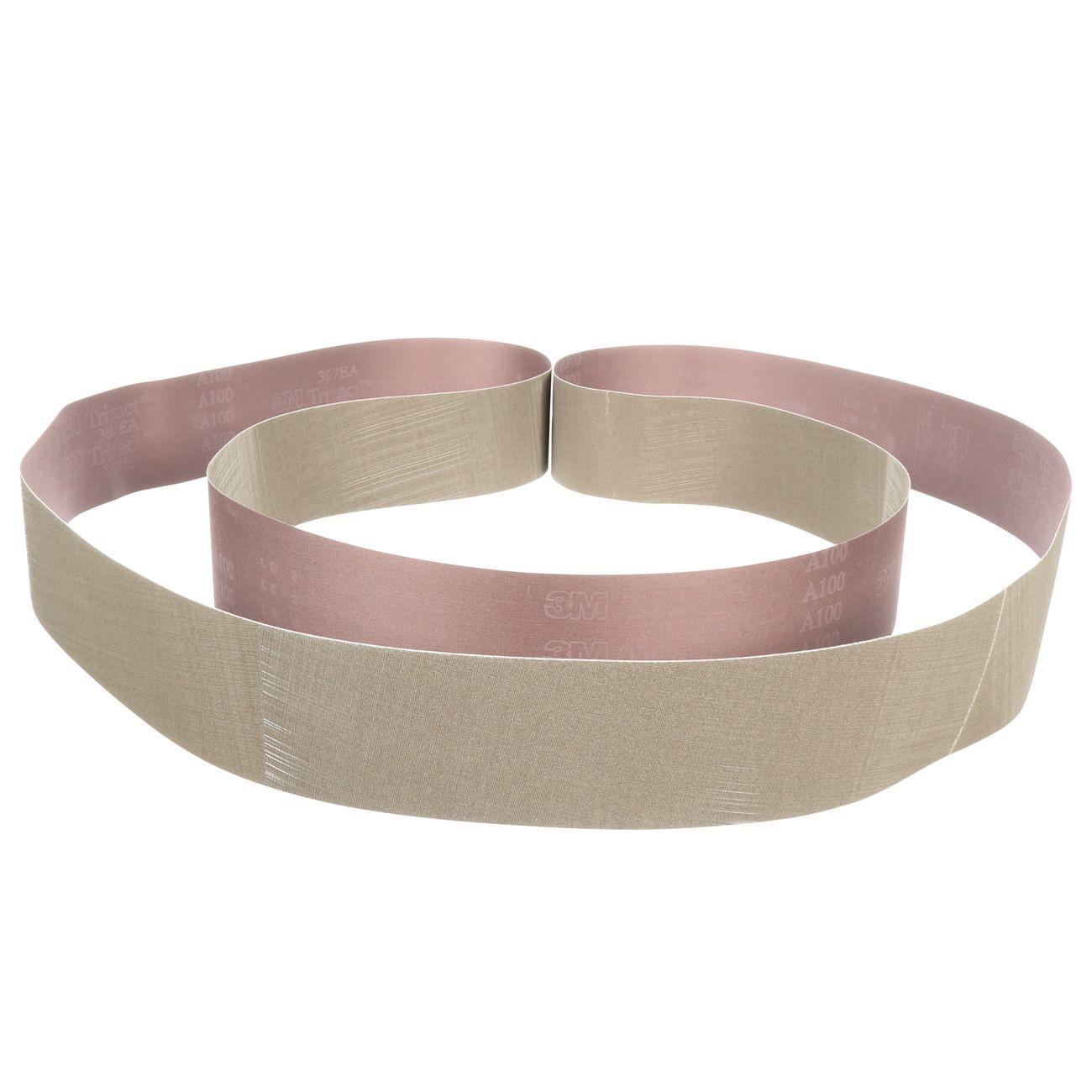

3M 7000118364 Trizact Abrasive Belt 132x3 Inch Ao Gray

Product Description

The 3M 7000118364 is a Trizact 307EA abrasive belt designed for intermediate finishing and fine polishing applications. It uses microreplication technology where micron-graded aluminum oxide particles are formed into pyramid-shaped structures bonded to a flexible rayon cloth backing. As the pyramids wear during use, fresh abrasive mineral is continuously exposed, delivering a consistent cut rate and a predictable, fine surface finish. The belt measures 132 inches in length and 3 inches in width. It is suited for industrial and automated finishing environments where repeatable results and long abrasive life are required.

This belt is commonly used in robotic and automated belt grinding or polishing lines where consistency across a full abrasive lifespan is critical. It performs well on contoured and flat workpieces prior to plating, buffing, or final surface treatment. The flexible rayon backing conforms to irregular and curved surfaces, making it appropriate for finishing operations where conventional coated abrasives leave inconsistent scratch patterns. Typical applications include metal fabrication shops, precision manufacturing, and industrial surface preparation.

Key Features

• Microreplication technology forms aluminum oxide into self-sharpening pyramids that expose fresh mineral as they wear
• Runs cooler than conventional abrasives, reducing heat buildup on workpiece surfaces
• Flexible rayon cloth backing conforms to contoured and irregular surfaces
• Three-dimensional pyramid design produces very consistent finishes throughout belt life, ideal for robotic applications
• Produces finer finishes than conventional electrostatically coated abrasive belts
• Suited for intermediate finishing and fine polishing prior to plating or buffing

Compatibility

Designed for use on belt grinding and polishing machines that accept 132 inch by 3 inch abrasive belts in industrial and automated finishing applications.

Installation Notes

Installation should be performed by qualified personnel familiar with abrasive belt equipment. Power down and lock out the belt grinder or polishing machine before changing belts. Verify belt tracking and tension according to the equipment manufacturer specifications before resuming operation. Inspect the belt and machine contact wheel or platen for wear or damage prior to each use.

Technical Specifications

• Belt Length: 132 inches
• Belt Width: 3 inches
• Abrasive Mineral: Aluminum Oxide
• Backing Material: Rayon Cloth
• Color: Gray
• Weight: 0.38 pounds
• UPC: 00051111512005

Standard Information

• Brand: 3M
• Manufacturer Part Number: 7000118364
