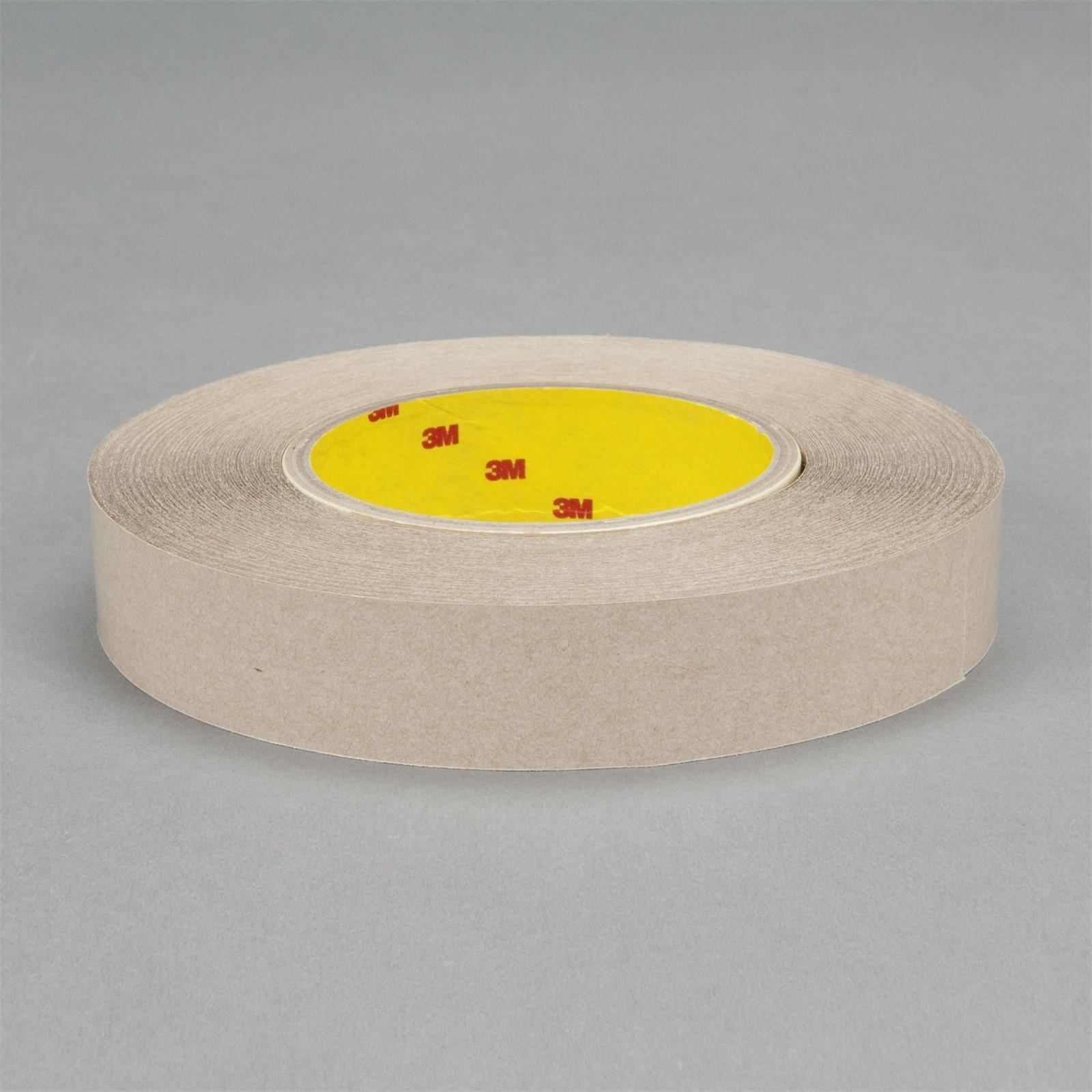

3M 7000115778 Adhesive Transfer Tape 9627 Clear 1in X 60yd

Product Description

The 3M 7000115778 is an adhesive transfer tape built on the 3M Quick Bonding Adhesive 360 platform. The tape measures 1 inch wide by 60 yards long at a total caliper of approximately 8.2 mil, combining a 5 mil adhesive layer with a 3.2 mil tan glassine paper liner. The acrylic-based transfer adhesive delivers high bond strength and fast tack on contact, making it well-suited for bonding applications that demand a thin adhesive film without a foam or film carrier. HVAC fabricators, sign manufacturers, and general assembly technicians work with this tape in both production and field settings.

This tape is appropriate for applications requiring a clean, clear adhesive transfer with no visible carrier in the finished assembly. It performs in environments where short-term heat exposure up to 350 degrees F is possible and where contact with solvents is a concern. The liner strips cleanly, allowing precise placement in both manual and semi-automated lamination processes. It is sold in roll form with a minimum order quantity of 36 rolls.

Key Features

• Quick Bonding Adhesive 360 provides high initial tack and strong final bond strength
• Short-term heat resistance up to 350 degrees F
• Excellent solvent resistance for demanding environments
• Total tape caliper of approximately 8.2 mil with a 3.2 mil tan glassine liner
• Clear adhesive transfers cleanly with no visible carrier in the bond line
• 1 inch wide by 60 yard roll format for versatile cutting and application

Compatibility

Designed as an OEM-style adhesive transfer tape for bonding light substrates in assembly, fabrication, and lamination applications where a thin, high-tack, solvent-resistant adhesive film is required.

Installation Notes

Application should be performed by a technician familiar with pressure-sensitive adhesive bonding processes. Substrates should be clean, dry, and free of oils or contaminants before tape is applied. Firm pressure should be applied across the full bond area to activate adhesion. Once the liner is removed and the adhesive contacts the substrate, repositioning is not recommended as bond strength develops rapidly.

Technical Specifications

• Total Caliper: 8.2 mil
• Adhesive Thickness: 5 mil
• Liner Thickness: 3.2 mil
• Liner Type: Tan 60 Glassine Paper
• Tape Width: 1 inch
• Tape Length: 60 yards
• Adhesive Color: Clear
• Short-Term Heat Resistance: 350 degrees F
• Weight: 0.87 pounds
• Unit of Measure: Roll
• UPC: 00051111919866

Standard Information

• Brand: 3M
• Manufacturer Part Number: 7000115778
