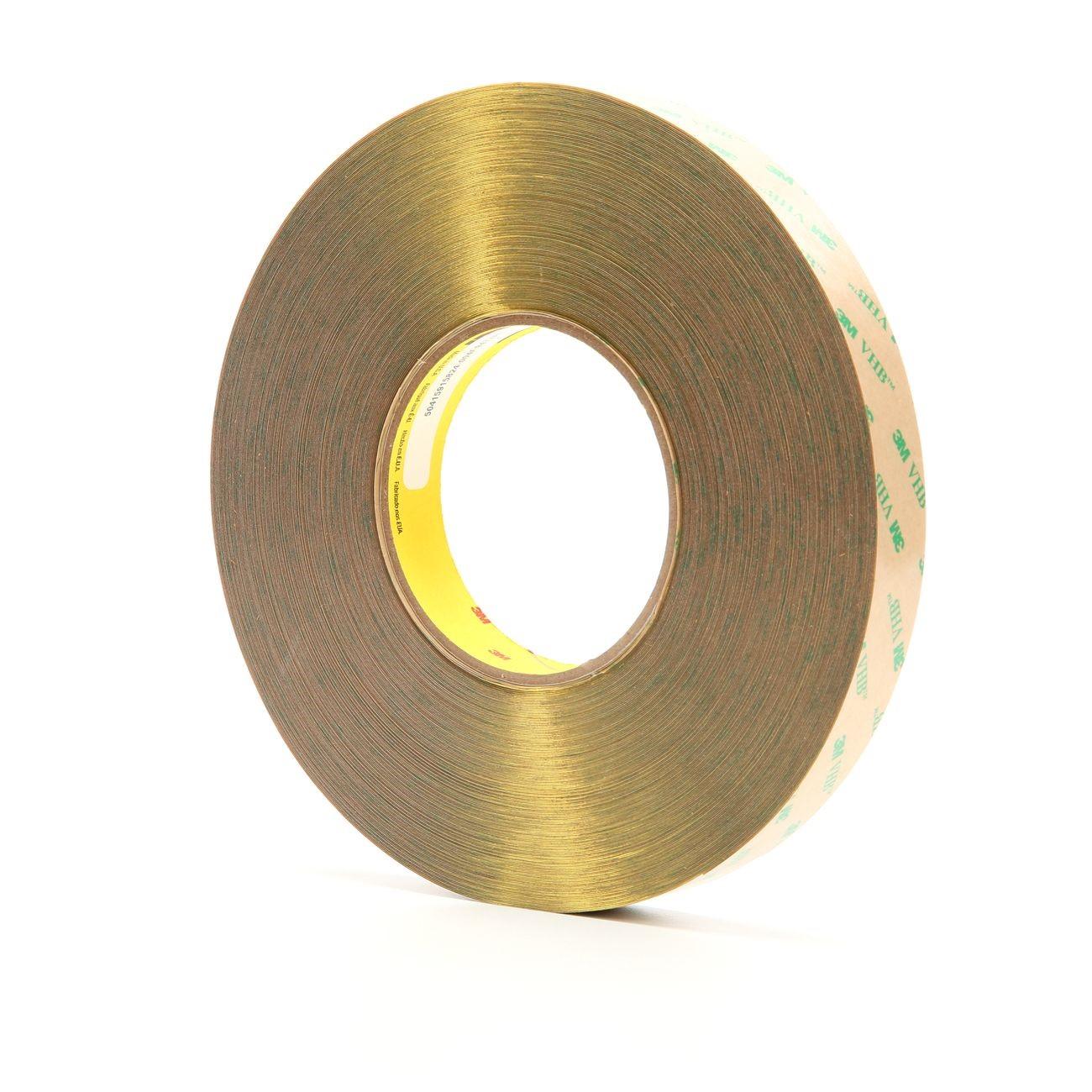

3M 7000115616 Vhb F9473PC Adhesive Transfer Tape 0.75 in

Product Description

The 3M 7000115616 is a transparent, double-sided VHB adhesive transfer tape built for high-strength bonding across a wide range of surfaces and environments. The tape uses 3M High Performance Acrylic Adhesive 100MP at a 10 mil thickness, delivering a thin profile without sacrificing holding power. It bonds quickly and maintains long-lasting adhesion under demanding conditions, including exposure to UV, chemicals, and solvents. HVAC, electrical, and general trade contractors use this tape when a clean, low-profile bond is required on assemblies where mechanical fasteners are impractical.

This adhesive transfer tape is suited for both indoor and outdoor applications where conformability to irregular surfaces is needed. The acrylic adhesive system handles short-term temperature exposure up to 500 degrees F and continuous operating temperatures up to 300 degrees F, making it appropriate for installations near heat-generating equipment. The tape ships on a 58-pound polycoated kraft paper liner printed with 3M VHB branding for easy identification and handling. It is sold individually and commonly used in panel bonding, gasket attachment, and component mounting across HVAC, electrical, and light fabrication work.

Key Features

• 10 mil thickness with transparent appearance for low-profile, clean installations
• 3M High Performance Acrylic Adhesive 100MP for fast, durable bonding
• Short-term temperature tolerance up to 500 degrees F (260 degrees C)
• Operating temperature tolerance up to 300 degrees F (149 degrees C)
• Resistant to UV, chemicals, and solvents for outdoor and harsh-environment use
• Conforms to a wide variety of surfaces for both indoor and outdoor applications

Compatibility

Designed as an OEM-style adhesive transfer solution for general bonding applications across HVAC panel assemblies, electrical enclosures, and light fabrication where a high-strength, thin-profile tape is required.

Installation Notes

Surface preparation is critical before applying VHB adhesive transfer tape — clean bonding surfaces thoroughly and allow them to dry completely. Apply firm, even pressure across the tape after positioning to ensure full contact and adhesion. Avoid stretching the tape during application, as this can reduce bond strength. Consult 3M application guidelines and any applicable local codes when using adhesive tape as a structural or sealing element in trade installations.

Technical Specifications

• Tape Type: Adhesive Transfer Tape
• Adhesive: 3M High Performance Acrylic Adhesive 100MP
• Thickness: 10 mil (0.26 mm)
• Width: 0.75 inches
• Short-Term Temperature Tolerance: 500 degrees F (260 degrees C)
• Operating Temperature Tolerance: 300 degrees F (149 degrees C)
• Appearance: Transparent
• Liner: 58 polycoated kraft paper
• Weight: 0.9 pounds
• Package Dimensions: 8.3 x 8.3 x 11.6 inches
• UPC: 00021200139734

Standard Information

• Brand: 3M
• Manufacturer Part Number: 7000115616
