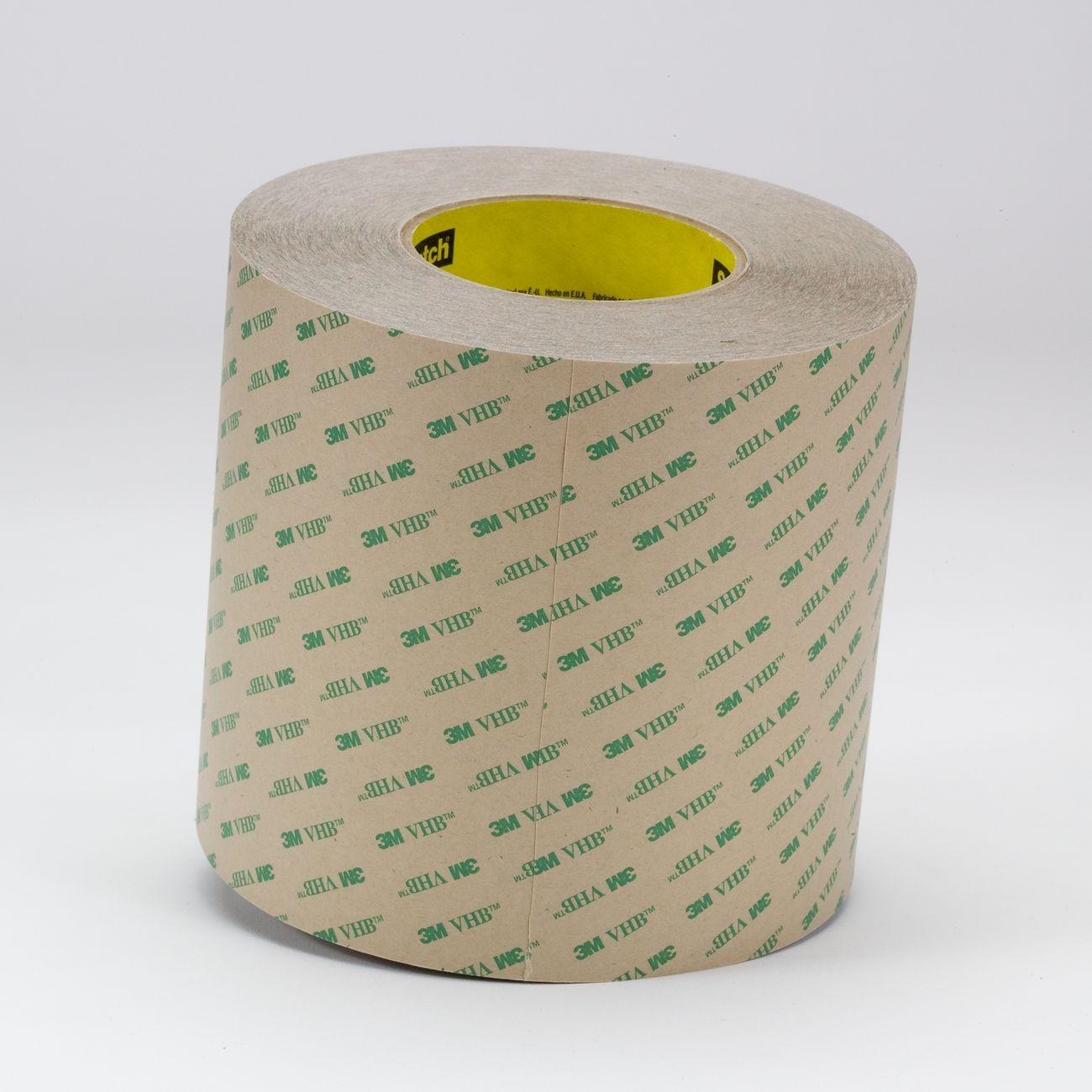

3M 7000115615 Vhb F9473PC Adhesive Transfer Tape 1 in

Product Description

The 3M 7000115615 is a transparent, double-sided adhesive transfer tape built on the VHB F9473PC platform. At 10 mil thick, it uses 3M High Performance Acrylic Adhesive 100MP to deliver strong, long-lasting bonds across a wide range of surfaces. The thin profile allows the tape to conform tightly to irregular or curved substrates without adding visible bulk. It is designed for trade and industrial installers who need a fast, reliable bonding solution that resists UV exposure, solvents, and common chemicals. The adhesive liner is a 58-pound polycoated kraft paper printed with VHB branding for easy identification during application.

This tape is suited for both indoor and outdoor applications where a clean, transparent bond line is required. Common use cases include mounting, splicing, laminating, and attaching panels or nameplates in HVAC equipment assemblies, electrical enclosures, and light commercial construction. The operating temperature tolerance of up to 300 degrees F and a short-term peak tolerance of up to 500 degrees F make it viable in environments with elevated heat exposure. It ships in roll form with a minimum order quantity of 36 rolls per case.

Key Features

• 10 mil thickness with high-strength acrylic adhesive for a thin, strong bond profile
• Short-term temperature tolerance up to 500 degrees F (260 degrees C)
• Operating temperature tolerance up to 300 degrees F (149 degrees C)
• Resistant to UV light, solvents, and common chemicals
• Conforms to irregular surfaces for indoor and outdoor use
• 58-pound polycoated kraft paper liner for controlled, clean release

Compatibility

Designed as an OEM-style adhesive transfer solution for bonding, mounting, and laminating applications across a broad range of substrates in industrial, commercial, and trade settings.

Installation Notes

Surface preparation is critical — clean and dry the substrate before applying the tape to ensure full adhesive contact. Remove the liner carefully and apply firm, even pressure across the entire bond area to activate adhesion. In electrical or HVAC panel environments, de-energize equipment before working in proximity to live components. Follow applicable codes and manufacturer guidance for any structural or safety-critical bonding applications.

Technical Specifications

• Thickness: 10 mil (0.26 mm)
• Width: 1 inch
• Adhesive Type: High Performance Acrylic Adhesive 100MP
• Operating Temperature: Up to 300 degrees F (149 degrees C)
• Short-Term Temperature Tolerance: Up to 500 degrees F (260 degrees C)
• Color: Transparent
• Liner: 58-pound polycoated kraft paper
• Unit of Measure: Roll
• Package Dimensions: 9.6 x 9.6 x 10 inches
• Weight: 5 pounds
• UPC: 021200158761

Standard Information

• Brand: 3M
• Manufacturer Part Number: 7000115615
