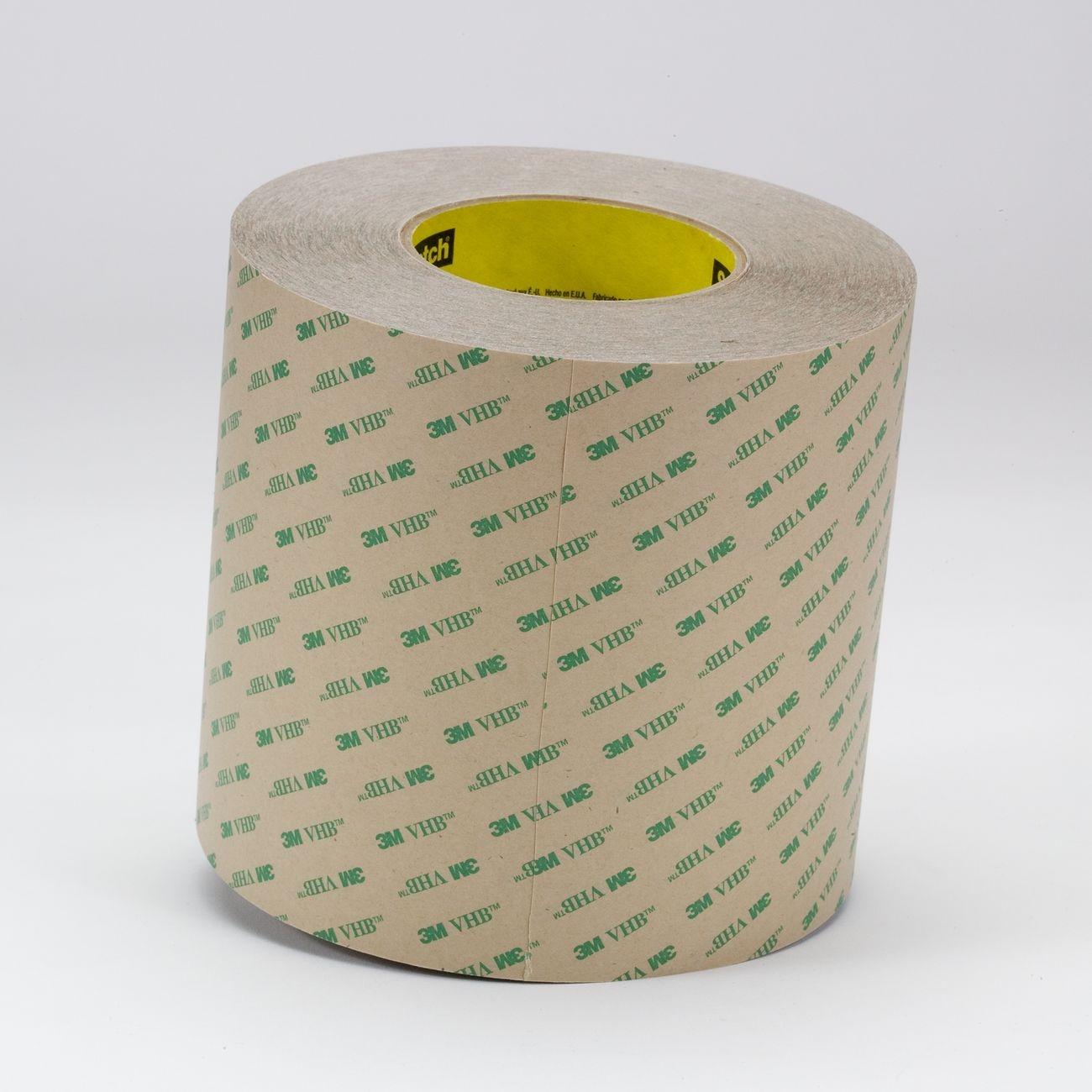

3M 7000115609 Vhb F9473PC Adhesive Transfer Tape 2 in

Product Description

The 3M 7000115609 is a VHB F9473PC adhesive transfer tape designed for demanding bonding applications across industrial, commercial, and trade environments. At 10 mil thickness, it uses 3M High Performance Acrylic Adhesive 100MP to deliver exceptional holding power with a thin, low-profile bond line. The transparent construction keeps joints visually clean. It handles an operating temperature of up to 300 degrees F and a short-term temperature tolerance of up to 500 degrees F. Technicians and installers in HVAC, electrical, and mechanical trades use this tape where a fast, durable, double-sided bond is required without adding significant thickness to an assembly.

This tape conforms to a wide range of indoor and outdoor applications. Its acrylic adhesive is resistant to chemicals, UV exposure, and solvents, making it suitable for use in equipment enclosures, panel assemblies, duct insulation facing, and general fabrication work. The 2-inch width rolls are commonly used where a consistent bond width is needed along seams or mounting surfaces. The 58 polycoated kraft paper liner is printed with 3M VHB branding for easy identification in the shop or field.

Key Features

• 10 mil VHB acrylic transfer tape with transparent, double-sided construction
• High Performance Acrylic Adhesive 100MP for long-lasting, high-strength bonds
• Operating temperature tolerance up to 300 degrees F; short-term tolerance up to 500 degrees F
• Resistant to chemicals, UV, and solvents for indoor and outdoor use
• 58 polycoated kraft paper liner for clean, controlled application
• 2-inch width for consistent coverage along seams and mounting surfaces

Compatibility

Designed for use across a broad range of industrial and commercial bonding applications where a thin, high-strength acrylic transfer tape is required on smooth or lightly textured substrates.

Installation Notes

Surface preparation is critical before application — clean and dry the substrate to remove oils, dust, and contaminants for maximum adhesion. Apply firm, even pressure across the full bond area after positioning. Once the liner is removed and the adhesive contacts the substrate, repositioning is not recommended. Follow the manufacturer guidance for minimum application temperature to ensure proper adhesive wet-out.

Technical Specifications

• Adhesive Type: High Performance Acrylic Adhesive 100MP
• Tape Thickness: 10 mil (0.26 mm)
• Width: 2 inches
• Color: Transparent
• Operating Temperature: Up to 300 degrees F (149 degrees C)
• Short-Term Temperature Tolerance: Up to 500 degrees F (260 degrees C)
• Liner: 58 polycoated kraft paper
• Package Dimensions: 8.3 x 8.3 x 14.3 inches
• Weight: 3.08 pounds
• UOM: Each
• UPC: 00021200393594

Standard Information

• Brand: 3M
• Manufacturer Part Number: 7000115609
