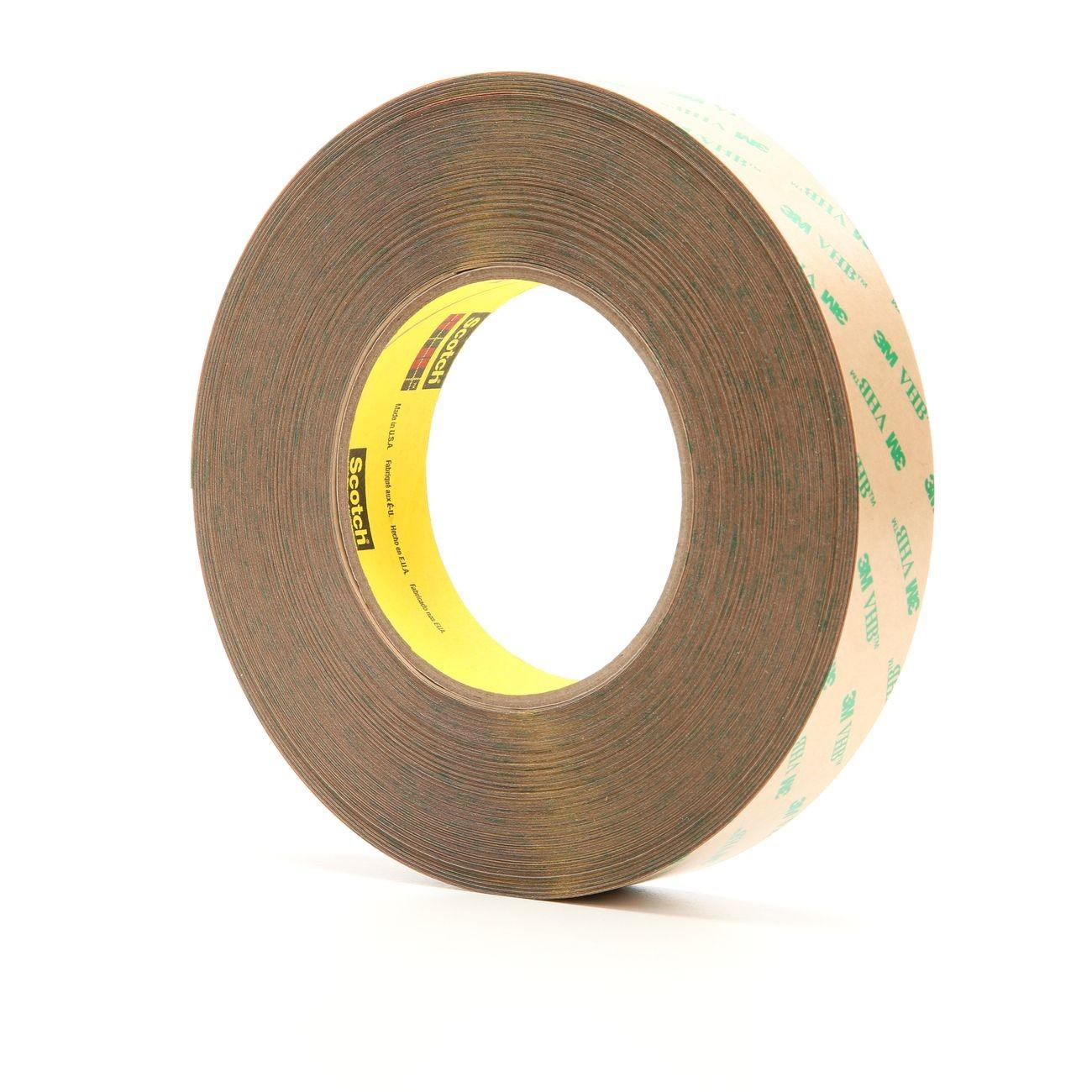

3M 7000115598 Vhb F9469PC Adhesive Transfer Tape 1 in 5 Mil

Product Description

The 3M 7000115598 is a VHB F9469PC adhesive transfer tape designed for bonding applications that demand a thin profile and high-strength hold. At 5.0 mil total thickness, it uses 3M High Performance Acrylic Adhesive 100MP on a 58-lb polycoated kraft paper liner. The result is a transparent, double-sided transfer tape that delivers long-lasting adhesion across a wide range of surfaces. It handles an operating temperature up to 300 degrees F and a short-term peak up to 500 degrees F. The roll width is 1 inch. HVAC fabricators, sign installers, and industrial assembly techs are the primary installers.

This tape suits both indoor and outdoor applications where a nearly invisible bond line is required. The transparent adhesive film conforms to irregular or curved surfaces, making it practical for metal, glass, plastics, and painted substrates. It is well suited for panel assembly, nameplate attachment, gasket bonding, and trim work on HVAC equipment enclosures or similar fabricated assemblies. Its resistance to UV, solvents, and common chemicals makes it appropriate for environments where surface exposure is a concern.

Key Features

• 5.0 mil (0.13 mm) VHB acrylic adhesive transfer tape with transparent appearance
• Operating temperature tolerance up to 300 degrees F (149 degrees C)
• Short-term temperature tolerance up to 500 degrees F (260 degrees C)
• Chemical, UV, and solvent resistant adhesive for durable outdoor and indoor use
• Conforms to varied surfaces including curves and irregular profiles
• 58-lb polycoated kraft paper liner for clean, consistent release

Compatibility

Designed as an OEM-style adhesive transfer tape suitable for bonding applications on metal, glass, plastics, and painted surfaces in industrial, HVAC, and general assembly environments.

Installation Notes

Surface preparation is critical — clean bonding surfaces with an appropriate solvent cleaner and allow them to dry fully before application. Apply firm, even pressure along the tape length to ensure full adhesive contact. Remove the liner carefully to avoid stretching the adhesive film. No special tools are required, but a roller applicator improves consistency on long runs.

Technical Specifications

• Thickness: 5.0 mil (0.13 mm)
• Width: 1 inch
• Operating Temperature: up to 300 degrees F (149 degrees C)
• Short-Term Temperature Tolerance: up to 500 degrees F (260 degrees C)
• Adhesive Type: High Performance Acrylic Adhesive 100MP
• Appearance: Transparent
• Liner: 58-lb polycoated kraft paper
• Unit of Measure: Roll
• Package Weight: 0.82 pounds
• Package Dimensions: 13.9 x 13.9 x 11.3 inches
• UPC: 00021200139710

Standard Information

• Brand: 3M
• Manufacturer Part Number: 7000115598
