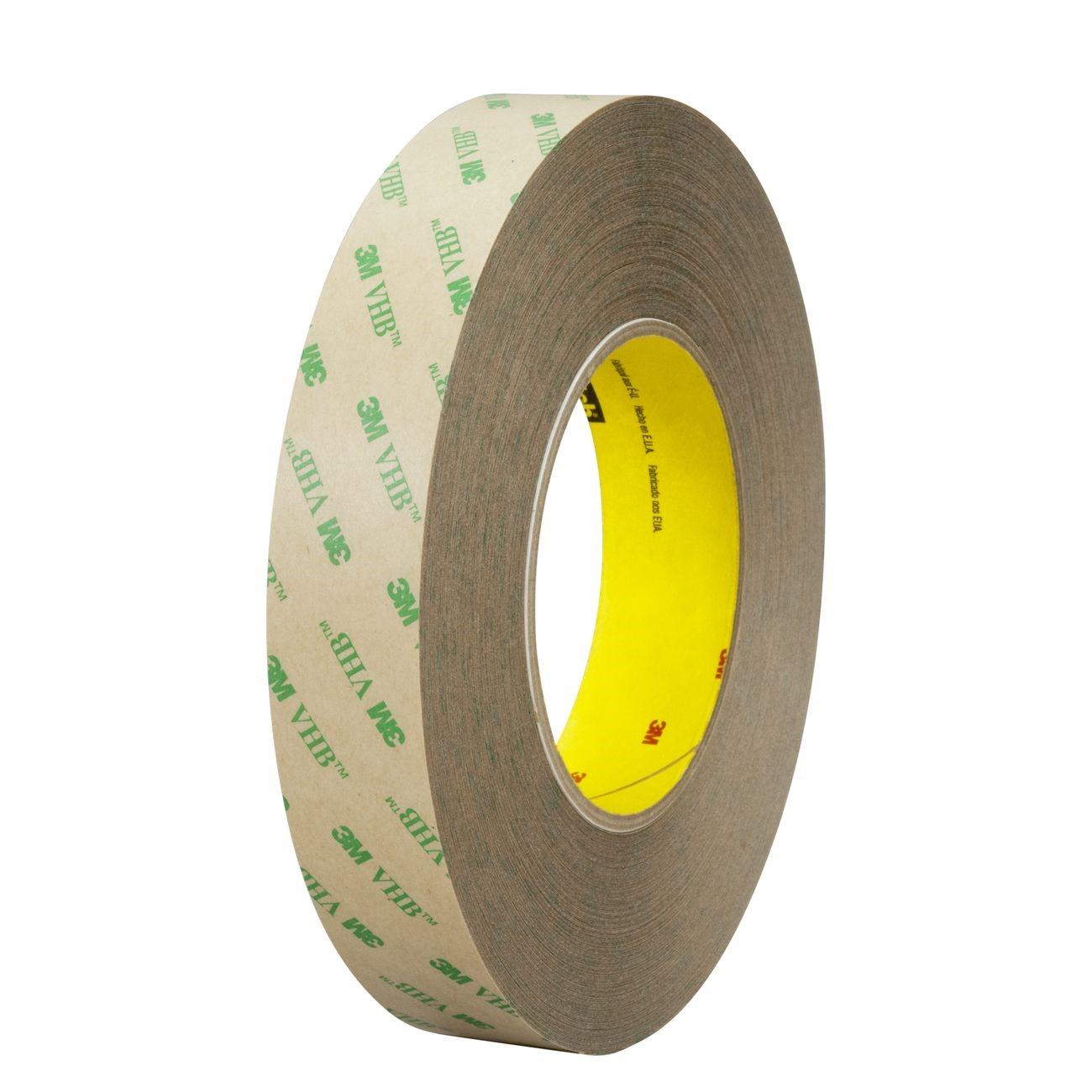

3M 7000115597 Vhb F9469PC Adhesive Transfer Tape 0.5 in

Product Description

The 3M 7000115597 is a VHB F9469PC adhesive transfer tape designed for applications requiring a thin, transparent, double-sided bond. Built on a 5.0 mil High Performance Acrylic Adhesive 100MP construction, this transfer tape delivers exceptional holding power with a low-profile footprint. It conforms to irregular surfaces and maintains adhesion across a wide range of indoor and outdoor conditions. Licensed HVAC, plumbing, and general trade contractors use adhesive transfer tapes like this for panel bonding, gasket attachment, and component mounting where mechanical fasteners are impractical.

This tape suits both indoor and outdoor installations where a clean, invisible bond line is required. Its acrylic adhesive resists UV exposure, chemicals, and solvents, making it appropriate for environments with exposure to cleaning agents or direct sunlight. The roll format and ease of application support production-level workflows. A 58-lb polycoated kraft paper liner protects the adhesive surface until the moment of application.

Key Features

• 5.0 mil VHB acrylic adhesive construction provides a thin profile with high bond strength
• Short-term temperature tolerance up to 500 degrees F (260 degrees C)
• Operating temperature tolerance up to 300 degrees F (149 degrees C)
• Resistant to UV, chemicals, and solvents for durable long-term adhesion
• Transparent tape allows invisible bond lines on finished surfaces
• Polycoated kraft paper liner protects adhesive during handling and storage

Compatibility

Designed as a general-purpose adhesive transfer tape suitable for bonding a wide variety of substrates in indoor and outdoor applications where a thin, high-strength acrylic adhesive is required.

Installation Notes

Clean and dry all bonding surfaces thoroughly before application — contamination is the leading cause of adhesive bond failure. Apply firm, even pressure across the full tape surface after placement to ensure full contact and initial adhesion. Allow adequate dwell time before loading the bond. Remove the liner carefully to avoid stretching or contaminating the adhesive layer.

Technical Specifications

• Adhesive Type: High Performance Acrylic 100MP
• Tape Thickness: 5.0 mil
• Width: 0.5 inches
• Short-Term Temperature Tolerance: 500 degrees F (260 degrees C)
• Operating Temperature Tolerance: 300 degrees F (149 degrees C)
• Finish: Transparent
• Liner: 58-lb polycoated kraft paper
• Unit of Measure: Roll
• Weight: 0.39 pounds
• Package Length: 13.8 inches
• Package Width: 13.8 inches
• Package Height: 11.3 inches

Standard Information

• Brand: 3M
• Manufacturer Part Number: 7000115597
