3M 7000100853 Conductive Cushioning Gasket Tape 500mm X 50m

Product Description

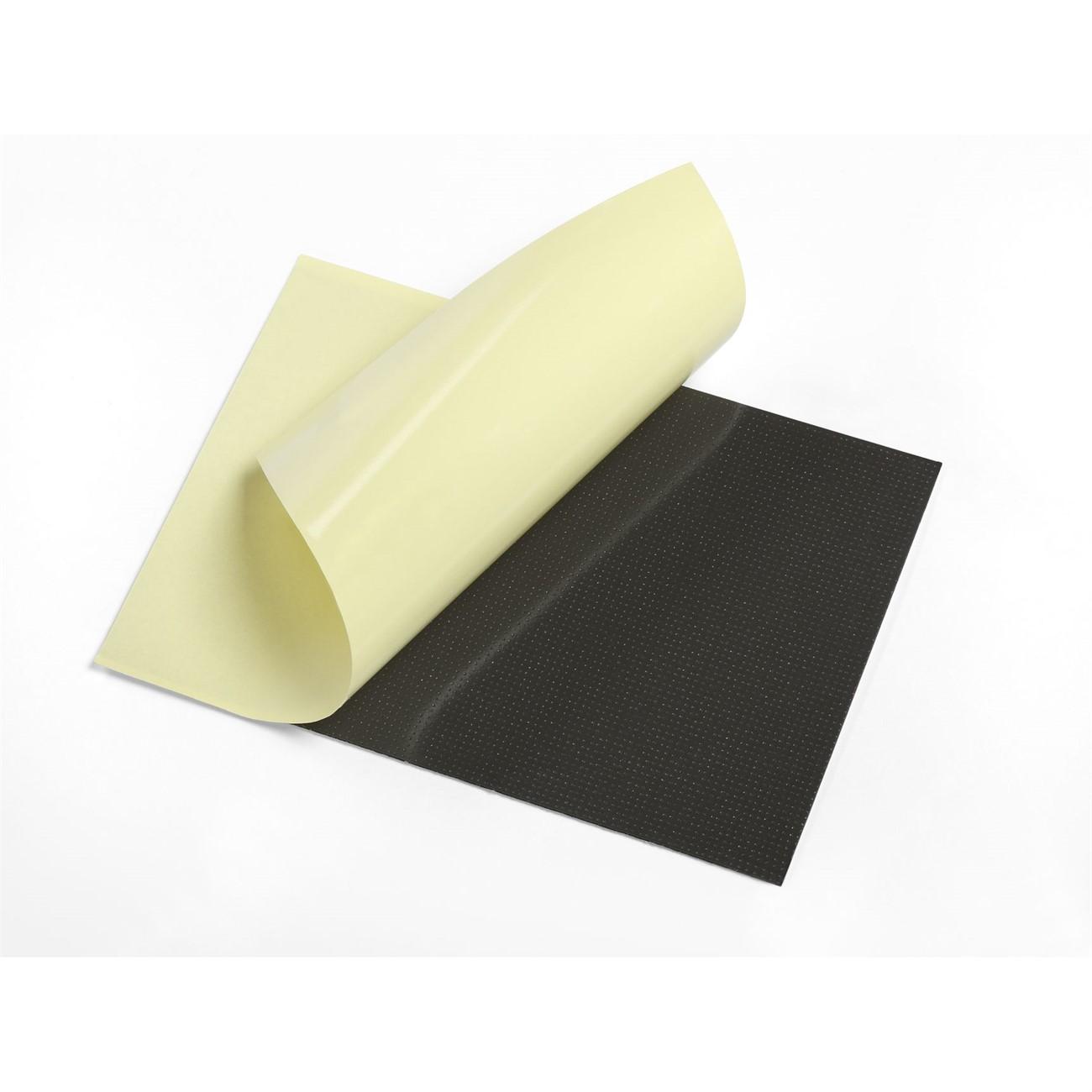

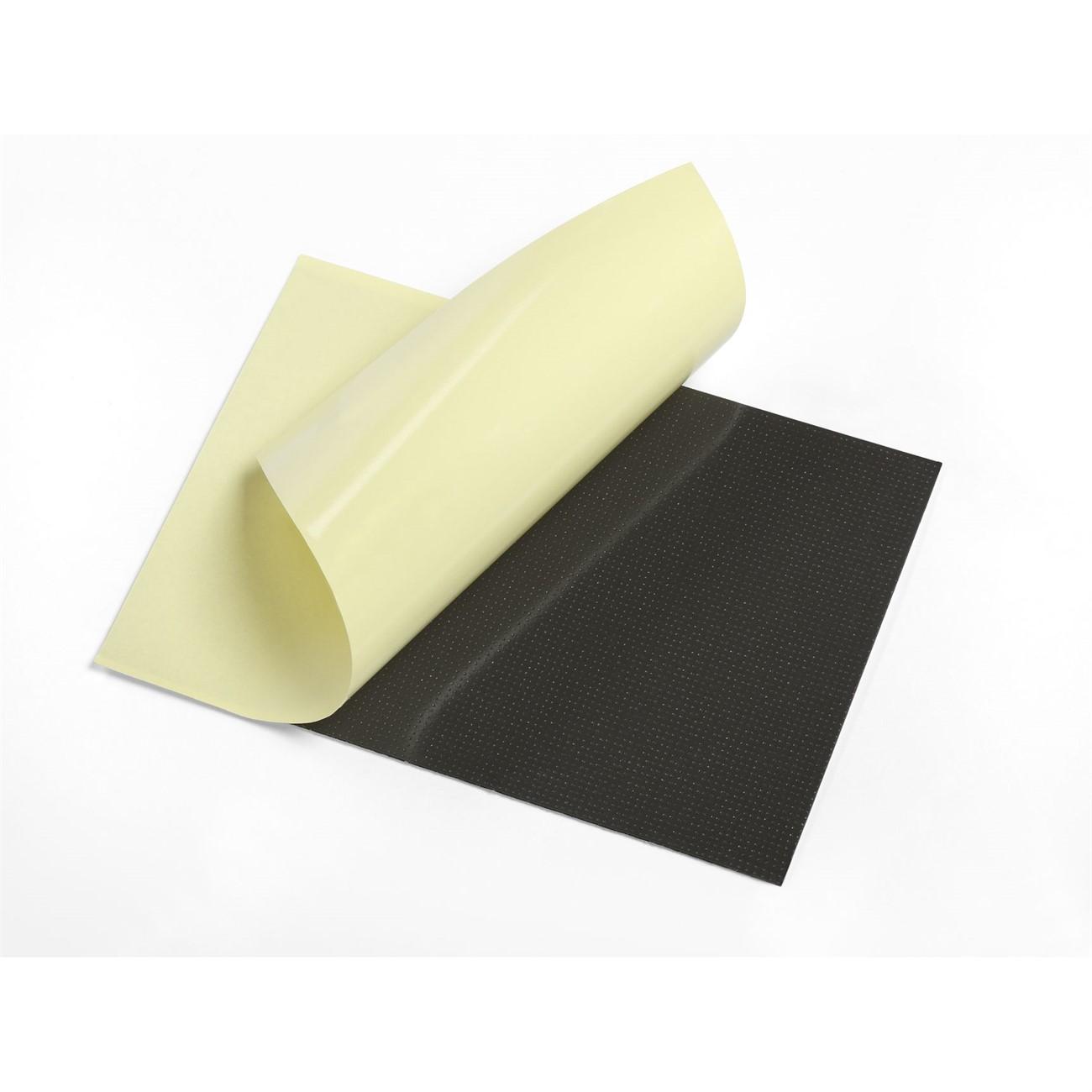

The 3M 7000100853 is an electrically conductive cushioning gasket tape, sold under the ECG-8075H product line, designed for EMI shielding and grounding applications where both electrical conductivity and mechanical compliance are required. Supplied in a double-coated tape format, it delivers reliable electrical conductivity across its thickness while providing excellent cushion and recovery properties to maintain consistent contact pressure against mating surfaces. Each roll measures 500mm wide by 50 meters long with a 0.75mm nominal thickness. This product is typically installed by electronics assembly technicians and field service professionals working on shielded enclosures, control panels, and equipment housings.

This gasket tape is suited for applications that require continuous EMI/RFI sealing along cabinet seams, panel joints, and enclosure lids. Its double-coated format allows it to bond to a substrate while maintaining a conductive interface with the opposing surface. Typical use scenarios include industrial control enclosures, telecommunications equipment housings, and electronic device assembly where compressible conductive sealing is required. The roll format supports both cut-to-length field application and automated dispense in production environments.

Key Features

• Double-coated tape format provides adhesion on both faces for secure substrate bonding
• Electrically conductive construction supports EMI and RFI shielding continuity
• Cushion and recovery properties maintain consistent contact pressure over mating surfaces
• 0.75mm nominal thickness accommodates typical enclosure gap tolerances
• Large-format roll (500mm x 50m) minimizes splices in long sealing runs

Compatibility

Designed as an OEM-style conductive gasket tape for use on metal enclosures, shielded panels, and equipment housings requiring compressible EMI sealing at joints and seams.

Installation Notes

Installation is typically performed by electronics technicians or panel assembly professionals. De-energize all equipment before applying or removing conductive gasket tape from live enclosures. Clean and degrease the mounting surface before application to ensure full adhesive contact. Avoid stretching the tape during application, as this can alter thickness and compromise consistent electrical contact across the sealed joint.

Technical Specifications

• Roll Width: 500mm
• Roll Length: 50 meters
• Thickness: 0.75mm
• Format: Roll
• Package Length: 21.8 inches
• Package Width: 11.7 inches
• Package Height: 11.7 inches
• Weight: 100.51 pounds
• Minimum Order Quantity: 1
• UPC: 00051115529382

Standard Information

• Brand: 3M
• Manufacturer Part Number: 7000100853
