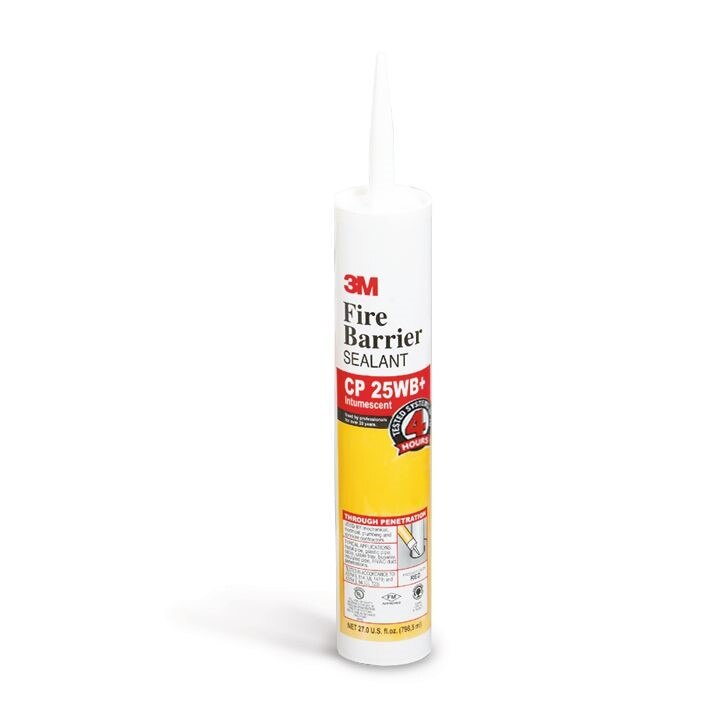

3M 7000059394 Fire Barrier Sealant Cp 25WB+ 27 Oz

Product Description

The 3M 7000059394 is a latex-based intumescent firestop sealant designed to seal penetrations through fire-rated construction assemblies. When properly installed in tested and listed systems, it provides up to 4-hour fire protection. The sealant is water-based, requires no mixing, and dries to a red color for easy visual inspection. It helps prevent the spread of fire, smoke, and noxious gases through wall and floor penetrations. This product is installed by licensed firestop contractors, journeyman electricians, plumbers, and mechanical contractors working on commercial or multi-family residential construction.

This sealant is applied in fire-rated wall and floor assemblies where pipes, conduit, cable trays, ducts, and other building system components penetrate fire-rated barriers. It is suited for both new construction and retrofit applications. The product meets International Building Code requirements and other key life safety building code standards. It also meets the intent of LEED VOC environmental regulations, making it appropriate for green building projects. When installed in an STC 54-rated wall assembly, it achieves an STC rating of 54, providing an acoustic barrier that minimizes noise transfer between occupied spaces.

Key Features

• Provides up to 4-hour fire protection in tested and listed firestop systems
• Intumescent formula expands under heat to seal penetrations against fire and smoke
• Dries to red color for visual verification of installed firestop locations
• Achieves STC rating of 54 when tested in a compatible STC 54-rated wall assembly
• Helps create a smoke seal for systems requiring an optional L-Rating
• Meets IBC requirements and LEED VOC environmental regulations
• No mixing required — ready to apply directly from the cartridge

Compatibility

Designed for use in tested and listed firestop systems where pipes, conduit, cables, and mechanical penetrations pass through fire-rated wall and floor assemblies in commercial and residential construction.

Installation Notes

Installation must be performed in accordance with the specific tested and listed system design documentation. Follow all applicable requirements under the International Building Code and local fire codes. The substrate and penetrating items must be clean and free of dust, oil, and loose material before application. Do not apply over wet surfaces or in conditions that will prevent proper cure.

Technical Specifications

• Fire Rating: Up to 4 hours (in tested and listed systems)
• STC Rating: 54 (tested in STC 54-rated wall assembly)
• Base Formula: Latex-based intumescent
• Cured Color: Red
• Container Type: Cartridge
• Volume: 27 fl oz
• Weight: 2.83 pounds
• Mixing Required: No
• VOC Compliance: Meets LEED VOC environmental regulations
• Code Compliance: International Building Code (IBC)

Standard Information

• Brand: 3M
• Manufacturer Part Number: 7000059394
