3M 7000058827 Direct Bury Splice Kit 18-10 Awg

Product Description

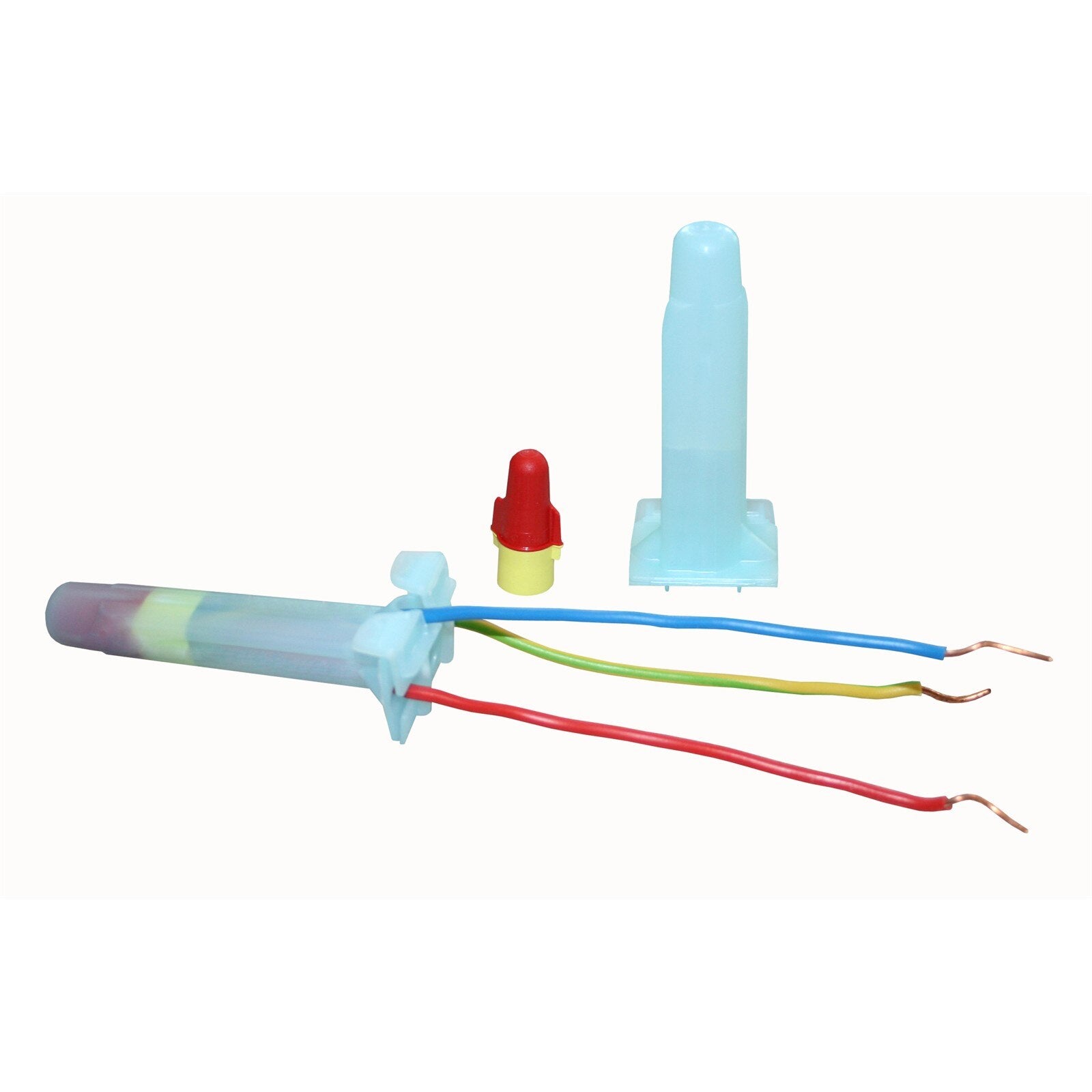

The 3M 7000058827 is a direct bury splice kit designed to electrically connect and moisture-seal wire with thicker insulation in underground applications. Each kit includes a 3M Spring Connector R/Y+ and a high-impact, UV-resistant tube prefilled with moisture-resistant grease. The assembly creates a weatherproof, moisture-sealed splice rated for 600 volts, making it suitable for buried conductor connections in landscape lighting, irrigation controls, and low-voltage underground wiring systems. Licensed electricians and irrigation technicians are the primary installers. Wire range is 18 to 10 AWG, and each kit contains 2 splices.

This splice kit is suited for direct bury wiring applications where moisture intrusion is a concern, such as underground feeder runs, irrigation system wiring, and outdoor low-voltage conductor splices. The prefilled grease tube eliminates the need for a separate sealant during installation. UL-listed for direct bury service. Sold as individual kits; minimum order quantity is 25 kits per shipper.

Key Features

• Rated 600V for direct bury underground wiring applications
• Includes 3M Spring Connector R/Y+ and prefilled moisture-resistant grease tube
• High-impact, UV-resistant outer tube protects the splice from environmental damage
• Covers wire range 18 to 10 AWG with thicker insulation wire
• UL-listed for direct bury service
• 2 splices included per kit

Compatibility

Designed for direct bury splice applications on 18 to 10 AWG conductors with thicker insulation, typical in underground irrigation, landscape lighting, and low-voltage feeder wiring installations.

Installation Notes

Installation is typically performed by a licensed electrician or qualified irrigation technician. De-energize the circuit completely before making any splice connections. Follow local electrical codes and NEC requirements for direct bury wiring depth and conductor protection. Do not reuse the grease-filled tube once the seal has been broken.

Technical Specifications

• Wire Range: 18-10 AWG
• Voltage Rating: 600 volts
• Splices per Kit: 2
• Listing: UL-listed for direct bury
• Tube Material: High-impact, UV-resistant
• Weight: 0.11 pounds
• UPC: 10051128585730

Standard Information

• Brand: 3M
• Manufacturer Part Number: 7000058827
