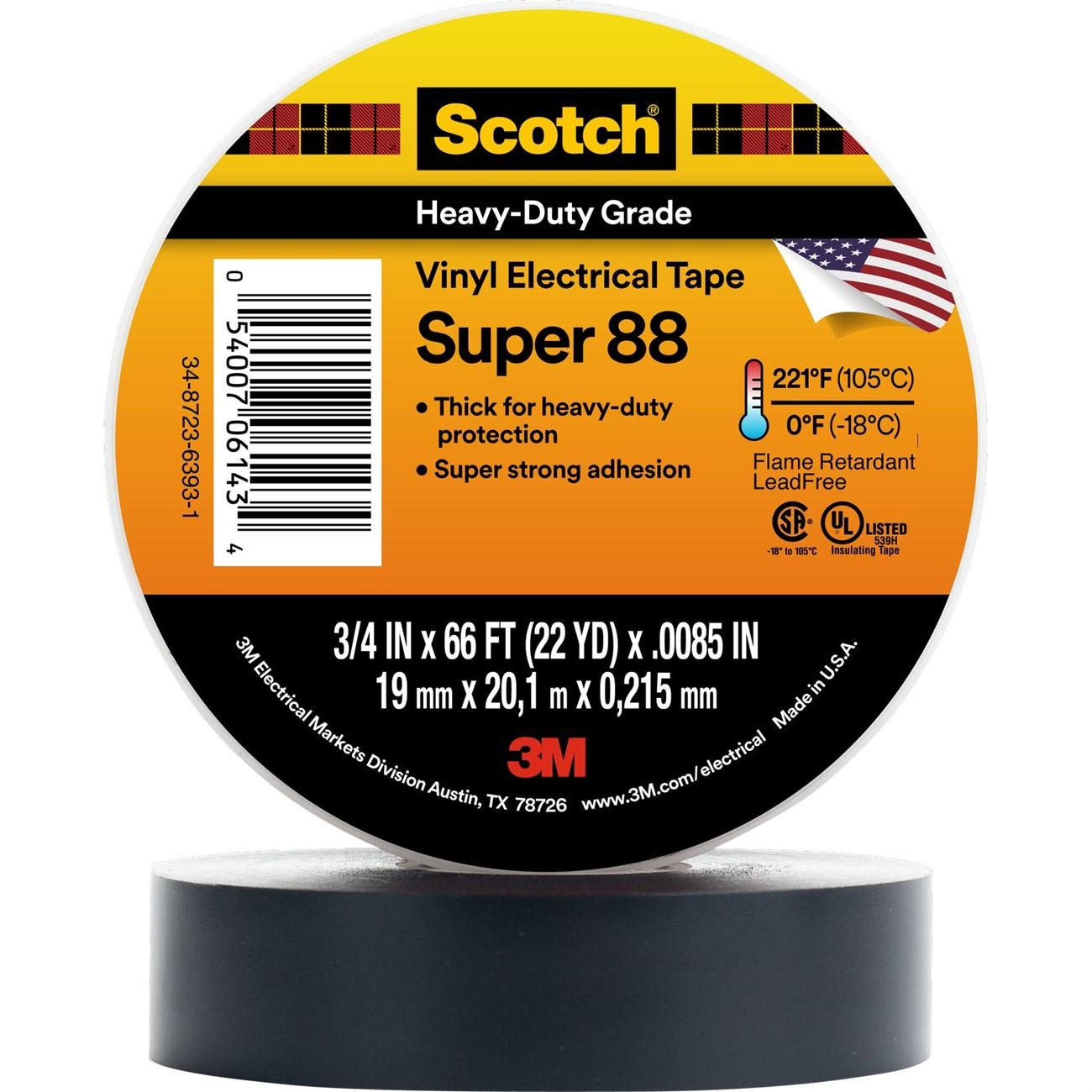

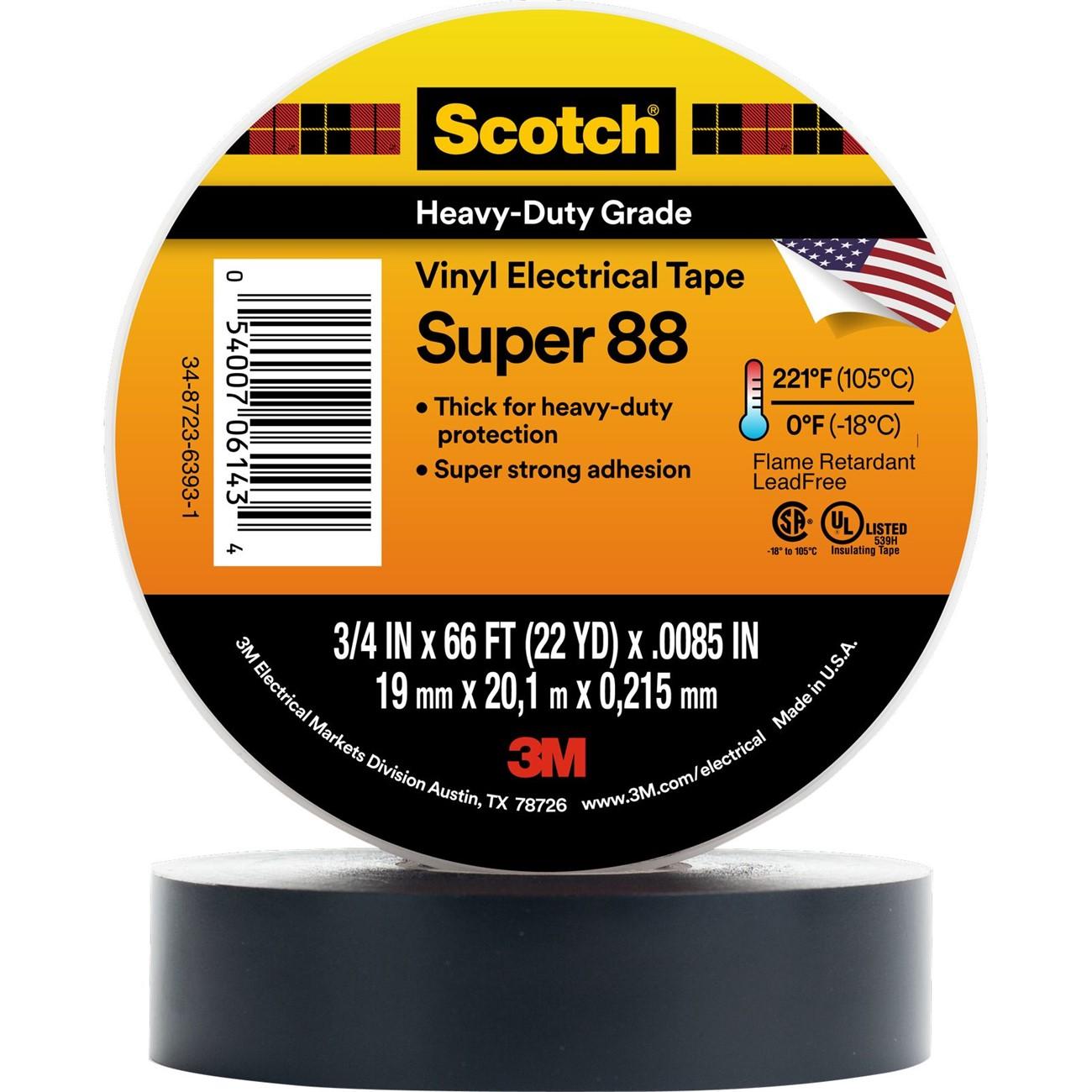

3M 7000058434 Vinyl Electrical Tape 0.75in X 36yd 600V

Product Description

The 3M 7000058434 is the Scotch Super 88 premium-grade vinyl electrical tape, an 8.5-mil thick all-weather insulating tape engineered for professional electrical work. The PVC backing provides flexibility while delivering strong electrical insulation rated for primary splice protection up to 600 volts. The tape performs across a wide temperature range, from 0 degrees F (-18 degrees C) in cold environments up to 220 degrees F (105 degrees C) in high-heat applications. Licensed electricians and electrical contractors use this tape for splicing, jacketing, and insulation build-up on wiring installations where durability and compliance matter.

Super 88 is suited for commercial and industrial electrical applications where standard-grade tape falls short. Its increased thickness compared to general-purpose vinyl tapes allows faster insulation build-up on splices and connections. The tape is appropriate for use in conduit work, panel wiring, motor lead splicing, and outdoor installations where exposure to UV, moisture, acids, or alkalies is a concern. It is sold in individual rolls measuring 0.75 inches wide by 36 yards long.

Key Features

• 8.5-mil thick PVC vinyl construction for quicker insulation build-up versus standard-grade tapes
• Primary electrical insulation rated for splices up to 600 volts
• All-weather performance from 0 degrees F to 220 degrees F
• Excellent resistance to UV rays, abrasion, moisture, copper corrosion, alkalies, and acids
• UL Listed and CSA Certified for professional electrical use
• Flexible PVC backing conforms to irregular surfaces and splice geometries

Compatibility

Designed for use as primary insulation tape on low-voltage wiring splices and connections rated up to 600 volts in residential, commercial, and industrial electrical systems.

Installation Notes

Installation should be performed by a qualified electrician in accordance with NEC guidelines. De-energize and lock out the circuit before applying tape to any splice or connection. Stretch the tape slightly during wrap to ensure a tight, void-free layer, and overlap each pass by half the tape width for proper build-up. Do not use as a substitute for listed wire connectors where connectors are required by code.

Technical Specifications

• Thickness: 8.5 mil
• Width: 0.75 inches
• Length: 36 yards
• Voltage Rating: 600 volts
• Temperature Range: 0 degrees F to 220 degrees F (-18 degrees C to 105 degrees C)
• Backing Material: PVC vinyl
• Weight: 0.47 pounds
• Unit of Measure: Roll
• Certifications: UL Listed, CSA Certified
• UPC: 00054007103233

Standard Information

• Brand: 3M
• Manufacturer Part Number: 7000058434
