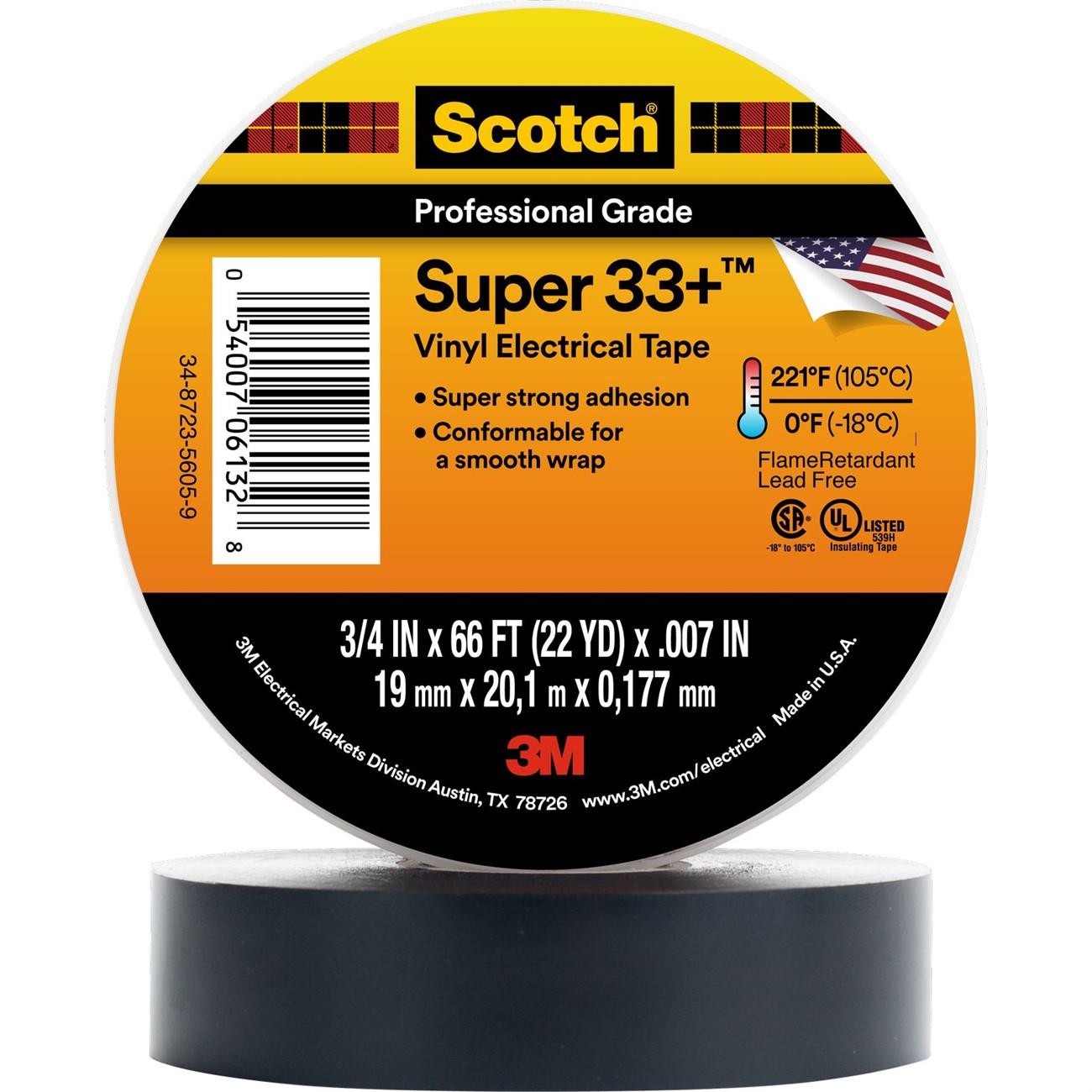

3M 7000058432 Scotch Super 33+ Vinyl Electrical Tape

Product Description

The 3M 7000058432 is a 7 mil vinyl electrical tape designed for professional electrical work across a wide range of conditions. Known as Scotch Super 33+, this tape conforms tightly to irregular surfaces and holds securely in all weather conditions. It performs reliably in sub-zero temperatures and in continuous-use environments up to 220 degrees F, making it a dependable choice for both indoor and outdoor electrical applications. Rated UL Listed and CSA Approved, it resists oil, water, abrasion, chemicals, and solvents. Each roll measures 3/4 inches wide by 20 feet long.

This tape is suited for use by licensed electricians and electrical contractors on residential and commercial installations. Common applications include insulating wire splices, phasing conductors, harnessing cable bundles, and protecting connections exposed to moisture or chemical environments. Its conformability makes it well-suited for irregular geometries such as connectors, terminals, and multi-conductor bundles. The 7 mil thickness provides a single-layer solution across a broad range of standard electrical tasks without the need to switch between multiple tape types.

Key Features

• 7 mil vinyl construction — single tape suitable for a wide range of electrical insulation tasks
• Rated for continuous use up to 220 degrees F and performs in sub-zero temperatures
• Resists oil, water, abrasion, chemicals, and solvents
• UL Listed and CSA Approved for professional electrical use
• Conforms well to irregular surfaces and tight geometries
• Each roll is 3/4 inches wide by 20 feet long

Compatibility

Designed as an OEM-style general-purpose vinyl electrical insulating tape suitable for standard residential and commercial electrical wiring and splicing applications.

Installation Notes

Installation should be performed by a qualified electrician in accordance with applicable NEC requirements. De-energize and lock out the circuit before applying tape to any conductor or splice. Ensure the surface is clean and dry before application for maximum adhesion. Do not use this tape as the sole insulation on conductors rated beyond the tape's listed temperature or voltage limits.

Technical Specifications

• Thickness: 7 mil
• Width: 3/4 inches
• Length: 20 ft
• Maximum Continuous Temperature: 220 degrees F
• Material: Vinyl
• Weight: 0.076 pounds
• Unit of Measure: Roll
• Certifications: UL Listed, CSA Approved
• UPC: 00054007061304

Standard Information

• Brand: 3M
• Manufacturer Part Number: 7000058432
