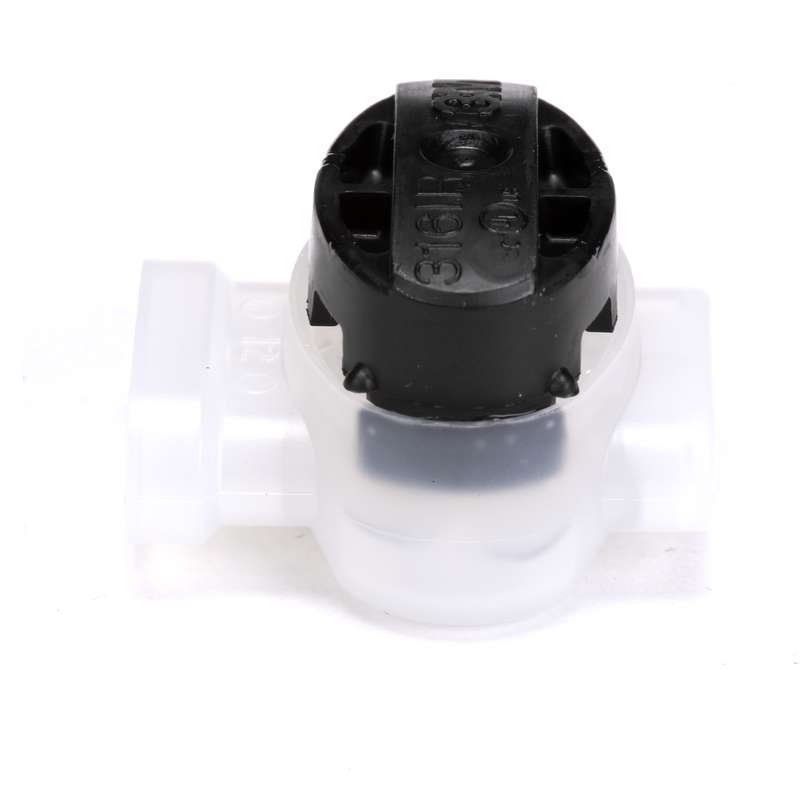

3M 7000058271 Self-Stripping Displacement Connector 600 VAC 22 to 16 AWG

Product Description

The 3M 7000058271 is a self-stripping electrical insulation displacement connector ideal for low-energy applications. This connector is suitable for solid or stranded copper conductors ranging from twenty-two to sixteen AWG. It is made of flame-retardant nylon and features a tin-plated brass U-contact for durability. The product is UL Listed and complies with RoHS standards.

• Designed for underground circuit wires, sprinkler systems, and landscape lighting.
• Provides moisture resistance to protect electrical connections.
• Temperature rated for up to two hundred twenty-one degrees Fahrenheit.

Product Highlights

Reliable for connecting two or three wire ends with a moisture-proof seal that ensures connectivity in various conditions.

Product Information

Standard Information

• Brand: 3M
• Manufacturer Part No: 7000058271

Technical Specifications

• Type: Self-Stripping
• Color: Black/White
• Voltage Rating: 600 VAC
• Wire Size: 22 to 16 AWG
• Temperature Rating: 221 degrees F
• Max Insulation Diameter: 0.155 inches
• Material: Flame Retardant Nylon
• Compliance: UL Listed, RoHS Compliant
