3M 7000056505 Atg 3662 Adhesive Tape Applicator 2 in

Product Description

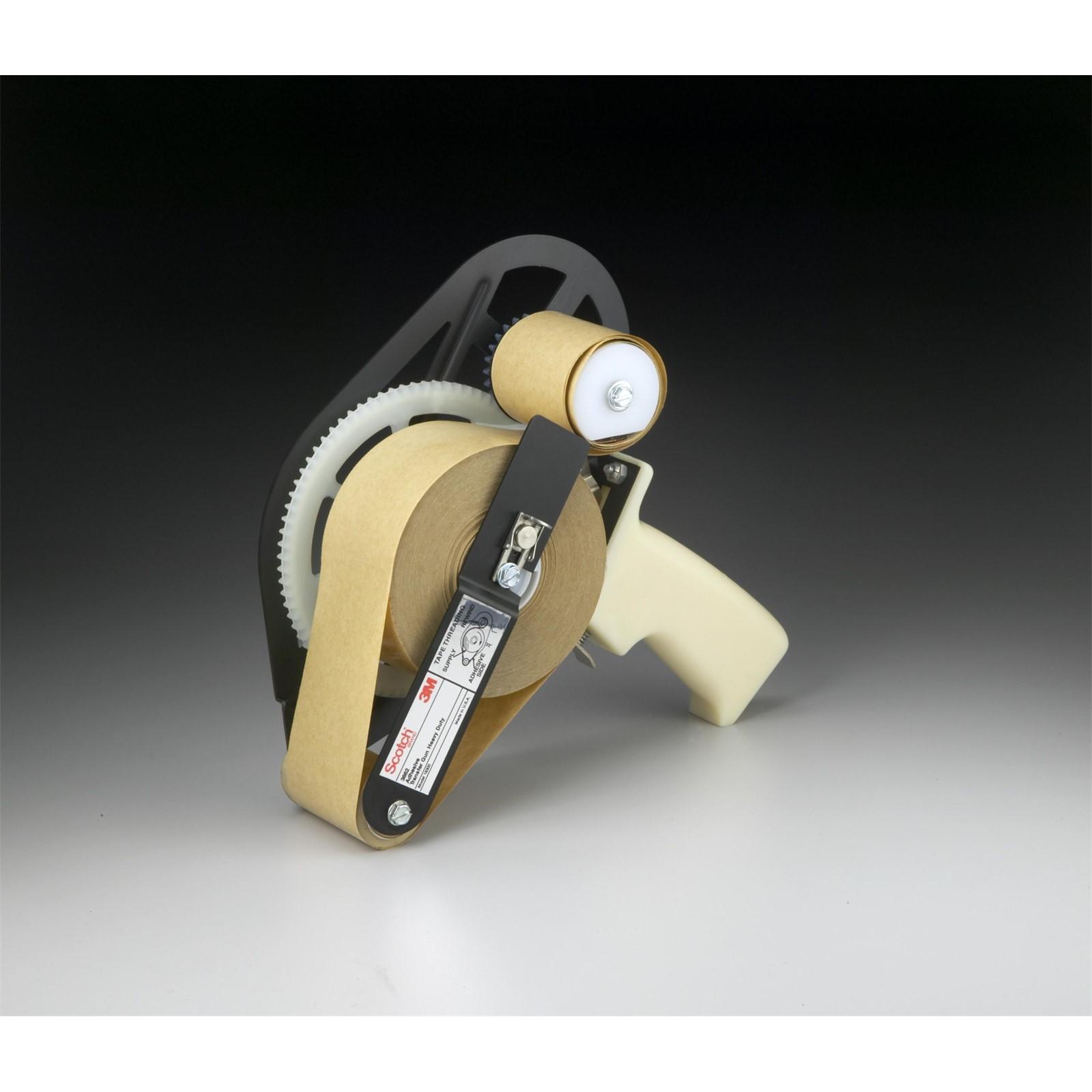

The 3M 7000056505 is a metal-frame adhesive transfer tape (ATG) applicator designed to hold 2-inch wide rolls of 3M ATG tape, accommodating up to 60 yards (55 meters) per load. It is built for industrial bonding and assembly applications where fast, clean tape application is required. A finger-triggered mechanism delivers controlled, consistent tape placement without mess or liner waste. The applicator simultaneously removes and rewinds the liner during use, keeping the work area clean and reducing handling time. Licensed trade assemblers and industrial technicians are the primary users.

This applicator is suited for industrial manufacturing, sign-making, assembly operations, and any application requiring rapid coverage of larger surface areas with adhesive transfer tape. The 2-inch roll width makes it well matched to bonding panels, mounting graphics, and laminating tasks where narrower applicators would require multiple passes. It accepts 3M ATG tape rolls up to 60 yards in length, supporting extended runs without frequent reloading.

Key Features

• Accepts 2-inch wide ATG tape rolls up to 60 yards (55 meters)
• Metal frame construction for durability in industrial environments
• Finger-triggered mechanism provides quick, controlled tape release
• Simultaneously removes and rewinds liner during application
• No adhesive mess or cleanup required after use

Compatibility

Designed for use with 3M ATG tape in 2-inch wide roll format, suitable for industrial adhesive transfer tape applications requiring a high-capacity applicator.

Installation Notes

Load the ATG tape roll into the metal frame applicator according to the threading path before beginning work. Ensure the liner take-up spool is properly engaged before triggering application to avoid liner jams. No tools or power source are required for operation. Store the loaded applicator away from heat and direct sunlight to preserve tape adhesive integrity between uses.

Technical Specifications

• Roll Width: 2 inches
• Maximum Roll Capacity: 60 yards (55 meters)
• Frame Material: Metal
• Weight: 2.46 pounds
• Unit of Measure: Each
• UPC: 00021200060373

Standard Information

• Brand: 3M
• Manufacturer Part Number: 7000056505
