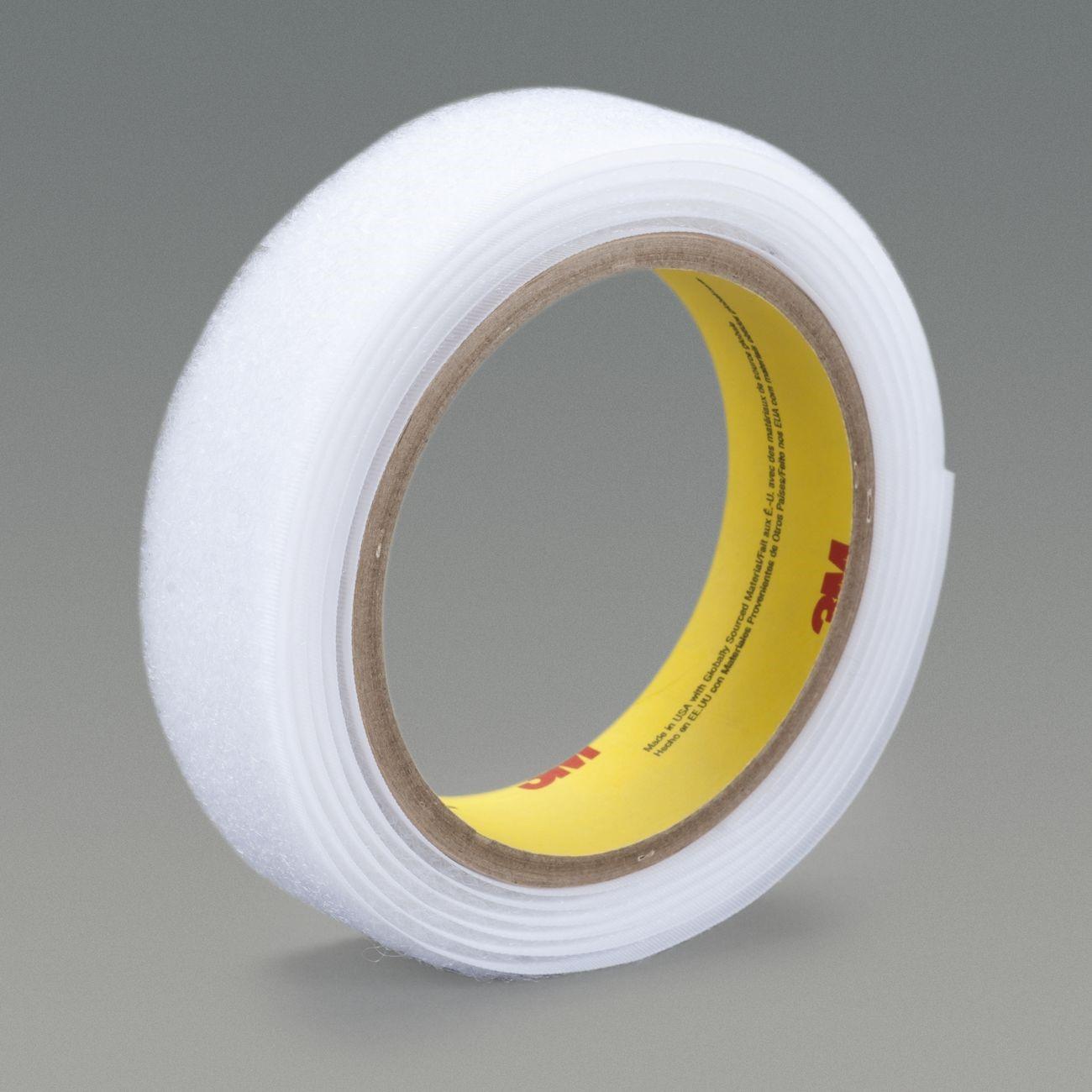

3M 7000052224 Flame Resistant Loop Fastener 1in X 50yd

Product Description

The 3M 7000052224 is a flame resistant woven nylon loop reclosable fastener tape designed for applications where fire compliance is required. The tape is 1 inch wide and comes in a 50-yard roll in white. It uses a synthetic rubber-based adhesive with high-temperature performance characteristics. The loop side mates with the 3M SJ3519FR hook fastener. This product meets F.A.R. 25.853 paragraph (a)(1)(i) for the 60-second vertical burn test, making it appropriate for aerospace and transportation interior applications. Licensed trades and fabricators working on compliant assemblies typically specify this tape for panel attachment and reclosable access points.

This fastener tape is used in applications requiring a flame resistant reclosable bond, including aircraft interiors, transit vehicle panels, and industrial equipment enclosures where burn-rate compliance is mandated. The adhesive bonds to a wide range of surfaces including paper, cardboard, painted and bare metal, glass, sealed wood, and many plastics. It is suited for both original equipment manufacturing and field repair scenarios where re-enterable fastening is needed in a fire-rated environment.

Key Features

• Meets F.A.R. 25.853 paragraph (a)(1)(i) 60-second vertical burn test requirement
• Woven nylon loop construction for durable reclosable performance
• Flame resistant synthetic rubber-based adhesive
• Mates with 3M SJ3519FR hook fastener tape
• Bonds to metal, glass, painted surfaces, sealed wood, and many plastics
• 1 inch wide x 50-yard roll for versatile cut-to-length use

Compatibility

Designed to mate with the 3M SJ3519FR flame resistant hook fastener tape as part of a compliant reclosable fastener system.

Installation Notes

Surface preparation is critical for adhesive bond strength — clean surfaces should be free of dust, oil, and loose material before application. Apply firm pressure along the full length of the tape to ensure proper adhesive contact. In aerospace or transit applications, verify that the full assembly meets the applicable burn-test standard for the finished installation. Allow adequate dwell time after application before subjecting the bond to peel or shear loads.

Technical Specifications

• Material: Woven nylon loop with flame resistant synthetic rubber adhesive
• Width: 1 inch
• Length: 50 yards per roll
• Thickness: 0.15 inches
• Color: White
• Flame Rating: F.A.R. 25.853 paragraph (a)(1)(i) 60-second vertical burn
• Unit of Measure: Roll
• Weight: 2.17 pounds

Standard Information

• Brand: 3M
• Manufacturer Part Number: 7000052224
