3M 7000052147 Compressed Air Filter Regulator Panel

Product Description

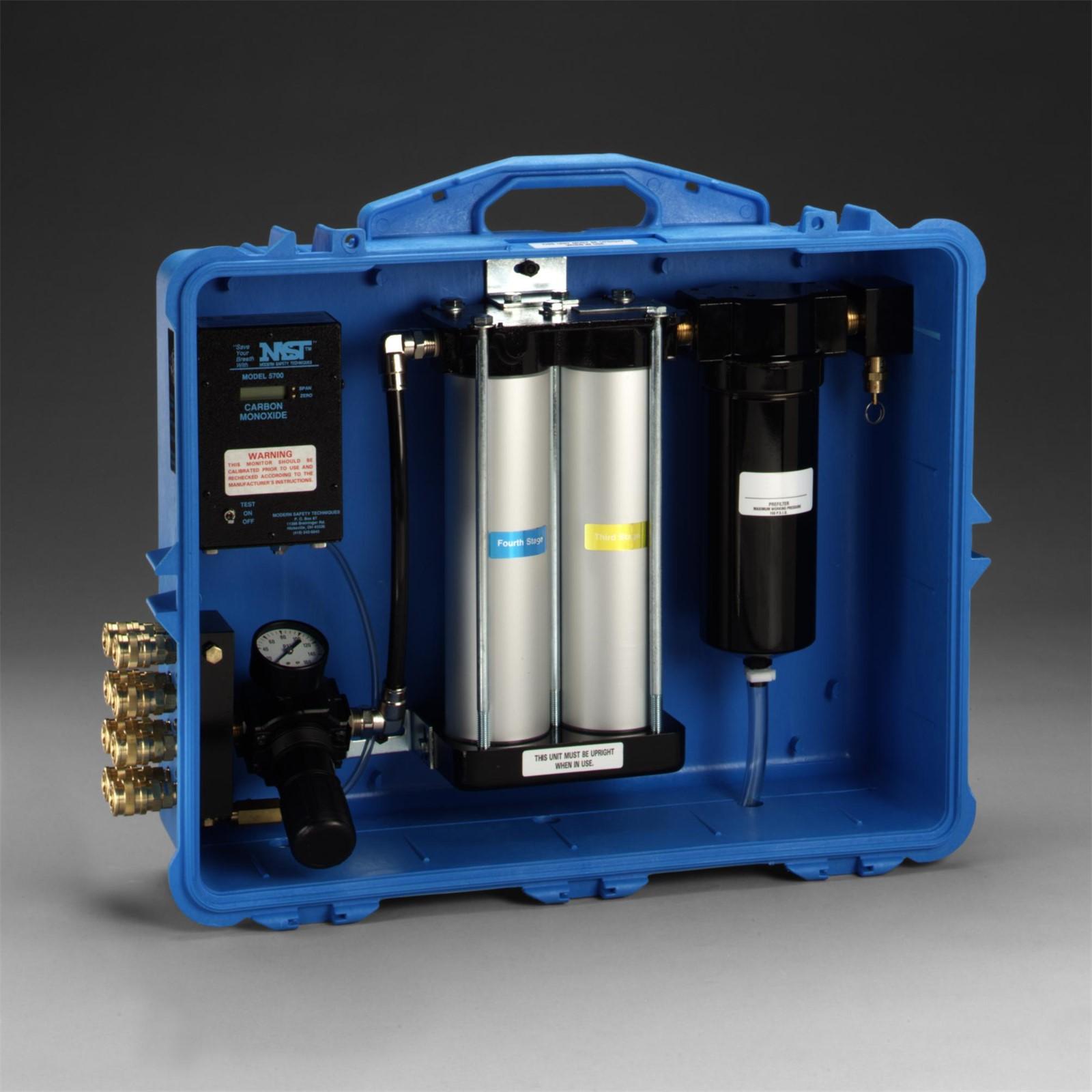

The 3M 7000052147 is a portable, eight-outlet compressed air filter and regulator panel designed for use with supplied-air respirator systems in industrial environments. This four-stage air purification system incorporates an adjustable regulator and gauge, and includes carbon monoxide (CO) monitoring to help maintain breathable air quality at the point of use. Rated for airflow up to 100 CFM, the unit is packaged in a protective carrying case that makes it practical for job-site transport and multi-worker deployments. It is installed and serviced by industrial hygienists, safety professionals, and licensed contractors working in high-hazard atmospheres.

This panel is suited for applications where compressed air must be filtered and regulated before delivery to workers wearing supplied-air respirators. Typical use environments include spray painting operations, asbestos abatement, petroleum refining, pharmaceutical manufacturing, chemical handling, and metal grinding. The portable carrying case makes it appropriate for both fixed installations and temporary work zones where multiple air-supplied respirator stations are required simultaneously.

Key Features

• Eight outlet ports support multiple simultaneous supplied-air respirator connections
• Four-stage air purification process removes particulates, moisture, and contaminants
• Integrated carbon monoxide monitoring for continuous worker air-quality protection
• Adjustable regulator and gauge allow on-site pressure control
• Protective carrying case provides full portability between job sites
• Compatible with operating air temperatures from 35 degrees F to 150 degrees F (2 degrees C to 65 degrees C)

Compatibility

Designed for use with supplied-air respirator systems in industrial applications including painting, asbestos abatement, petroleum industries, pharmaceuticals, chemical handling, and metal grinding where compressed air purification and CO monitoring are required.

Installation Notes

Installation and setup should be performed by a qualified safety professional or industrial hygienist in accordance with applicable OSHA respiratory protection standards and ANSI Z88.2 guidelines. Shut off and bleed the compressed air supply before making or breaking any connections to the panel. Verify inlet air pressure falls within the rated operating range before activating the system, and confirm CO monitor function prior to each use session.

Technical Specifications

• Airflow Capacity: 100 CFM
• Number of Outlets: 8
• Purification Stages: 4
• Operating Air Temperature Range: 35 degrees F to 150 degrees F (2 degrees C to 65 degrees C)
• Weight: 36 pounds
• UPC: 00051138721220

Standard Information

• Brand: 3M
• Manufacturer Part Number: 7000052147
