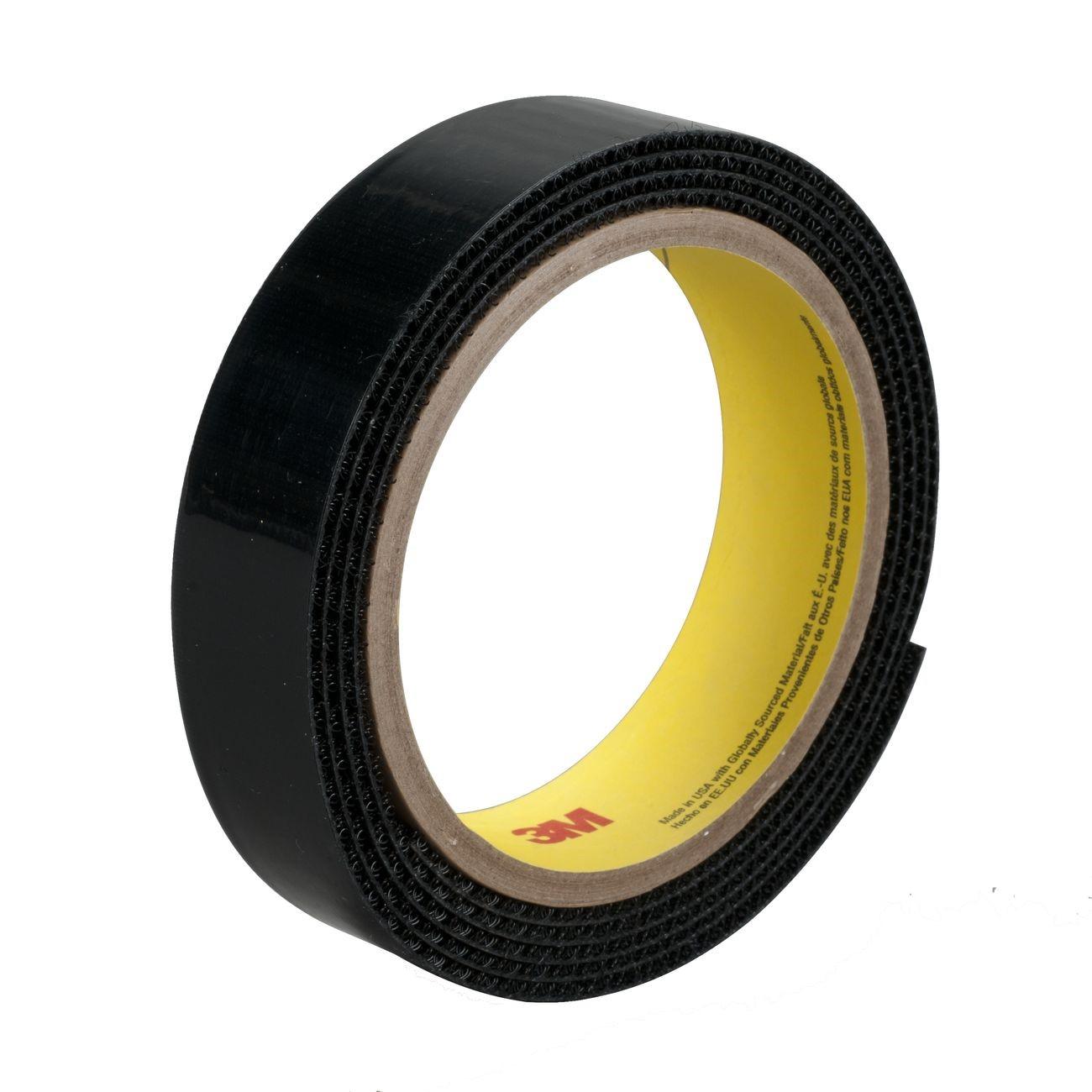

3M 7000051774 Flame Resistant Loop Fastener 5/8 in X 50 Yd

Product Description

The 3M 7000051774 is a flame resistant, no-adhesive nylon woven loop fastener designed for reclosable applications in environments where fire resistance and durability are required. Sold as a 50-yard roll at 5/8 inches wide, this loop-side fastener features an engaged thickness of 0.15 inches and is temperature resistant up to 250 degrees F. It meets F.A.R. 25.853 paragraph (a)(1)(i) 60-second vertical burn test requirements. Installation is straightforward for fabricators, upholstery professionals, and trade technicians working with flame rated textiles, garments, enclosures, or soft goods in aerospace, transportation, and commercial interior applications.

This fastener is suited for use in applications requiring a compliant, reclosable closure on flame rated materials. The woven nylon construction is preshrunk for dimensional stability and flatness, making it reliable for use on garments, curtains, covers, and similar fabric assemblies. It carries no adhesive backing, so attachment is achieved by sewing or other mechanical means. The black color provides a clean, tailored appearance on finished goods. This product is washable and dry cleanable, supporting maintenance cycles in professional environments.

Key Features

• Flame resistant construction meets F.A.R. 25.853 paragraph (a)(1)(i) 60-second vertical burn test
• Temperature resistant to 250 degrees F
• No adhesive backing — attach by sewing or mechanical fastening
• Preshrunk woven nylon for maximum dimensional stability and flatness
• Washable and dry cleanable for maintained-use environments
• Mates with 3M SJ3419FR beige hook fastener for a complete reclosable system

Compatibility

Loop side mates with 3M SJ3419FR flame resistant hook fastener (beige) to form a complete reclosable fastener pair.

Installation Notes

This fastener has no adhesive and must be mechanically attached, typically by sewing, to the substrate material. Standard sewing equipment and flame rated thread appropriate to the application should be used. Verify that the mating hook fastener and all other assembly components also meet applicable flame resistance requirements for the finished assembly. Follow applicable industry standards and customer specifications for aerospace, transportation, or commercial interior installations.

Technical Specifications

• Width: 5/8 inches
• Roll Length: 50 yards
• Engaged Thickness: 0.15 inches
• Color: Black
• Material: Nylon (woven loop)
• Adhesive: None
• Temperature Resistance: 250 degrees F
• Flame Rating: F.A.R. 25.853 paragraph (a)(1)(i) 60-second vertical burn test
• Care: Washable and dry cleanable
• Unit of Measure: Roll
• Weight: 1.33 pounds
• UPC: 00021200626739

Standard Information

• Brand: 3M
• Manufacturer Part Number: 7000051774
