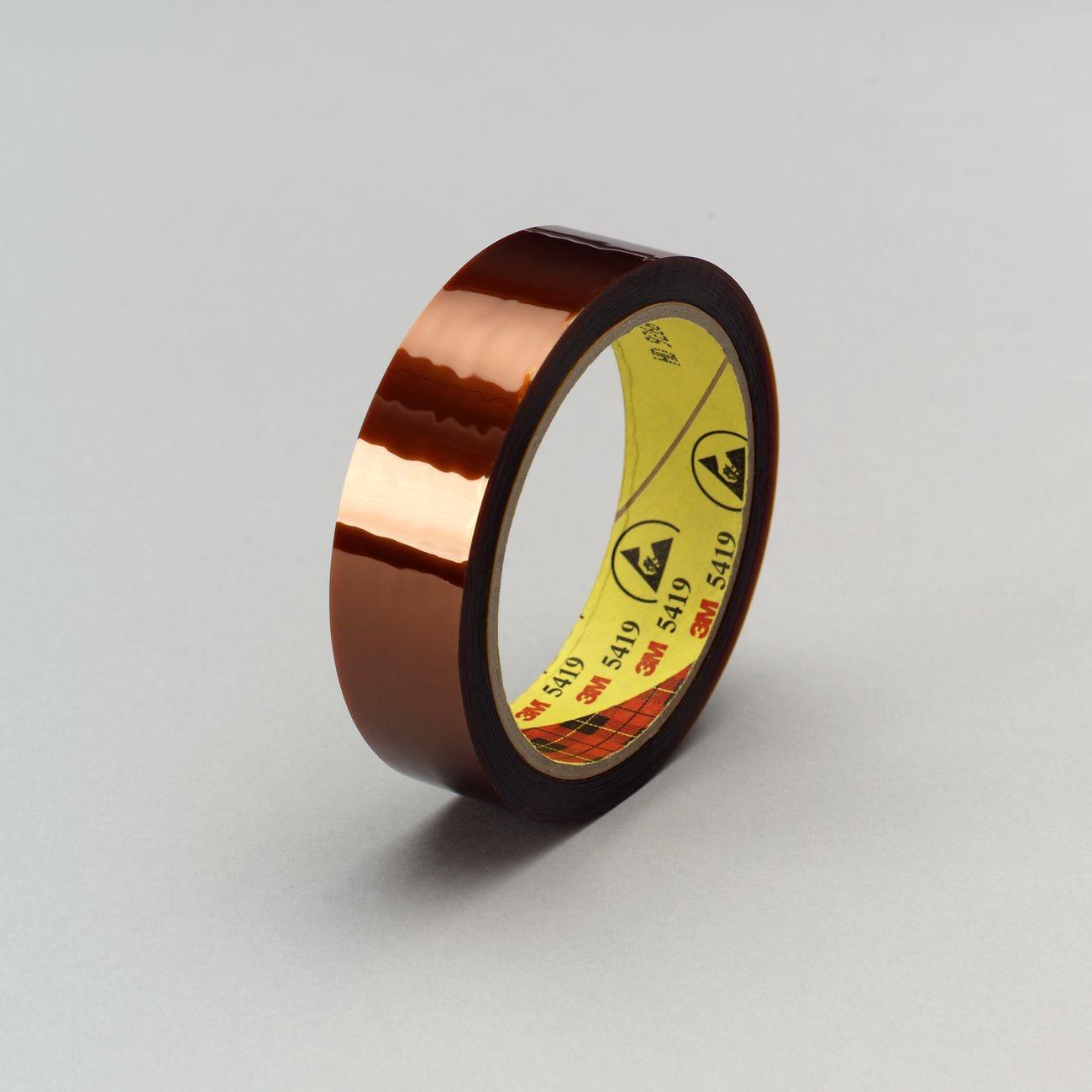

3M 7000050146 Low Static Polyimide Film Tape 5419 Gold

Product Description

The 3M 7000050146 is a low static polyimide film tape designed for high-temperature masking and release applications in electronics manufacturing and industrial fabrication. The tape features a translucent gold polyimide film backing coated with a silicone adhesive and is engineered for extremely low electrostatic discharge (ESD) properties. At 2.7 mil total thickness, it delivers reliable conformability and adhesion under elevated thermal conditions. This product is handled by electronics assembly technicians, PCB fabricators, and industrial process engineers working in environments where static control and heat resistance are critical requirements.

This tape is used primarily as a masking solution for printed circuit boards (PCBs) during wave solder or solder dip processes, where protection of components and traces from solder contact is required. It also serves as a release surface in the fabrication of composite or molded parts that are cured at elevated temperatures. The combination of low static generation and thermal stability makes it suitable for both electronics production lines and high-temperature industrial cure cycles. Each roll measures 22.5 inches wide by 36 yards long, making it appropriate for wide-format masking applications.

Key Features

• Extremely low electrostatic discharge properties for static-sensitive electronics environments
• Polyimide film backing with silicone adhesive construction rated for elevated temperature exposure
• 2.7 mil total thickness for conformable yet durable masking
• Suitable as a release surface during high-temperature part cure processes
• Wide 22.5-inch format accommodates large PCB masking and industrial fabrication use cases
• Translucent gold film allows visual inspection of masked areas

Compatibility

Designed for use in wave solder and solder dip masking applications on printed circuit boards and as a release surface in elevated-temperature composite or part fabrication processes.

Installation Notes

Application should be performed by qualified electronics assembly technicians or industrial process personnel familiar with static-sensitive handling procedures. Surfaces should be clean and dry before tape application to ensure proper adhesion. When used in soldering processes, verify that process temperatures do not exceed the thermal limits of the tape assembly. Remove tape carefully after processing to avoid residue transfer or damage to underlying components or surfaces.

Technical Specifications

• Thickness: 2.7 mil
• Width: 22.5 inches
• Length: 36 yards
• Backing Material: Polyimide film
• Adhesive Type: Silicone
• Film Color: Translucent gold
• Unit of Measure: Roll
• Weight: 6.3 pounds
• UPC: 50021200302874

Standard Information

• Brand: 3M
• Manufacturer Part Number: 7000050146
