3M 7000050106 Electroplating Tape 470 Tan 1 in X 36 Yd 7.1 Mil

Product Description

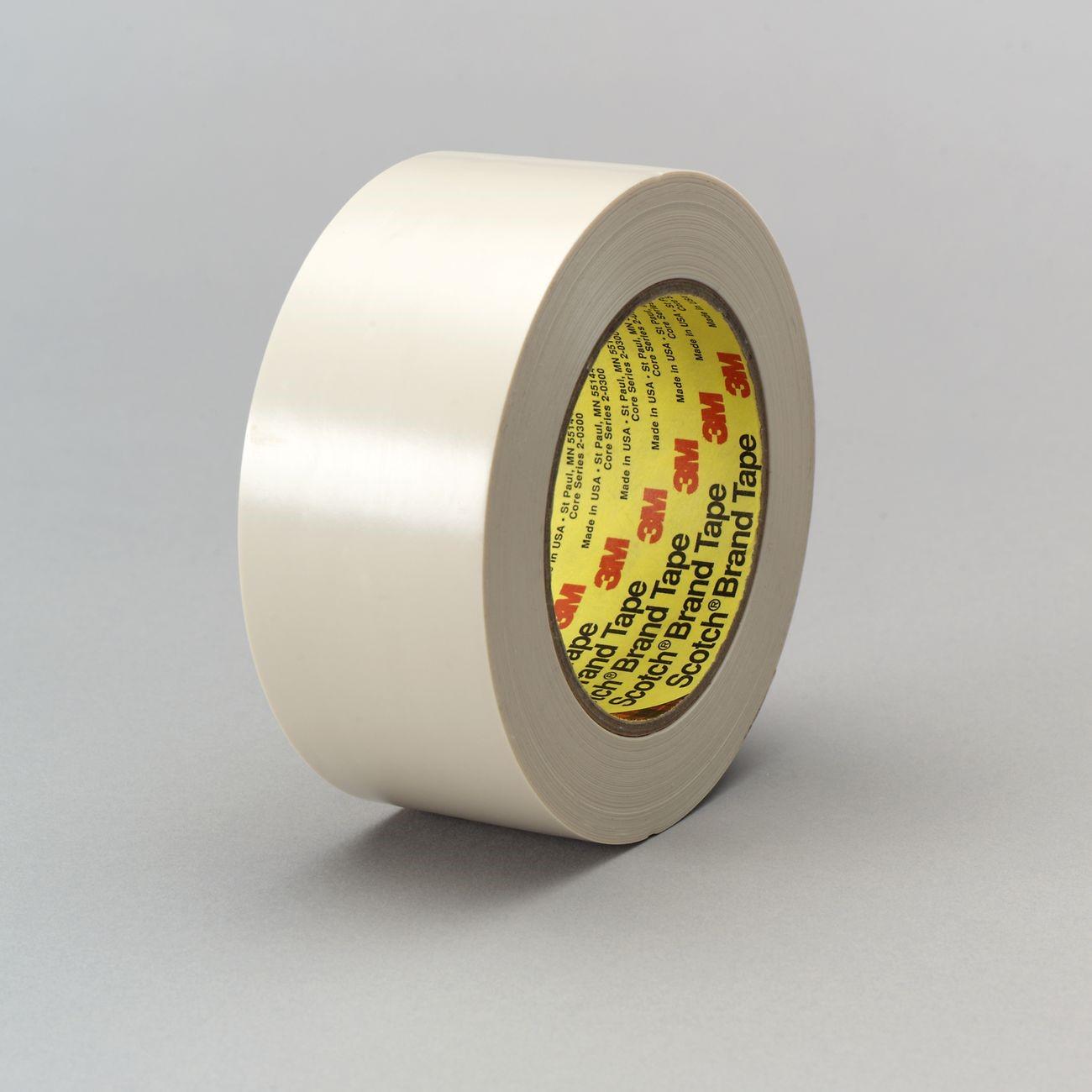

The 3M 7000050106 is a conformable vinyl electroplating tape designed to mask surfaces during electroplating operations. Sold under the 3M 470 tape series in a tan finish, it measures 1 inch wide by 36 yards long and carries a total thickness of 7.1 mil. The vinyl construction provides abrasion resistance and strong chemical resistance against the acids, alkalis, and plating solutions commonly encountered in electroplating baths. Industrial maintenance technicians and plating shop operators use this tape to protect threaded holes, bearing surfaces, and other critical areas that must remain free of plated deposits.

This tape is suited for use in production and job-shop electroplating environments where reliable masking performance is required. The conformable vinyl backing allows the tape to wrap around contoured parts and irregular geometries without lifting or gapping. It is appropriate for masking applications in chrome, nickel, zinc, and similar electroplating processes. The 36-yard roll length supports high-volume masking work and reduces roll changeover frequency on busy plating lines.

Key Features

• Conformable vinyl backing conforms to curved and irregular part surfaces
• Abrasion-resistant construction withstands handling during the plating process
• Chemical resistance to acids, alkalis, and solutions typical of electroplating baths
• 1 inch width and 36-yard length provide versatile coverage for masking work
• 7.1 mil total thickness for durable edge protection and clean masking lines
• Tan color aids visual inspection of masked areas before and after plating

Compatibility

Designed as an OEM-style masking solution for use in standard electroplating masking applications where vinyl tape conformability and chemical resistance are required.

Installation Notes

Application should be performed by qualified plating technicians or industrial maintenance personnel familiar with masking procedures. Clean and degrease the part surface thoroughly before applying tape to ensure full adhesion and prevent plating solution from wicking under the edge. Apply tape with firm pressure along the entire length, paying particular attention to edges and contoured transitions. Remove the tape promptly after the plating cycle is complete to prevent adhesive transfer or difficulty in removal.

Technical Specifications

• Series: 470
• Color: Tan
• Width: 1 inch
• Length: 36 yards
• Total Thickness: 7.1 mil
• Backing Material: Vinyl
• Package Weight: 19.92 pounds
• Unit of Measure: Case

Standard Information

• Brand: 3M
• Manufacturer Part Number: 7000050106
