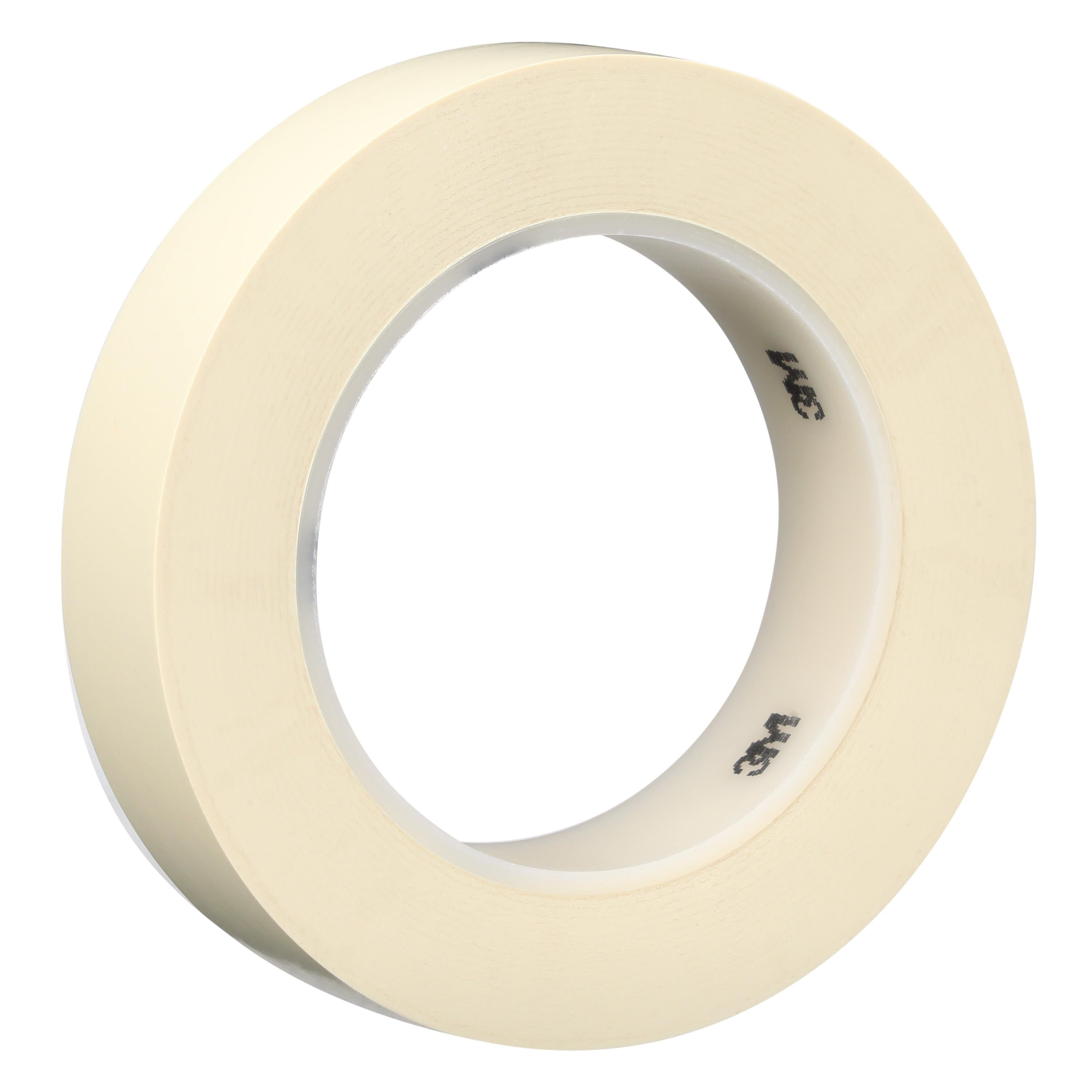

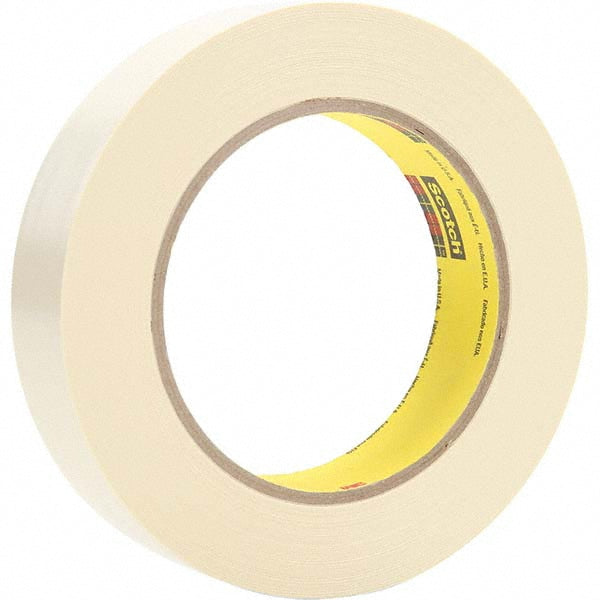

3M 7000050106 Electroplating Tape 470 1 in x 36 yd 7.1 mil, 36 per case Boxed

Product Description

The 3M 7000050106 Electroplating Tape 470 is a conformable and abrasion-resistant vinyl tape. It offers excellent resistance to most chemicals used in typical electroplating processes. This tape features an abrasion resistant backing ideal for use with plating chemicals, anodizing chemicals, milling, etching and peening operations. The tape removes cleanly from most surfaces.

• Conformable
• Abrasion-resistant
• Excellent resistance to most chemicals used in typical electroplating processes

Product Highlights

Electroplating tape with abrasion resistant backing ideal for use with plating chemicals, anodizing chemicals, milling, etching and peening operations.

Product Information

Standard Information

• Brand: 3M
• Manufacturer Part Number: 7000050106
• Country of Origin: US

Technical Specifications

• MPN: 7000050106
• UOM: Case
• ProductCategory: Adhesives, Sealants & Tapes
• ProductSegment: Tapes
• ProductLine: Electroplating Tape
• Color: Tan
• Width: 1 in
• Length: 36 yd
• Series: 470
• Thickness: 7.1 mil
• Applications: Masking during Electroplating Process, Wrapping, Patching, Coated Cracks, Labeling, Sealing Containers from Water Intrusion
• Product Type: Vinyl Tape
• Primary Color: Brown
• Backing Material: Vinyl
• Package Quantity: 36 RLS
• Tensile Strength: 20lb/in
• Adhesion Strength: 37 oz/in
• Material Category: Plastic
• Elongation at Break: 180%
• Resistance Properties: Abrasion Resistant; Chemical Resistant; Solvent Resistant
• Maximum Operating Temperature: +250°F
• Adhesive Material: Rubber
• Minimum Operating Temperature C: 0.00
• Maximum Operating Temperature C: 121.00
• UNSPSC Code: 31201503
• Specifications Met: ASTM D3330/D3759/D3652
• Adhesive Type: Rubber
• Box Length (in): 18
• Box Width (in): 11.6
• Box Height (in): 7.8
