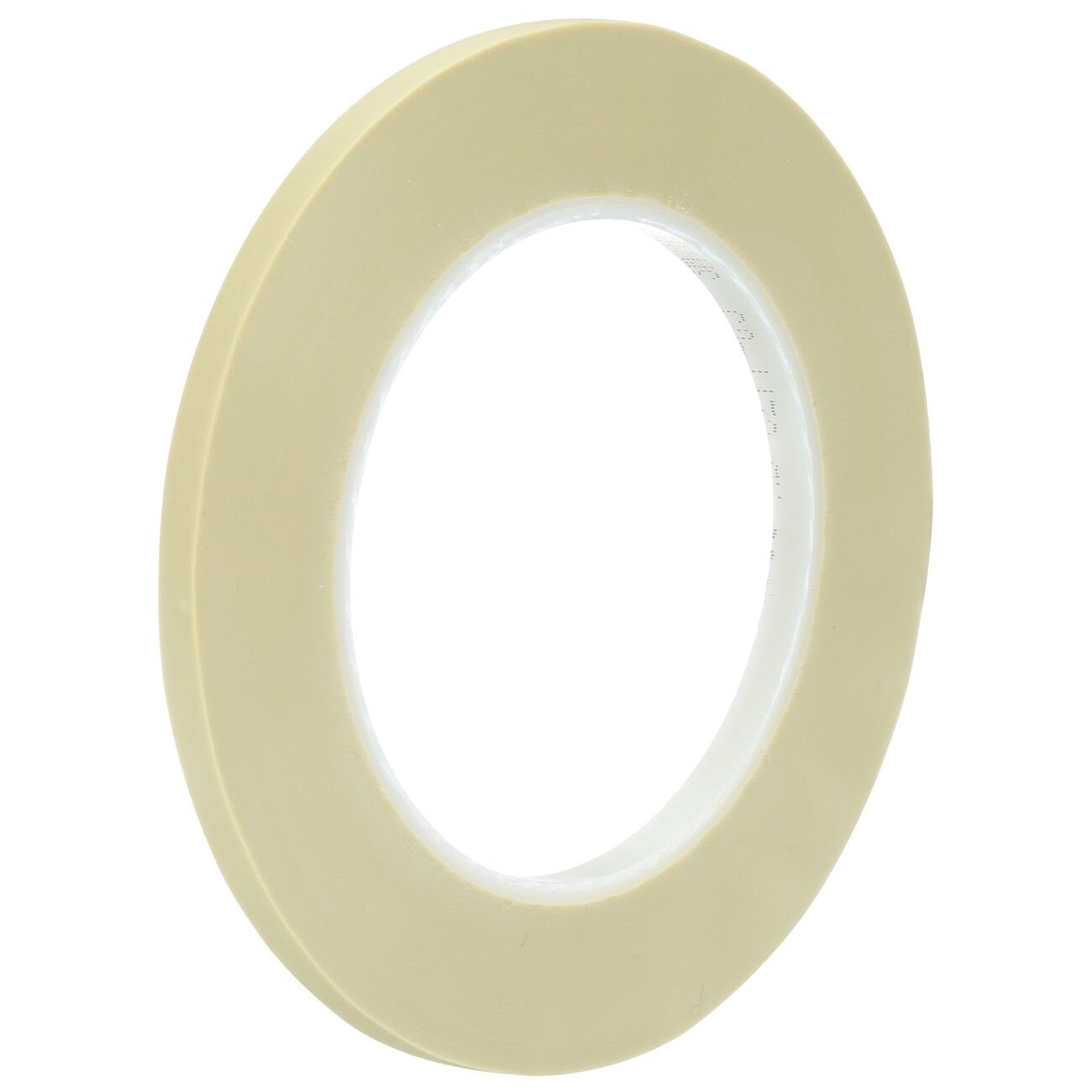

3M 7000050054 Fine Line Masking Tape 3/32 in X 60 Yd

Product Description

The 3M 7000050054 is a green, film-backed fine line masking tape rated at 5.0 mils thick, designed for precision paint line work and masking applications in automotive, industrial, and finishing trades. The low-profile, high-adhesion film backing conforms to surfaces without lifting, producing clean, sharp color separation at paint boundaries. The specialty-processed backing stretches for smooth curves while holding firmly on long straight runs. It resists moisture and solvents, tolerates temperatures up to 250 degrees F, and can be applied over fresh paint sooner than conventional paper tapes, reducing the risk of imprint damage on newly coated surfaces.

This tape is used in automotive refinishing, body shop masking, and industrial coating applications where precise paint line definition is critical. The 3/32-inch width makes it well-suited for detail work, pinstriping layouts, and tight-radius curves. It performs in both production and touch-up environments where solvent exposure and humidity are common. Licensed body shop technicians, industrial painters, and finishing professionals are the primary installers. It is sold in rolls and typically ordered in case quantities of 12.

Key Features

• 5.0 mil film backing provides low profile for sharp, clean paint line separation
• Stretches easily over curves while maintaining straight-line performance
• Excellent moisture and solvent resistance for wet-process environments
• Can be applied over fresh paint sooner than paper tapes, reducing imprint risk
• Adhesion to steel rated at 37 oz. per inch width
• Tensile strength of 13 lbs. per inch width with elongation at break of 720 percent

Compatibility

Designed for use as a fine line masking tape in automotive refinishing, industrial painting, and precision coating applications where a thin, conformable film-backed tape is required.

Installation Notes

Surface should be clean and dry before applying tape to ensure proper adhesion and a leak-free paint line. Remove tape promptly after painting, before the coating fully cures, to reduce edge lifting and imprint risk. This tape should not be subjected to outdoor exposure or used beyond its rated temperature limit of 250 degrees F. Dispose of used tape per local shop and environmental guidelines.

Technical Specifications

• Thickness: 5.0 mil
• Width: 3/32 inches
• Length: 60 yards per roll
• Adhesion to Steel: 37 oz. per inch width
• Tensile Strength: 13 lbs. per inch width
• Elongation at Break: 720 percent
• Temperature Use Range: Up to 250 degrees F
• Color: Green
• Weight: 0.07 pounds
• Unit of Measure: Roll
• Minimum Order Quantity: 12
• UPC: 00021200063084

Standard Information

• Brand: 3M
• Manufacturer Part Number: 7000050054
