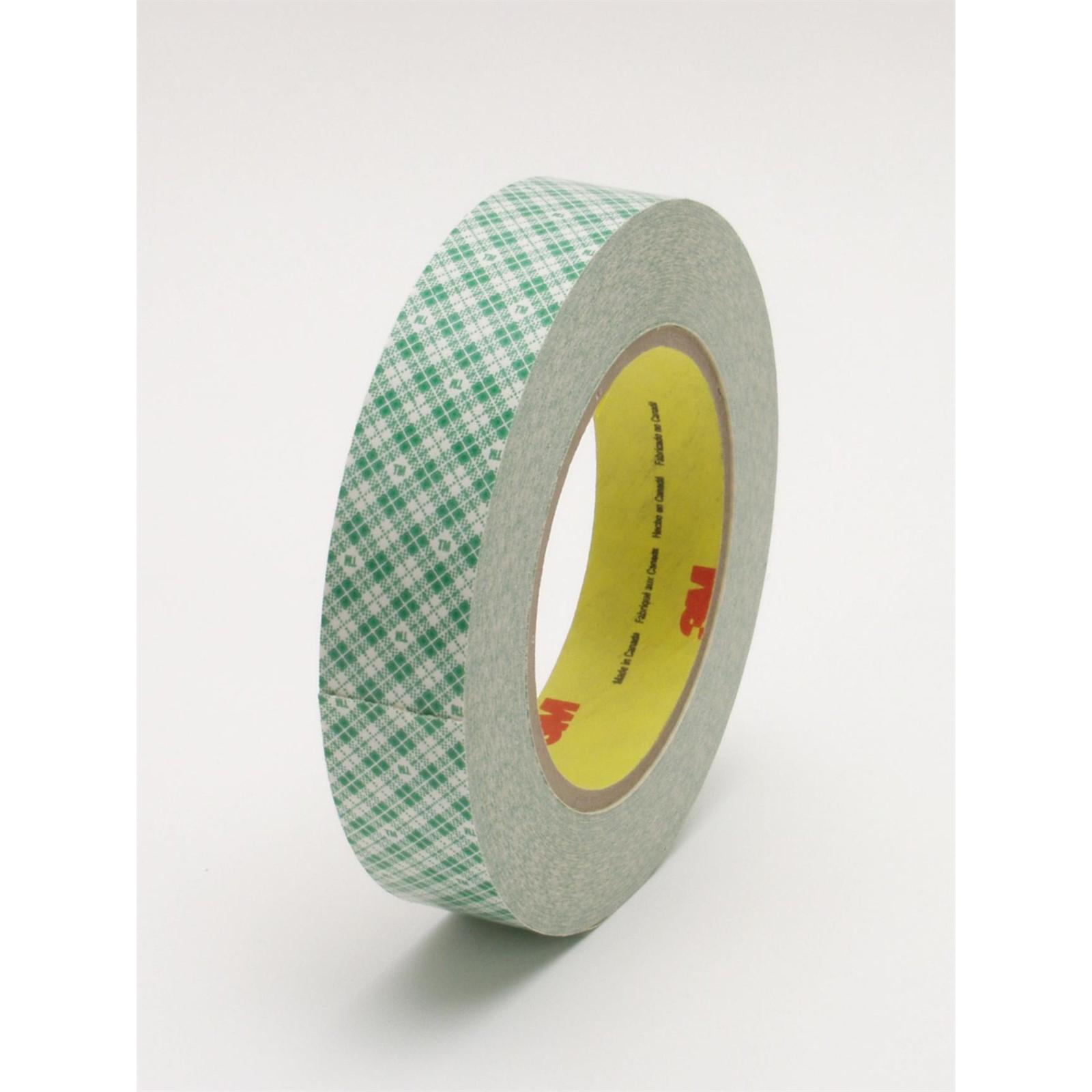

3M 7000049272 Double Coated Paper Tape 6 Mil 0.5 in X 36 Yd

Product Description

The 3M 7000049272 is a double coated paper tape built around a natural rubber adhesive system that delivers high initial tack across a wide range of substrates. At 6 mil total thickness, the tape rides on a heavy paper carrier that has been treated for added strength and dimensional stability. A paper release liner protects the second adhesive face until application. The tape tears cleanly by hand, making it practical for fast-paced fixturing and assembly work without requiring a dispenser. It is manufactured through a solvent-free process, supporting facilities with environmental compliance goals.

This tape is suited for temporary bonding, attaching, and fixturing applications in light manufacturing, assembly, and general industrial environments. The natural rubber adhesive base — 3M Adhesive 860 — bonds readily to paper, cardboard, foil, film, and many painted or primed surfaces. It is commonly used where a part or component needs to be held in position during processing and then released without substrate damage. Packaging operations and graphic arts workflows are also typical use cases for this product type.

Key Features

• 6 mil double coated construction with natural rubber adhesive on both faces
• 3M Adhesive 860 provides high initial adhesion to a variety of substrates
• Heavy paper carrier treated for improved strength and dimensional stability
• Hand-tearable for fast application without tools or dispensers
• Paper release liner protects the second adhesive surface until use
• Solvent-free manufacturing process supports environmental compliance goals

Compatibility

Designed as an OEM-style double coated paper tape suitable for temporary fixturing, attaching, and bonding applications across light industrial and general assembly environments.

Installation Notes

Clean and dry the substrate surface before applying the tape to ensure full adhesive contact. Peel the release liner and apply firm hand pressure along the full length of the bond line. This product is intended for temporary or light-duty fixturing — verify load and temperature requirements match application conditions before use. Remove tape promptly after processing to reduce the risk of adhesive residue transfer.

Technical Specifications

• Tape Thickness: 6 mil
• Width: 0.5 inches
• Length: 36 yards per roll
• Adhesive Type: Natural rubber (3M Adhesive 860)
• Carrier Material: Paper
• Release Liner: Paper
• Unit of Measure: Roll
• Package Weight: 0.24 pounds
• Package Dimensions: 11.4 inches x 11.4 inches x 11.6 inches
• UPC: 00051115316470

Standard Information

• Brand: 3M
• Manufacturer Part Number: 7000049272
