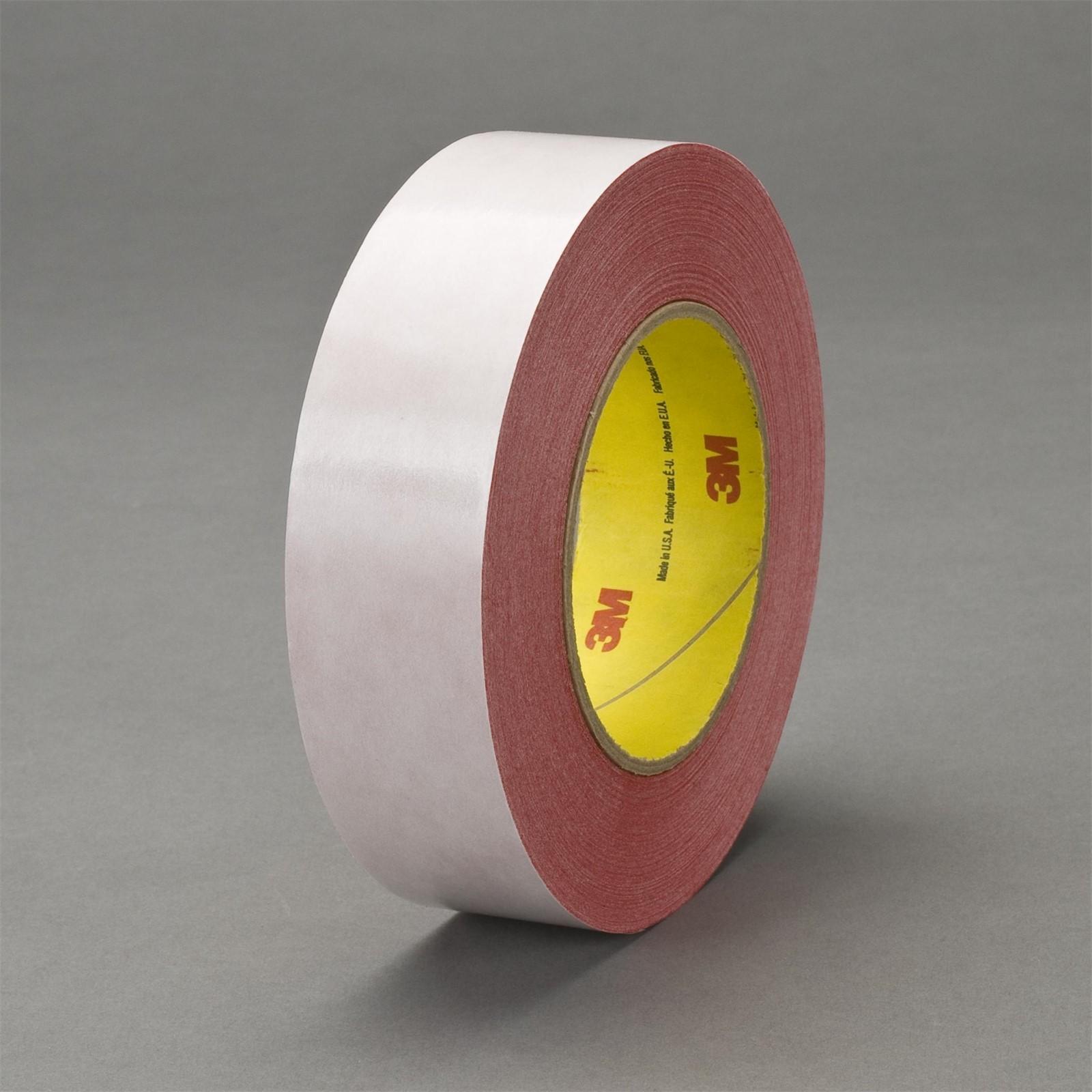

3M 7000049265 Double Coated Tape Red 1.9 in 60.15 Yd

Product Description

The 3M 7000049265 is a double-sided tape built on a thin polyester carrier and coated on both sides with a pressure-sensitive acrylic adhesive. It delivers a balance of high initial tack and sustained holding power, making it well suited for high-speed splicing operations in industrial and converting environments. The tape is supplied on a 55-pound densified kraft paper liner that allows clean, controlled release during positioning and application. The red color provides visual confirmation in visible splicing applications. Licensed applicators and line operators in paper, print, and packaging operations are the primary users.

This tape is designed for splicing applications where quick adhesion to kraft paper, coated paper, and plastic substrates is required. The high-tack acrylic adhesive maintains performance across a broad temperature range and resists moisture, making it a reliable choice in variable plant conditions. Each roll measures 1.9 inches wide and 60.15 yards long and is sold in a minimum quantity of 24 rolls per order.

Key Features

• Pressure-sensitive acrylic adhesive provides high initial tack and strong holding power
• Thin polyester carrier supports precise, controlled application in high-speed splicing lines
• 55-pound densified kraft paper liner allows easy release and handling
• Excellent peel, tack, and shear strength suited for rigorous splicing demands
• Good moisture resistance supports consistent performance in variable environments
• Red color offers visual identification in visible splicing workflows

Compatibility

Designed for use in high-speed splicing applications involving kraft paper, coated paper, and plastic substrates in industrial converting and packaging operations.

Installation Notes

Application is performed by trained line operators or industrial maintenance technicians. Ensure the bonding surface is clean, dry, and free of dust or oils before applying. Peel the liner back incrementally to maintain alignment during high-speed splicing. Store unused rolls in a cool, dry location away from direct heat sources to preserve adhesive performance.

Technical Specifications

• Tape Width: 1.9 inches
• Tape Length: 60.15 yards
• Carrier Material: Polyester
• Adhesive Type: Pressure-sensitive acrylic
• Liner: 55-pound densified kraft paper
• Color: Red
• Unit of Measure: Roll
• Minimum Order Quantity: 24 rolls
• Package Weight: 1.24 pounds
• Package Length: 12.31 inches
• Package Width: 12.31 inches
• Package Height: 12.63 inches
• UPC: 00051115314681

Standard Information

• Brand: 3M
• Manufacturer Part Number: 7000049265
