3M 7000049264 Double Coated Tape Red 1.42 in 60.15 Yd

Product Description

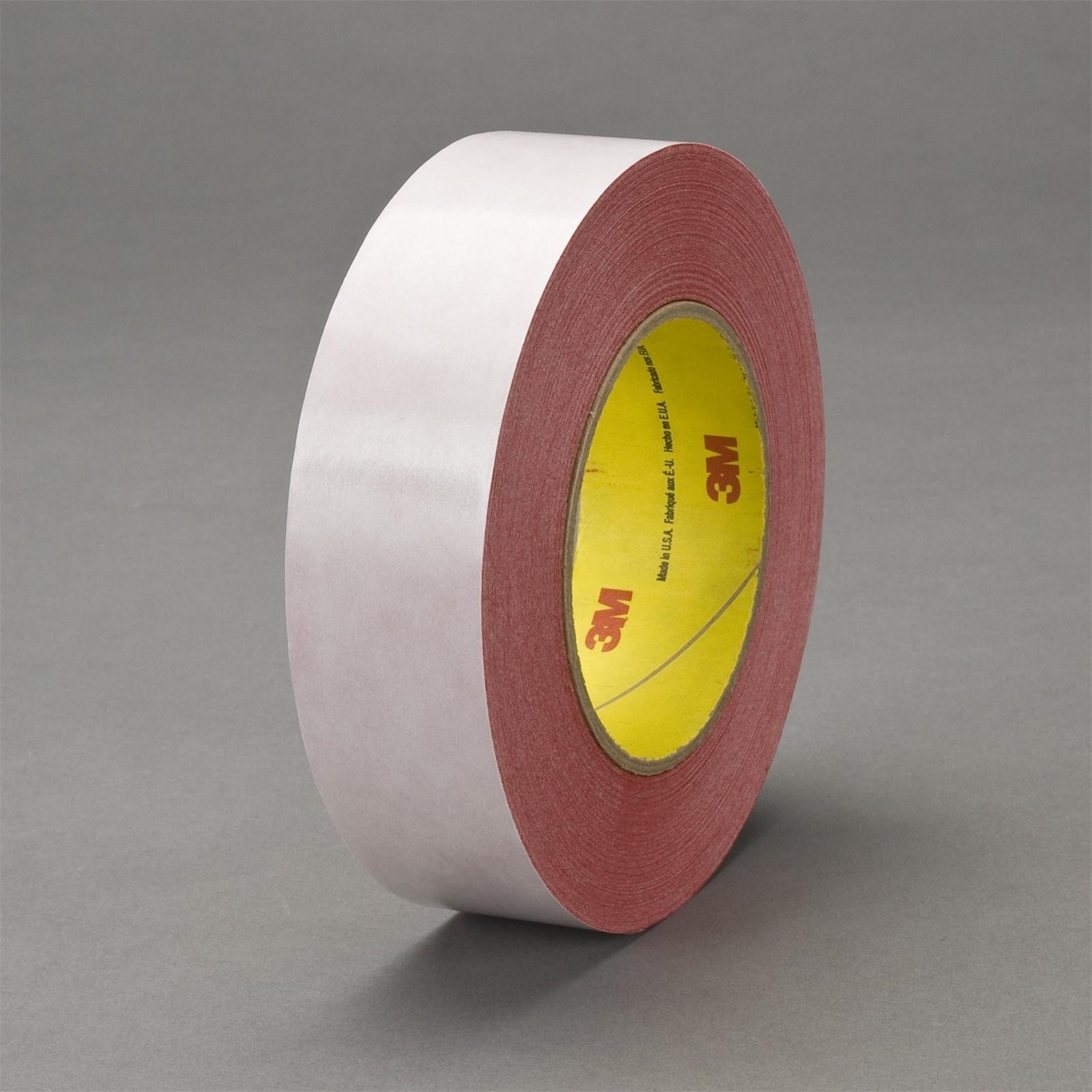

The 3M 7000049264 is a double-sided tape built on a thin polyester carrier with a pressure-sensitive acrylic adhesive. It delivers a balance of high initial adhesion and strong holding power across a broad temperature range. The red-colored tape is wound on a 55 lb. densified kraft paper liner that allows easy release and clean handling during application. It is used in high-speed splicing environments where consistent tack, peel strength, and shear resistance are required. Licensed trade professionals and industrial production technicians are the typical end users for this product.

This tape is suited for splicing applications in converting, printing, and packaging operations where speed and bond reliability are critical. The red color makes splice points visible for quality control and line monitoring. It bonds well to kraft paper, coated papers, and plastic substrates, making it adaptable across a range of web-fed and sheet-fed processes. The moisture-resistant adhesive helps maintain performance in environments with variable humidity. It is supplied in roll form with a minimum order quantity of 32 rolls.

Key Features

• Pressure-sensitive acrylic adhesive with high initial tack and sustained holding power
• Performs across a broad temperature range for consistent results in variable conditions
• Excellent peel, tack, and shear strength suited to rigorous high-speed splicing
• Bonds to kraft paper, coated papers, and plastic substrates
• Good moisture resistance for reliable performance in humid environments
• Red color provides visible splice identification for quality control

Compatibility

Designed for use in high-speed splicing applications involving kraft paper, coated paper, and plastic substrates in converting and packaging operations.

Installation Notes

Application should be performed by trained press or converting technicians following the substrate manufacturer guidance. Clean and dry the bonding surface before applying the tape to ensure full adhesive contact. Remove the liner carefully to avoid stretching the thin polyester carrier. Test adhesion on the specific substrate before committing to a full production run.

Technical Specifications

• Width: 1.42 inches
• Length: 60.15 yards
• Carrier: Thin polyester
• Adhesive Type: Pressure-sensitive acrylic
• Liner: 55 lb. densified kraft paper
• Color: Red
• Unit of Measure: Roll
• Package Weight: 0.93 pounds
• Package Length: 12.31 inches
• Package Width: 12.31 inches
• Package Height: 12.63 inches
• UPC: 00051115314674

Standard Information

• Brand: 3M
• Manufacturer Part Number: 7000049264
