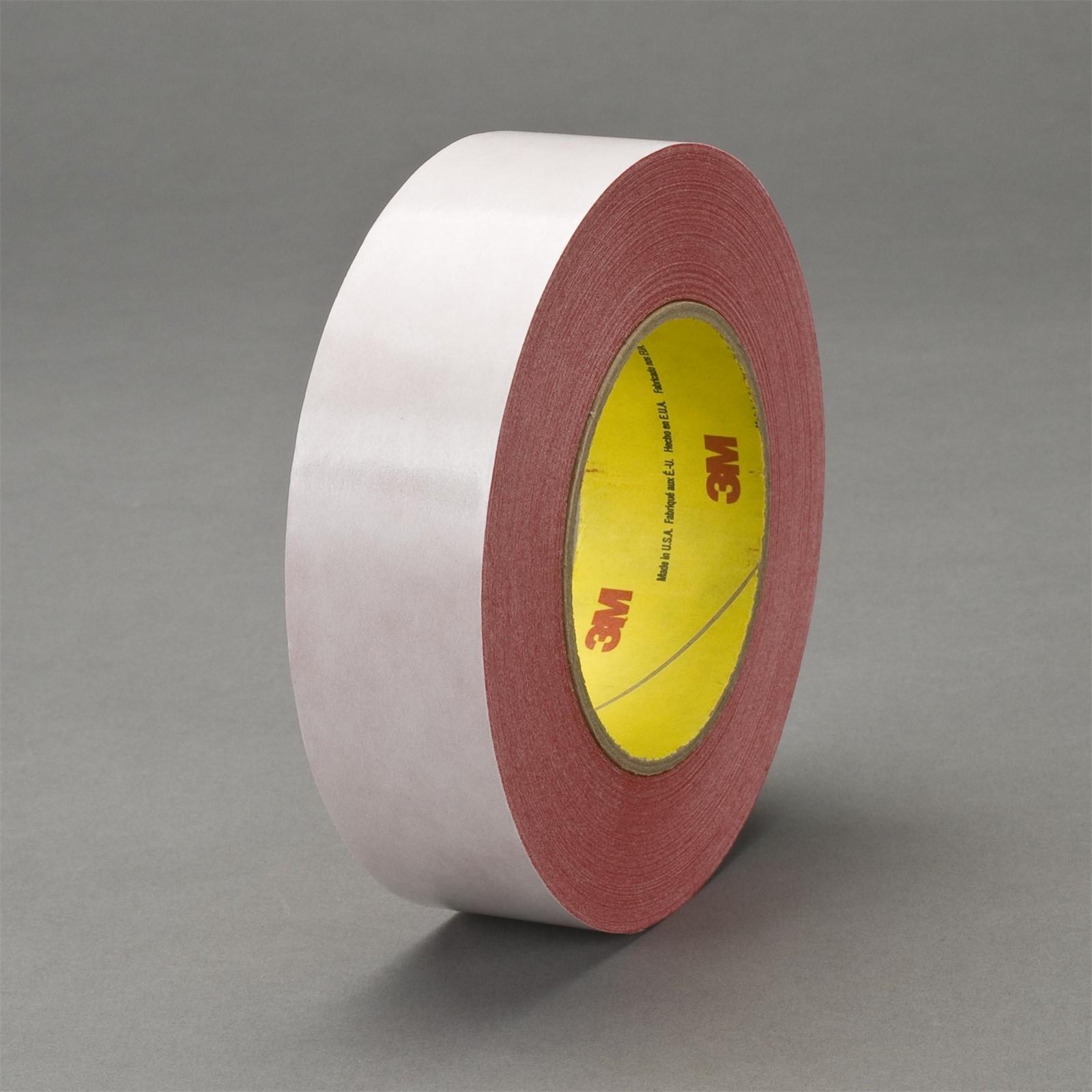

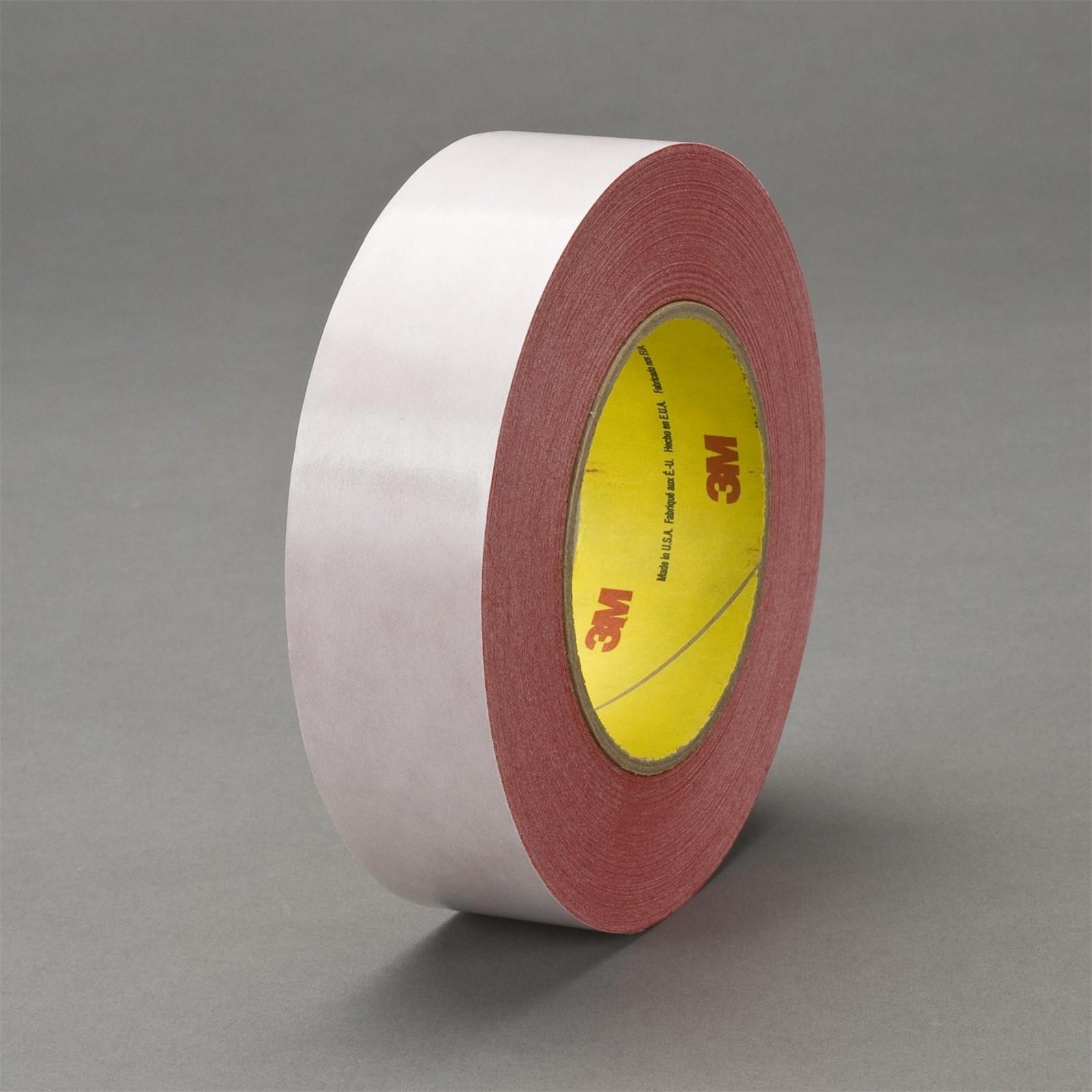

3M 7000049263 Double Coated Tape Red 0.95 in X 60.15 Yd

Product Description

The 3M 7000049263 is a double-sided tape built on a thin polyester carrier with a pressure-sensitive acrylic adhesive. It delivers a balance of high initial tack and lasting holding power, making it a reliable choice for high-speed splicing operations. The tape ships on a 55-pound densified kraft paper liner that releases cleanly and allows easy manipulation during application. The red colorway makes splice points visually identifiable on the line. Licensed technicians and industrial maintenance professionals working with paper, film, and converting equipment are the primary installers.

This tape is designed for high-speed splicing applications in paper converting, printing, and packaging environments. The acrylic adhesive bonds well to kraft paper, coated papers, and plastic substrates. Its moisture resistance supports consistent performance across variable ambient conditions. The wide operating temperature range of the acrylic chemistry makes it suitable for both ambient and elevated-temperature process lines.

Key Features

• Pressure-sensitive acrylic adhesive provides high initial tack and strong holding power
• Polyester carrier maintains dimensional stability during high-speed splicing
• 55-pound densified kraft paper liner allows clean, controlled release and easy handling
• Bonds to kraft paper, coated papers, and plastic surfaces
• Good moisture resistance supports performance in variable environments
• Red color enables visual identification of splice points

Compatibility

Designed as a direct-use double coated splicing tape for high-speed roll-to-roll converting, printing, and packaging equipment where a polyester-carrier acrylic tape with a kraft liner is specified.

Installation Notes

Application should be performed by trained converting or maintenance personnel familiar with splicing procedures for the specific equipment in use. Surfaces should be clean, dry, and free of dust or contaminants before tape is applied to ensure full adhesive contact. Avoid stretching the tape during application, as deforming the polyester carrier can reduce bond consistency. Follow all equipment lockout and line-stop procedures required by the facility before accessing running web machinery.

Technical Specifications

• Tape Width: 0.95 inches
• Tape Length: 60.15 yards
• Adhesive Type: Pressure-sensitive acrylic
• Carrier: Polyester
• Liner: 55-pound densified kraft paper
• Color: Red
• Unit of Measure: Roll
• Package Weight: 0.65 pounds
• Package Length: 12.31 inches
• Package Width: 12.31 inches
• Package Height: 12.63 inches
• UPC: 00051115314667

Standard Information

• Brand: 3M
• Manufacturer Part Number: 7000049263
