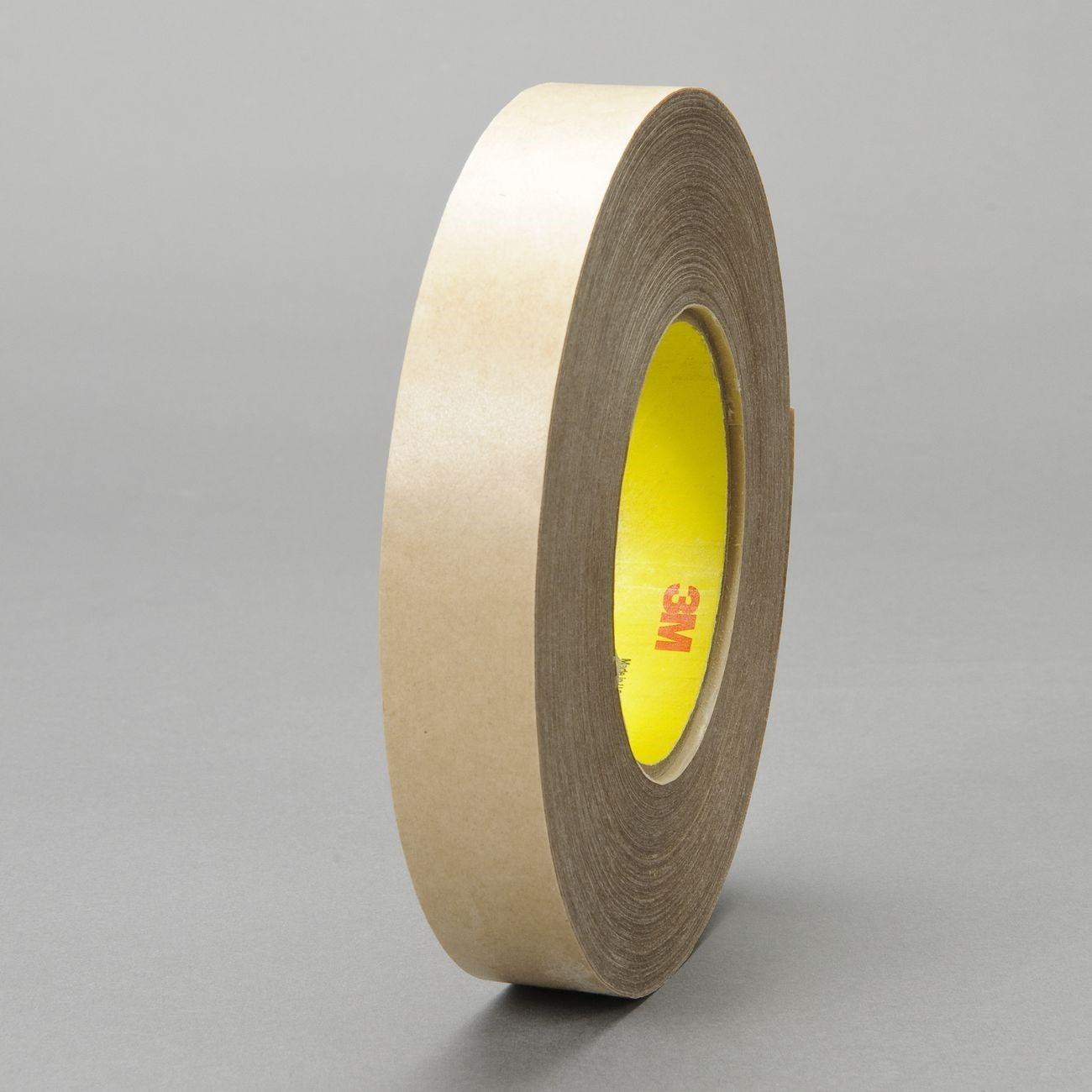

3M 7000048828 Adhesive Transfer Tape 0.37 in X 60 Yd

Product Description

The 3M 7000048828 is a high-performance acrylic adhesive transfer tape built on 3M High Performance Acrylic Adhesive 350. The tape measures 0.37 inches wide and 60 yards long and comes in at 5.0 mils thick. It is mounted on a tan, 58-pound polycoated kraft (PCK) paper liner that resists moisture and reduces wrinkling during application. Fiber reinforcement in the adhesive adds roll stability in narrow-width formats and prevents oozing. Designed for use in industrial and commercial bonding applications, this tape is installed or applied by production assemblers, fabricators, and maintenance technicians working with specialty bonding tasks.

This transfer tape excels at bonding high and low surface energy materials, including powder-coated paints and other difficult-to-adhere substrates. It is also suited for joining materials with rougher surface profiles. The tape is rated for short-term temperature exposure up to 450 degrees F and long-term continuous exposure up to 300 degrees F, making it appropriate for applications near heat sources or in elevated-temperature environments. Its low-odor formulation supports use in enclosed or occupied workspaces.

Key Features

• 5.0 mil thickness delivers high bond strength on low surface energy substrates and powder-coated surfaces
• 58-pound PCK paper liner resists moisture and minimizes liner wrinkles during unwind and application
• Fiber-reinforced adhesive maintains roll stability in narrow widths and resists adhesive ooze
• Rated for short-term exposure up to 450 degrees F and long-term use up to 300 degrees F
• Excellent chemical resistance with strong shear and peel performance at elevated temperatures
• Low-odor formulation suitable for use in occupied or enclosed work areas

Compatibility

Designed as an OEM-style bonding solution for use with high and low surface energy materials, powder-coated paints, and surfaces with moderate roughness in industrial and commercial assembly applications.

Installation Notes

Application is typically performed by production technicians or maintenance professionals using standard tape dispensing tools. Surface preparation is critical — clean and degrease bonding surfaces before application to ensure maximum adhesion. Follow all applicable workplace safety guidelines when working in temperature-sensitive environments. Do not exceed the rated temperature limits for the intended use duration.

Technical Specifications

• Tape Width: 0.37 inches
• Tape Length: 60 yards
• Tape Thickness: 5.0 mils
• Liner Type: 58-pound polycoated kraft (PCK) paper, tan
• Short-Term Temperature Rating: 450 degrees F
• Long-Term Temperature Rating: 300 degrees F
• Unit of Measure: Roll
• Weight: 0.31 pounds
• UPC: 00021200407840

Standard Information

• Brand: 3M
• Manufacturer Part Number: 7000048828
