3M 7000048697 Ptfe Glass Cloth Tape 5453 Brown 36x36yd

Product Description

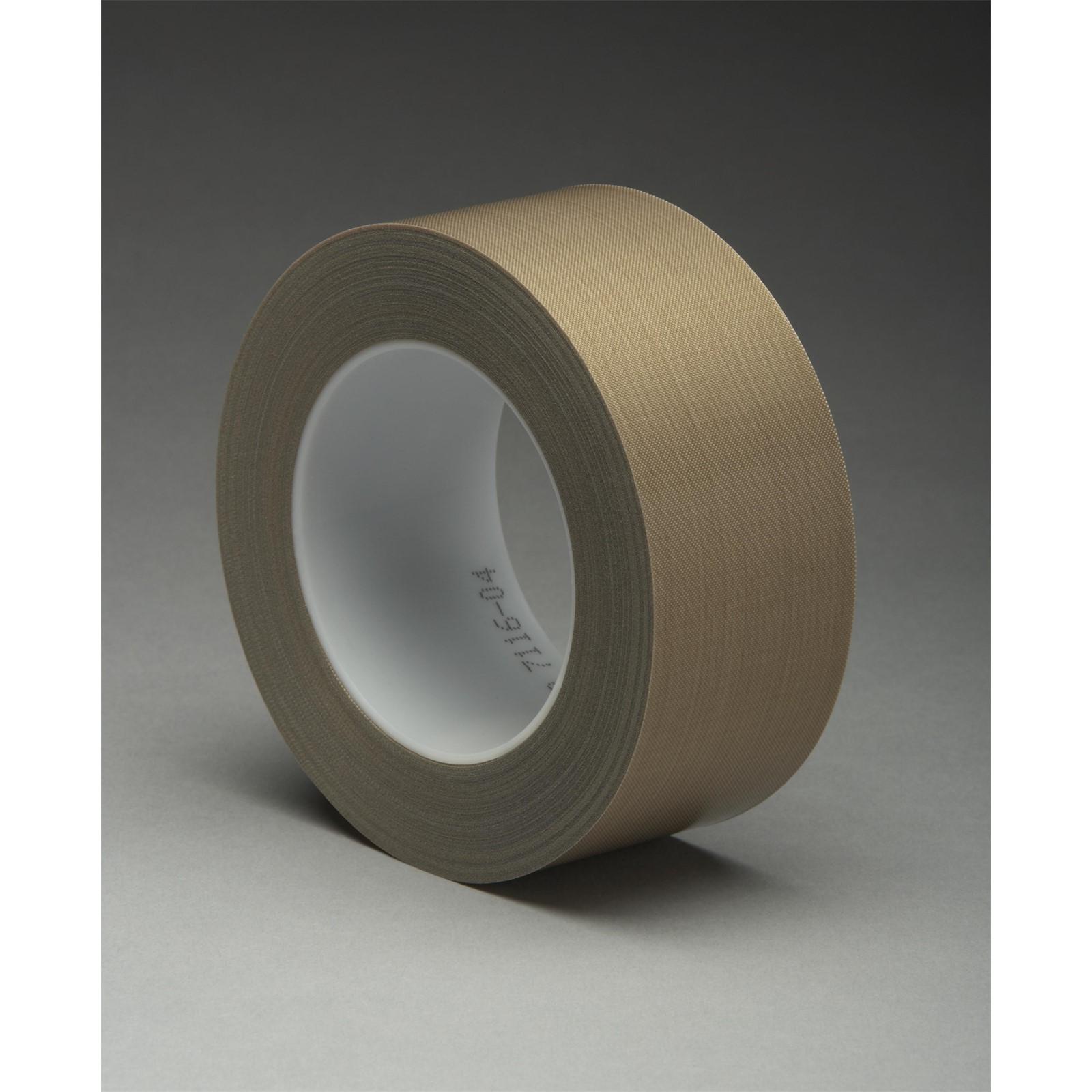

The 3M 7000048697 is a brown PTFE-impregnated glass cloth tape in the 5453 series, measuring 36 inches wide by 36 yards long with an overall thickness of 8.2 mils. The glass cloth backing is saturated with PTFE (Polytetrafluoroethylene) and finished with a silicone pressure-sensitive adhesive on the reverse side. This construction delivers a slick, non-stick surface combined with high tensile strength, puncture resistance, abrasion resistance, and low moisture absorption. It is rated for high-temperature environments and is the thicker-backing variant of Tape 5451, making it suited for more demanding process applications where additional durability is required.

This tape is used on heat sealing machines and process equipment where a reliable, easy-release surface is needed at elevated temperatures. Common applications include lining the sealing bars of packaging equipment that seal plastic film with a hot wire, as well as lining conveying chutes, troughs, and ducts to keep production flow smooth and reduce friction. It is appropriate for both light industrial and heavy process environments where chemical resistance and release performance are priorities. Maintenance technicians and equipment fabricators typically handle installation.

Key Features

• PTFE-impregnated glass cloth backing provides a slick, non-stick release surface at high temperatures
• 8.2 mil total thickness offers a thicker, more durable backing compared to Tape 5451
• Silicone pressure-sensitive adhesive bonds to metal and equipment surfaces without mechanical fasteners
• Resistant to most chemicals with low moisture absorption for process environments
• High tensile strength, puncture resistance, and abrasion resistance for long service life
• 36 inches wide by 36 yards long for broad coverage on wide equipment surfaces

Compatibility

Designed for use on heat sealing bars, conveying chutes, troughs, ducts, and general process equipment surfaces requiring a high-temperature non-stick release liner or protective facing.

Installation Notes

Surface should be clean, dry, and free of oils or debris before applying tape to ensure proper adhesion. Power down and de-energize all equipment before applying or removing tape from sealing bars or heated process components. Trim tape with a sharp utility knife or industrial scissors to fit the application surface cleanly. Consult equipment manufacturer guidelines for any temperature ratings or surface prep requirements specific to the machinery being serviced.

Technical Specifications

• Tape Series: 5453
• Color: Brown
• Backing Material: PTFE-impregnated glass cloth
• Adhesive Type: Silicone pressure-sensitive
• Thickness: 8.2 mils
• Width: 36 inches
• Length: 36 yards
• Weight: 27.96 pounds
• UPC: 00021200735776

Standard Information

• Brand: 3M
• Manufacturer Part Number: 7000048697
