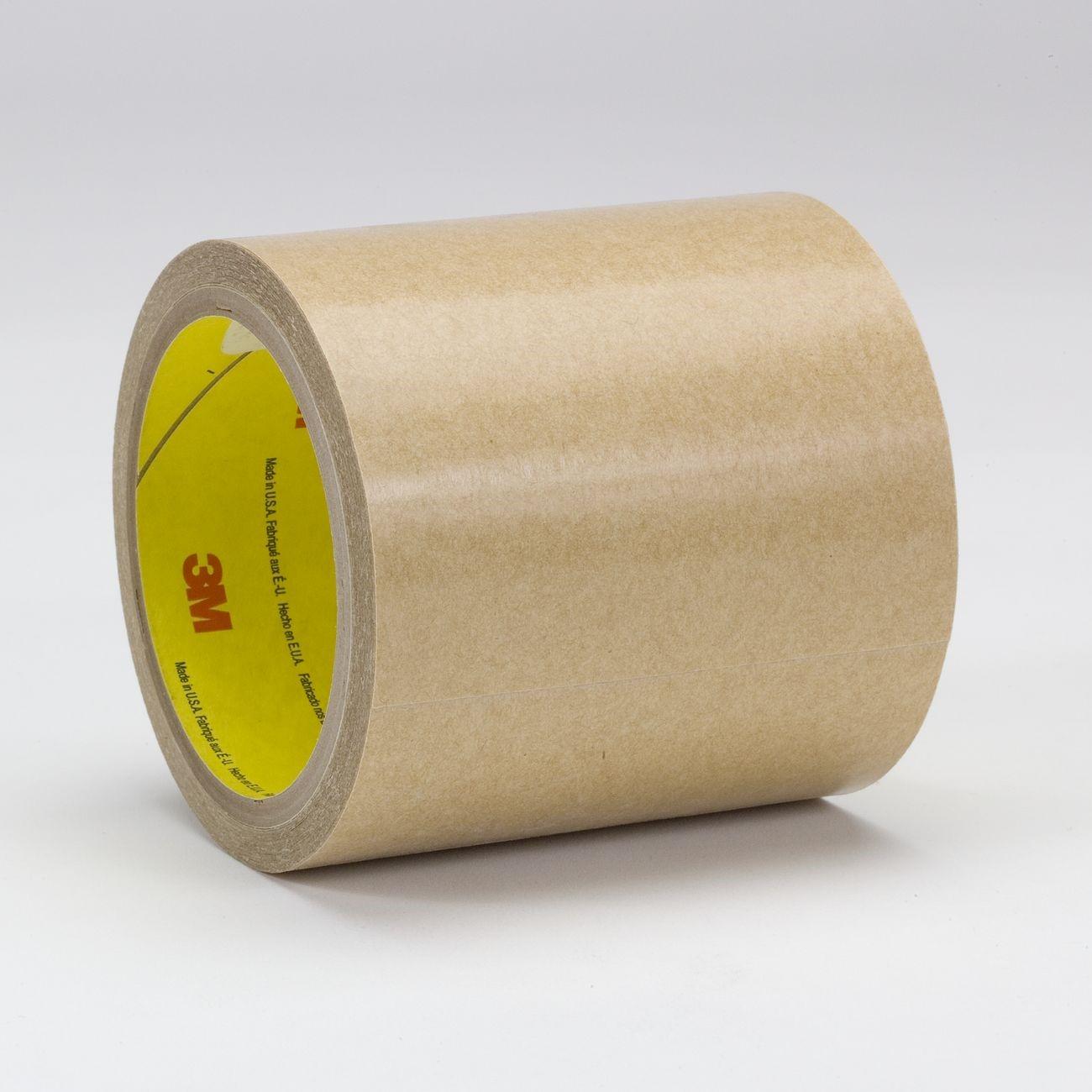

3M 7000048648 Adhesive Transfer Tape 1 in 60 Yd

Product Description

The 3M 7000048648 is a pressure-sensitive acrylic adhesive transfer tape belonging to the 3M High Strength Acrylic Adhesive 300 family. It delivers very high initial peel strength combined with good shear holding power, making it well suited for demanding bonding applications. The tape features a medium-firm acrylic adhesive that bonds effectively to both high-surface-energy (HSE) and low-surface-energy (LSE) plastics, as well as a broad range of other substrates. The EK liner, constructed from extensible polycoated kraft material, adds tensile strength and tear resistance during application and dispensing. This roll measures 1 inch wide by 60 yards long and weighs 0.88 pounds.

This adhesive transfer tape is used across a wide range of light industrial and manufacturing assembly applications. Common uses include splicing, laminating, mounting, and bonding dissimilar materials where a clean, liner-free adhesive layer is required. Its superior UV resistance and chemical resistance make it appropriate for applications exposed to environmental or process chemicals. The tape is sold in roll form and is typically applied by fabricators, assembly technicians, and print and sign professionals working with plastics, films, foils, and paper substrates.

Key Features

• Medium-firm acrylic adhesive with very high initial peel and good shear strength
• Bonds to both HSE and LSE plastic surfaces
• EK liner (extensible polycoated kraft) improves tensile strength and tear resistance during handling
• Superior UV and chemical resistance for demanding environments
• Suitable for splicing, laminating, mounting, and general bonding applications
• Transparent adhesive for clean, low-visibility bonds

Compatibility

Designed for bonding to a wide variety of substrates including HSE and LSE plastics, films, foils, and paper. Part of the 3M High Strength Acrylic Adhesive 300 product family.

Installation Notes

Clean and dry all bonding surfaces before applying the tape to ensure full adhesive contact. Apply firm, uniform pressure across the bond line to achieve maximum initial peel strength. Remove the EK liner carefully to avoid stretching or distorting the adhesive layer before placement. Follow applicable workplace safety guidelines when handling adhesive products in enclosed or ventilated spaces.

Technical Specifications

• Adhesive Type: Acrylic, pressure-sensitive, medium-firm
• Tape Width: 1 inch
• Tape Length: 60 yards
• Liner Type: EK (Extensible Polycoated Kraft)
• Adhesive Color: Transparent
• UV Resistance: Superior
• Chemical Resistance: Superior
• Unit of Measure: Roll
• Weight: 0.88 pounds
• UPC: 00021200243943

Standard Information

• Brand: 3M
• Manufacturer Part Number: 7000048648
