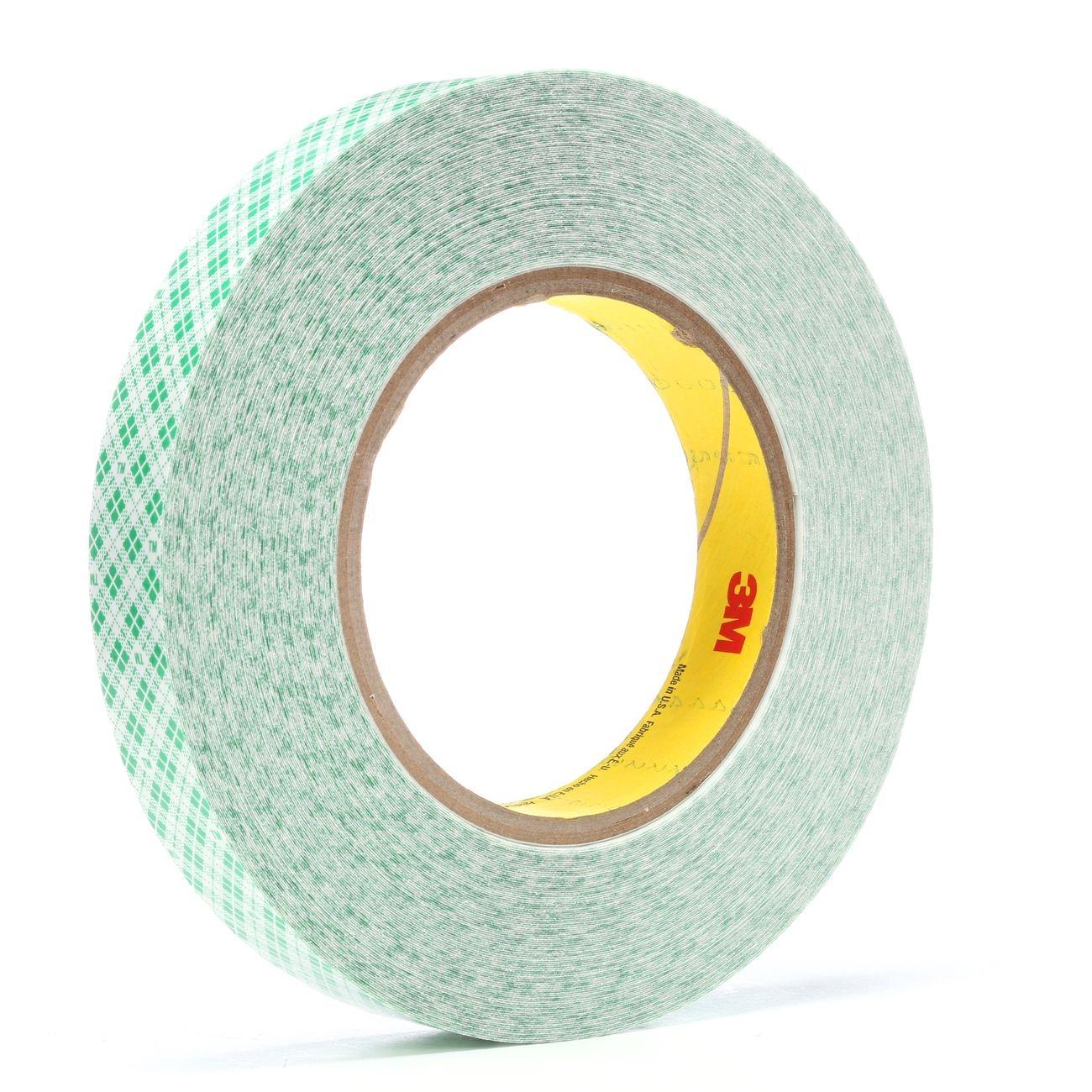

3M 7000048619 Double Coated Film Tape 0.75in X 36yd 9 Mil

Product Description

The 3M 7000048619 is a double coated film tape designed for bonding applications that demand reliable adhesion at room temperature. The tape features a 3 mil white High Density Polyethylene (HDPE) carrier with 3M Synthetic Rubber Adhesive 760 applied to both sides, yielding a total thickness of 12.7 mil. A 3.7 mil white densified kraft paper liner protects the second adhesive surface until application. At 0.75 inches wide and 36 yards per roll, this tape suits mounting, laminating, and assembly work where a clean, stable bond line is needed. Installers and technicians in HVAC, electrical, and general industrial trades use this format for splicing, component mounting, and panel assembly tasks.

This tape is suited for indoor, room-temperature environments where a synthetic rubber adhesive provides high initial tack and quick stick performance. Tape components comply with Title 21 of the Code of Federal Regulations (21 CFR) for indirect food contact applications, making it appropriate for use in food-processing-adjacent environments. Short-term heat resistance up to 200 degrees F allows use near moderate heat sources without immediate adhesive failure. The roll format and standard 0.75 inch width make it compatible with common tape dispensers used in light assembly and trade service work.

Key Features

• Double coated construction with 3M Synthetic Rubber Adhesive 760 on both sides for secure bonding
• 3 mil white HDPE film carrier for dimensional stability and clean handling
• Total tape thickness of 12.7 mil for consistent bond-line performance
• Short-term heat resistance up to 200 degrees F
• 21 CFR compliant for indirect food contact applications
• High initial adhesion and excellent quick stick for efficient assembly

Compatibility

Designed as an OEM-style replacement or standard-stock double coated film tape for indoor bonding, mounting, and laminating applications in light industrial and trade service environments.

Installation Notes

Surface preparation is critical — clean, dry, and dust-free substrates produce the strongest bond with pressure-sensitive adhesive tapes. Apply firm, even pressure across the tape length after placement to ensure full adhesive contact. This tape is rated for room-temperature and indoor use; avoid prolonged exposure above 200 degrees F or outdoor UV conditions. No special tools are required beyond a standard tape dispenser or utility knife.

Technical Specifications

• Width: 0.75 inches
• Length: 36 yards per roll
• Total Thickness: 12.7 mil
• Carrier: 3 mil White High Density Polyethylene (HDPE)
• Liner: 3.7 mil White Densified Kraft Paper
• Adhesive: 3M Synthetic Rubber Adhesive 760
• Short-Term Heat Resistance: 200 degrees F
• Compliance: 21 CFR indirect food contact
• Weight: 0.49 pounds
• Unit of Measure: Roll
• UPC: 00021200232046

Standard Information

• Brand: 3M
• Manufacturer Part Number: 7000048619
