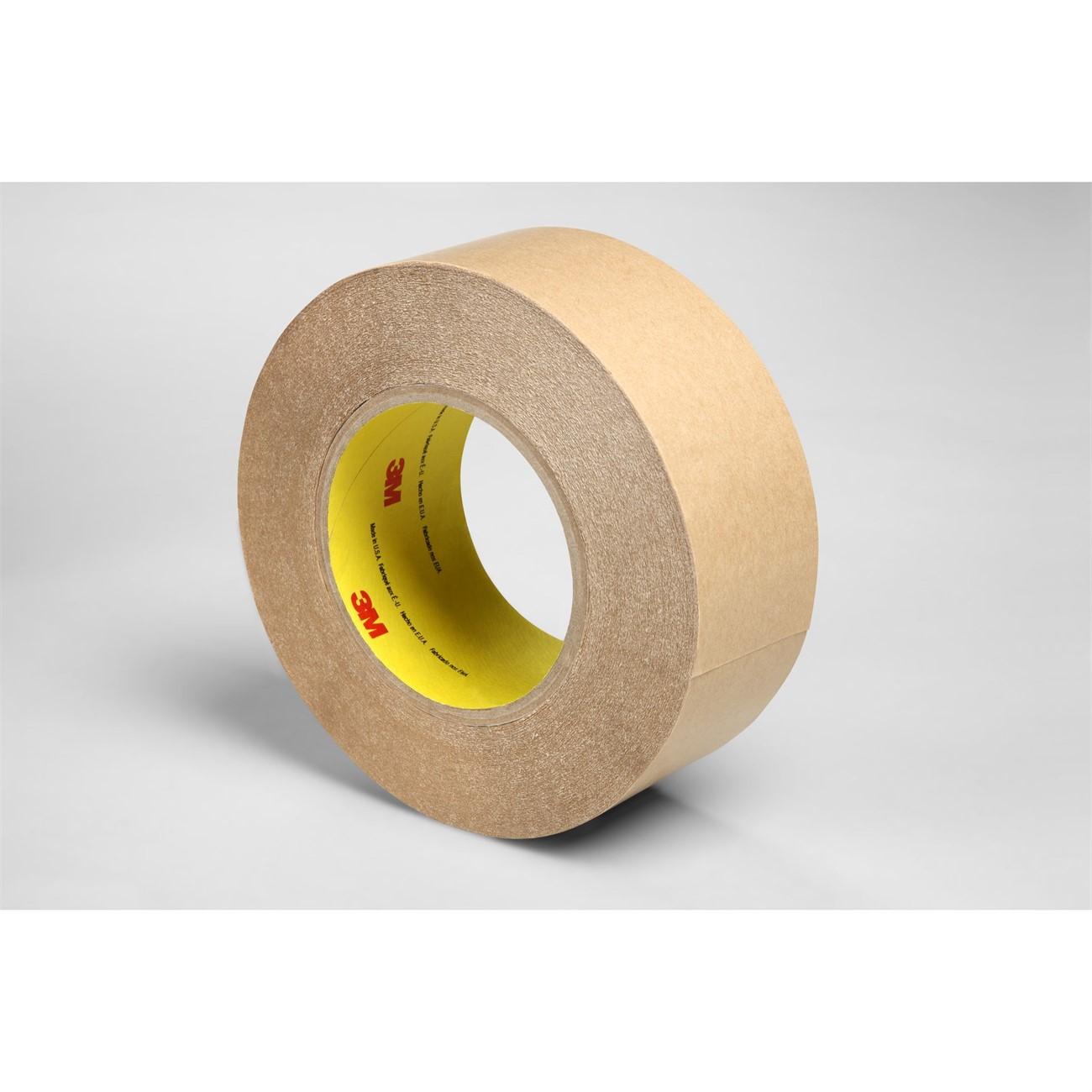

3M 7000048563 Double Coated Tape 2 Inch X 60 Yd 4 Mil

Product Description

The 3M 7000048563 is a medium-tack, double-coated tape designed for general splicing and roll-closing applications across converting and manufacturing environments. Built on a 4 mil construction with a transparent film carrier, it delivers ultra-high peel strength and excellent shear strength, giving it the durability needed to hold through rigorous splicing cycles. The adhesive bonds well to most substrates, including low-surface-energy plastics, and the tape conforms to irregular surfaces without lifting. This roll measures 2 inches wide by 60 yards long and weighs 1.4 pounds. Conversion, packaging, and industrial maintenance technicians are the primary installers.

This tape is suited for roll-to-roll splicing, core starting, and roll-closing operations in light to medium-duty industrial settings. Its double-sided adhesion increases dimensional stability, making it easier to handle during high-speed or manual splicing runs. The transparent carrier allows visual alignment during application. Excellent UV and heat resistance make it appropriate for environments where thermal cycling or light exposure is a factor. It is sold in rolls with a minimum order quantity of 24 rolls per unit of measure.

Key Features

• Medium tack double-coated construction suited for roll-to-roll splicing, core starting, and roll closing
• Ultra-high peel strength and excellent shear strength for durability under rigorous splicing loads
• Bonds to most substrates including low-surface-energy plastics
• Conformable to irregular surfaces for consistent contact and adhesion
• Excellent UV and heat resistance for thermally demanding or light-exposed environments
• Double-sided adhesion improves dimensional stability and simplifies handling

Compatibility

Designed as an OEM-style replacement or general-use double-coated tape for converting, packaging, and industrial splicing applications where medium-tack, film-carrier tape is specified.

Installation Notes

Application should be performed by trained converting or industrial maintenance personnel familiar with splicing tape practices. Clean and dry the substrate surface before applying to ensure full adhesive contact. Avoid stretching the tape during application, as this can reduce bond integrity. No special tools are required, though a hand roller is recommended for firm, even pressure across the bond line.

Technical Specifications

• Width: 2 inches
• Length: 60 yards
• Thickness: 4 mil
• Color: Transparent
• Weight: 1.4 pounds
• Package Dimensions: 13.4 inches x 13.4 inches x 13.3 inches
• Unit of Measure: Roll
• Minimum Order Quantity: 24
• UPC: 00021200842689

Standard Information

• Brand: 3M
• Manufacturer Part Number: 7000048563
