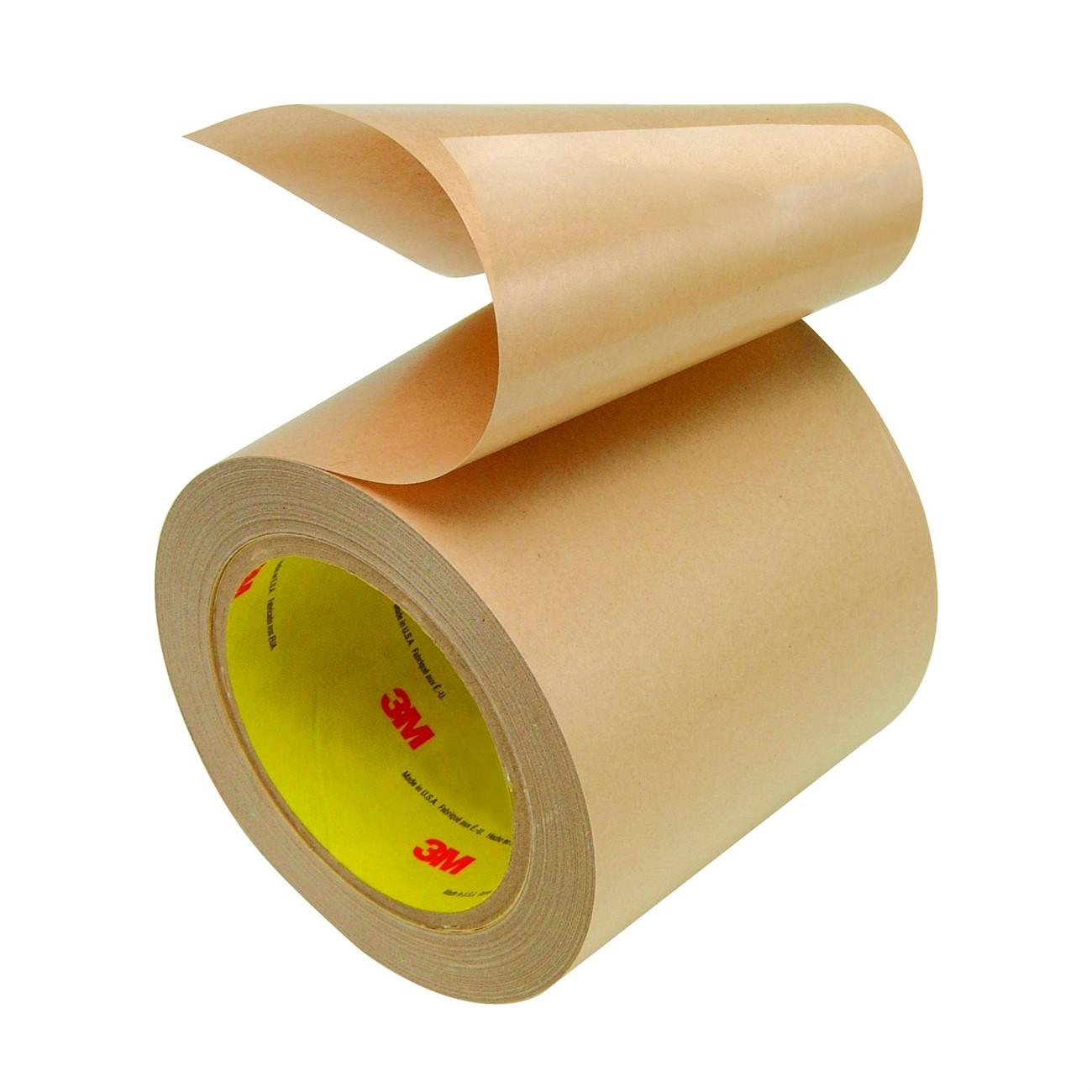

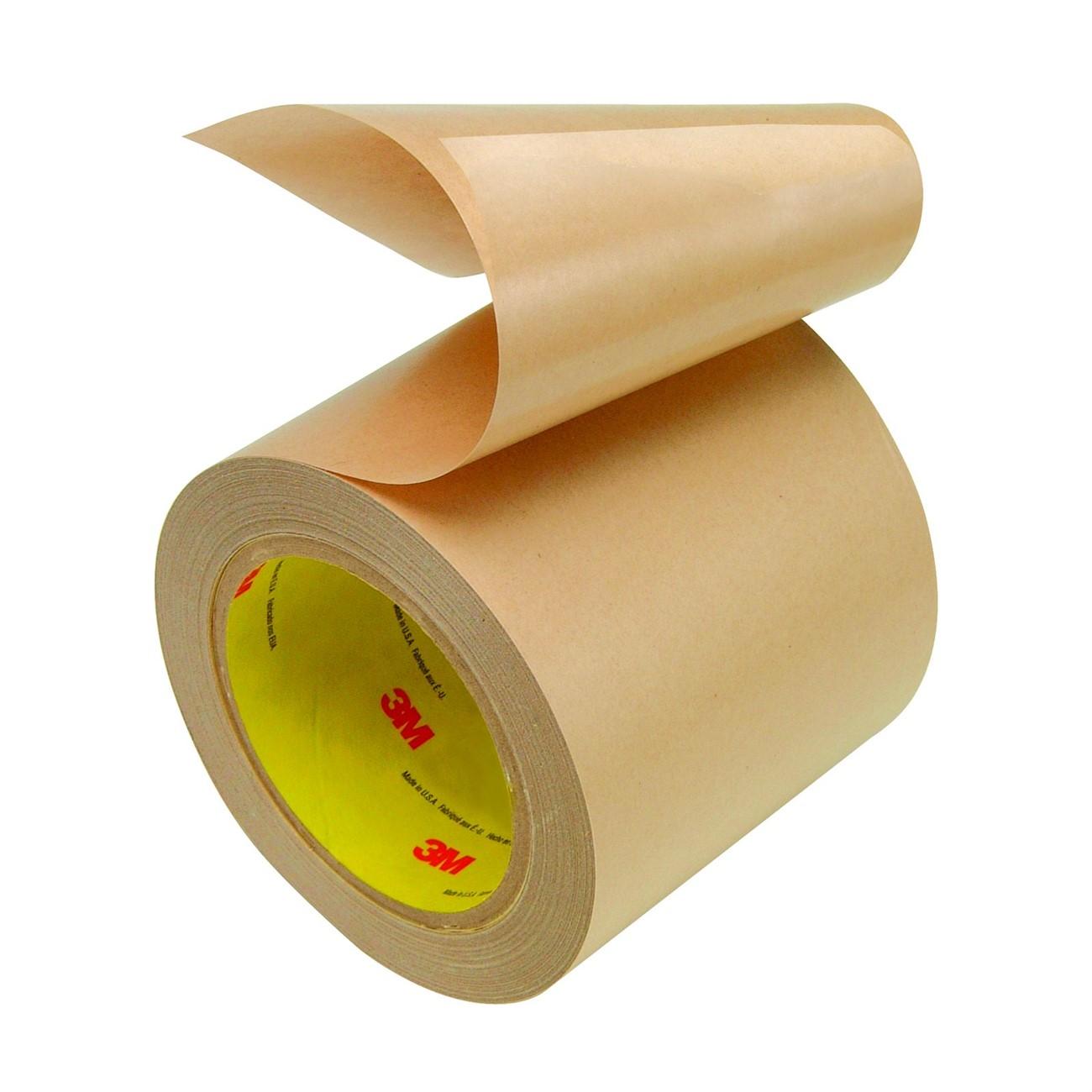

3M 7000048555 Z-axis Conductive Tape 9703 1in X 36yd

Product Description

The 3M 7000048555 is a pressure-sensitive adhesive (PSA) transfer tape with anisotropic electrical conductivity through the Z-axis. Also known as 3M Tape 9703, it conducts electricity through the adhesive thickness but not across the plane of the tape. This behavior is achieved through a PSA matrix loaded with aligned conductive particles. The tape is permanently tacky, repositionable, and reworkable, making it practical to apply without thermal bonding equipment. It is used in grounded EMI and RFI shielding attachment and in interconnection of silver ink and polyester-based flexible circuits. Licensed electricians and electronics assembly technicians are the primary installers.

Tape 9703 is suited for applications requiring stable electrical performance at moderately high temperatures. Typical use cases include bonding flexible circuits to rigid substrates and attaching EMI shielding components in electronics assemblies. The adhesive bonds well to polyimide and polyester flex circuit materials, FR-4 board, copper, steel, and aluminum. Both commercial electronics manufacturing and field-service repair scenarios rely on this product where reliable Z-axis conductivity and clean repositionability are required.

Key Features

• Anisotropic conductivity: conducts through adhesive thickness (Z-axis) but not in the plane of the tape
• Permanently tacky PSA matrix with aligned conductive particles — no thermal bonding required
• Repositionable and reworkable for clean, precise placement
• Stable electrical performance at moderately high temperatures
• Adheres to polyimide, polyester flex, FR-4, copper, steel, aluminum, and other common surfaces
• Designed for EMI and RFI shielding attachment and flexible circuit interconnection

Compatibility

Designed for grounded EMI and RFI shielding attachment and interconnection of silver ink and polyester-based flexible circuits, including applications on polyimide and polyester flex circuit materials, FR-4 board, copper, steel, and aluminum substrates.

Installation Notes

Installation is typically performed by electronics technicians or licensed electricians working on shielding or flex circuit assemblies. De-energize all circuits before applying or repositioning the tape on live assemblies. Clean substrate surfaces of oils, dust, and contaminants prior to application to ensure full adhesive contact. No special tools are required, but a roller or squeegee helps achieve uniform bond pressure across the tape surface.

Technical Specifications

• Product Type: Z-Axis Electrically Conductive PSA Transfer Tape
• Tape Series: 9703
• Roll Width: 1 inch
• Roll Length: 36 yards
• Conductivity Axis: Z-axis (through thickness only)
• Adhesive Type: Pressure-sensitive, permanently tacky
• Unit of Measure: Roll
• Weight: 0.45 pounds
• UPC: 00021200840647

Standard Information

• Brand: 3M
• Manufacturer Part Number: 7000048555
