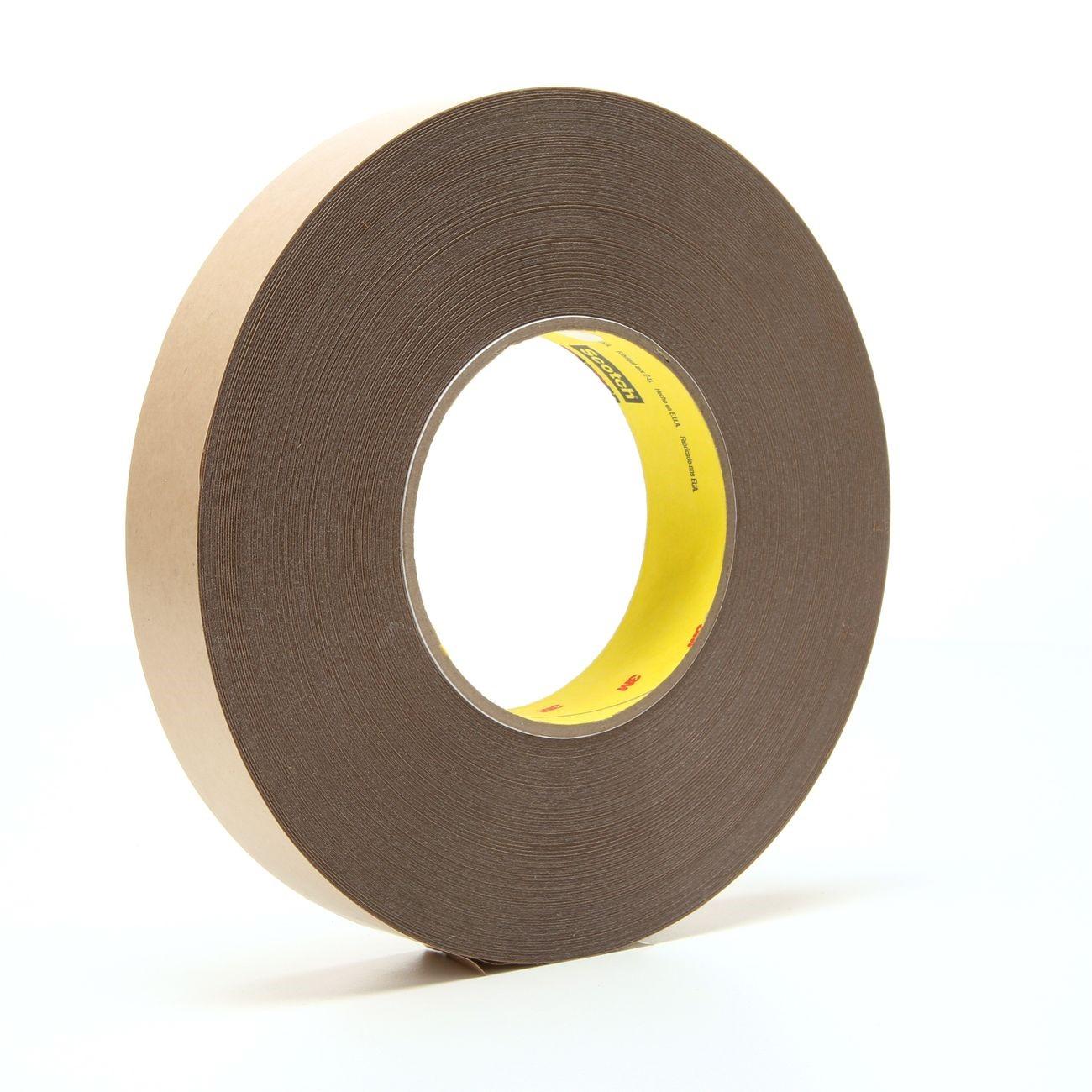

3M 7000048526 Repositionable Double Coated Tape 1in X 72yd

Product Description

The 3M 7000048526 is a double coated removable repositionable tape featuring two distinct acrylic adhesive systems on a polycoated kraft paper liner with a UPVC carrier. One side carries Acrylic Adhesive 420, a high-tack acrylic formulation well-suited to plastics and a broad range of surfaces. The opposite side carries Repositionable Acrylic Adhesive 1050, a medium-tack formulation that bonds securely yet releases cleanly without leaving residue. The tape is 1 inch wide, 72 yards long, and 5.8 mil thick. This differential adhesive design makes it a practical solution for assembly, mounting, and temporary bonding tasks in manufacturing, signage, and industrial maintenance environments.

This tape is used in applications where one side requires a permanent or aggressive bond and the other requires clean, repositionable adhesion. Typical uses include attaching graphics, overlays, labels, or foam components where periodic repositioning or final removal without surface damage is required. Adhesive 420 performs in bonding temperatures as low as 32 degrees F and withstands short-term heat exposure up to 300 degrees F. Adhesive 1050 holds to a wide range of surfaces and releases cleanly, making it suitable for both temporary assembly and end-use repositionable mounting applications.

Key Features

• Differential double coated construction: high-tack Adhesive 420 on one side, medium-tack repositionable Adhesive 1050 on the other
• Adhesive 420 bonds to plastics and offers a wide bonding temperature range down to 32 degrees F
• Short-term heat resistance up to 300 degrees F on the Adhesive 420 side
• Good chemical resistance and shock resistance on the Adhesive 420 side
• Adhesive 1050 provides clean removal without surface damage or residue
• UPVC carrier on a 58 lb. polycoated kraft paper liner for consistent handling and die-cutting

Compatibility

Designed for general industrial bonding and repositionable mounting applications; well-suited for use with plastics and a broad range of substrates where differential adhesion is required.

Installation Notes

Surface preparation is critical — clean and dry both bonding surfaces before application for best adhesion results. Apply firm pressure across the full tape area to ensure proper wet-out of both adhesive layers. When using the repositionable side for temporary placement, avoid repeated repositioning cycles that may reduce long-term tack. Remove the liner cleanly and handle the tape by the edges to avoid contaminating the adhesive surfaces.

Technical Specifications

• Width: 1 inch
• Length: 72 yards
• Total Thickness: 5.8 mil
• Carrier: UPVC
• Liner: 58 lb. polycoated kraft paper
• Adhesive Side 1: Acrylic Adhesive 420 (high tack)
• Adhesive Side 2: Repositionable Acrylic Adhesive 1050 (medium tack)
• Minimum Bond Temperature: 32 degrees F
• Short-Term Heat Resistance: 300 degrees F
• Unit of Measure: Roll
• Weight: 1.11 pounds
• UPC: 00021200677083

Standard Information

• Brand: 3M
• Manufacturer Part Number: 7000048526
