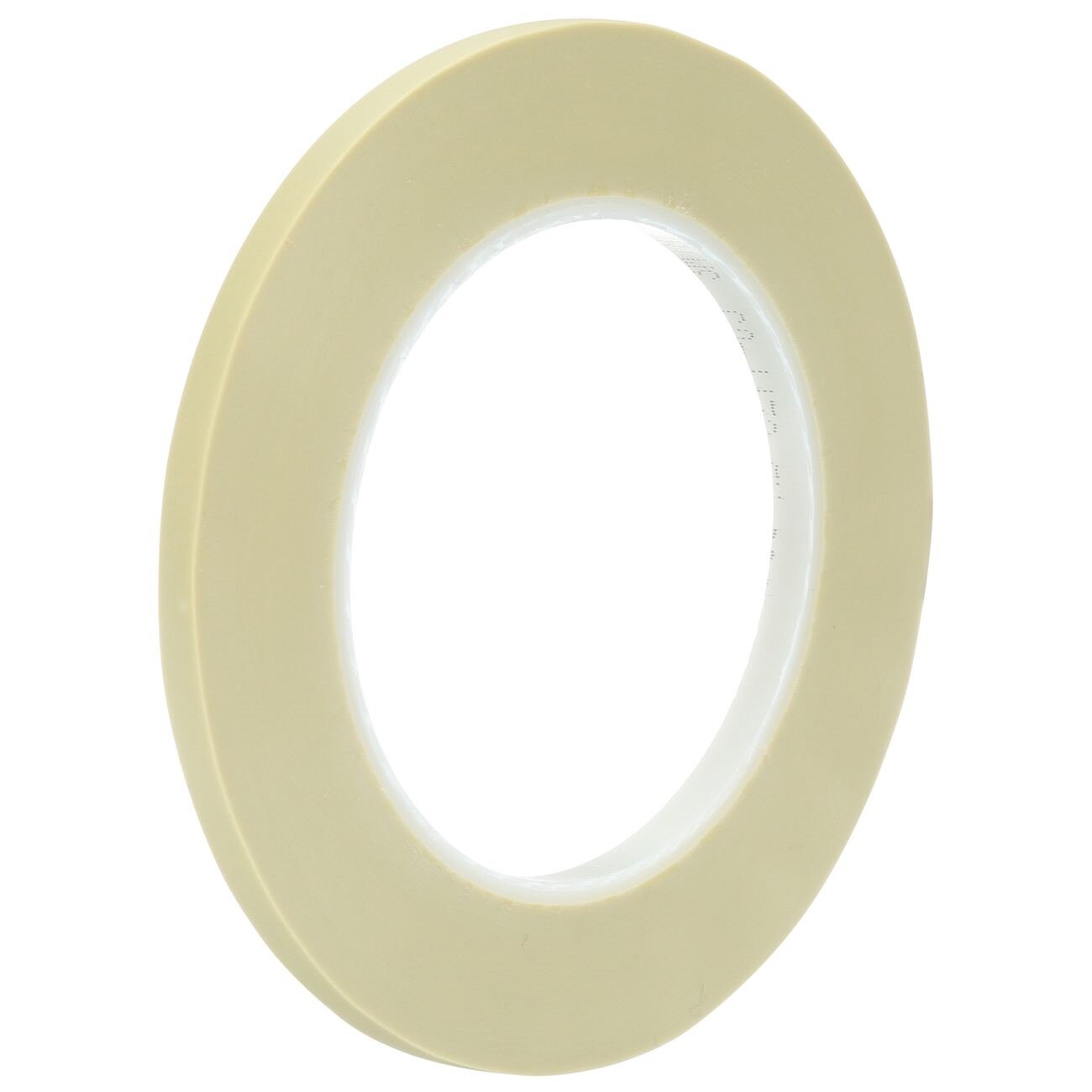

3M 7000048522 Fine Line Masking Tape 5.0 Mil 1.5x60yd

Product Description

The 3M 7000048522 is a fine line film-backed masking tape designed for precise paint line separation and controlled masking in automotive, industrial, and general finishing applications. At 5.0 mils thick, the tape sits low against the surface to create clean, sharp color lines with minimal paint bleed. The specialty processed film backing stretches to follow curves while holding steady along straight runs. Adhesion to steel measures 37 oz. per inch of width, and tensile strength reaches 13 lbs. per inch of width. Licensed tradespeople and finishing technicians use this tape where edge definition is critical and surface protection matters.

This tape is suited for automotive refinishing, industrial coating lines, and detail masking on painted or primed surfaces. The film backing allows application over fresh paint sooner than standard paper tapes, reducing the risk of imprint damage during multi-stage paint work. It provides strong moisture and solvent resistance throughout the masking process. Each roll measures 1.5 inches wide by 60 yards long. This tape is intended for indoor use only and should not be exposed to outdoor conditions. Operating temperature range reaches up to 250 degrees F.

Key Features

• 5.0 mil film backing provides a low-profile edge for sharp, clean paint lines
• Stretches over curves while maintaining straight-line control
• Adhesion to steel: 37 oz. per inch of width
• Tensile strength: 13 lbs. per inch of width with 720 percent elongation at break
• Resistant to moisture and solvents during masking applications
• Can be applied over fresh paint sooner than paper masking tapes

Compatibility

Designed as an OEM-style fine line masking tape for use on painted, primed, or prepped surfaces in automotive refinishing and industrial coating applications where clean edge definition is required.

Installation Notes

Applied by finishing technicians and auto body professionals as part of a masking setup before paint or coating application. Ensure the surface is clean and dry before taping. Remove tape promptly after the coating process is complete to avoid adhesive transfer or edge damage. Do not use outdoors or expose to prolonged UV or weather conditions.

Technical Specifications

• Thickness: 5.0 mil
• Width: 1.5 inches
• Length: 60 yards
• Adhesion to Steel: 37 oz. per inch width
• Tensile Strength: 13 lbs. per inch width
• Elongation at Break: 720 percent
• Temperature Use Range: Up to 250 degrees F
• Color: Green
• Weight: 0.54 pounds
• UOM: Roll

Standard Information

• Brand: 3M
• Manufacturer Part Number: 7000048522
