3M 7000048428 Double Coated Tape 0.5 in X 36 Yd Acrylic

Product Description

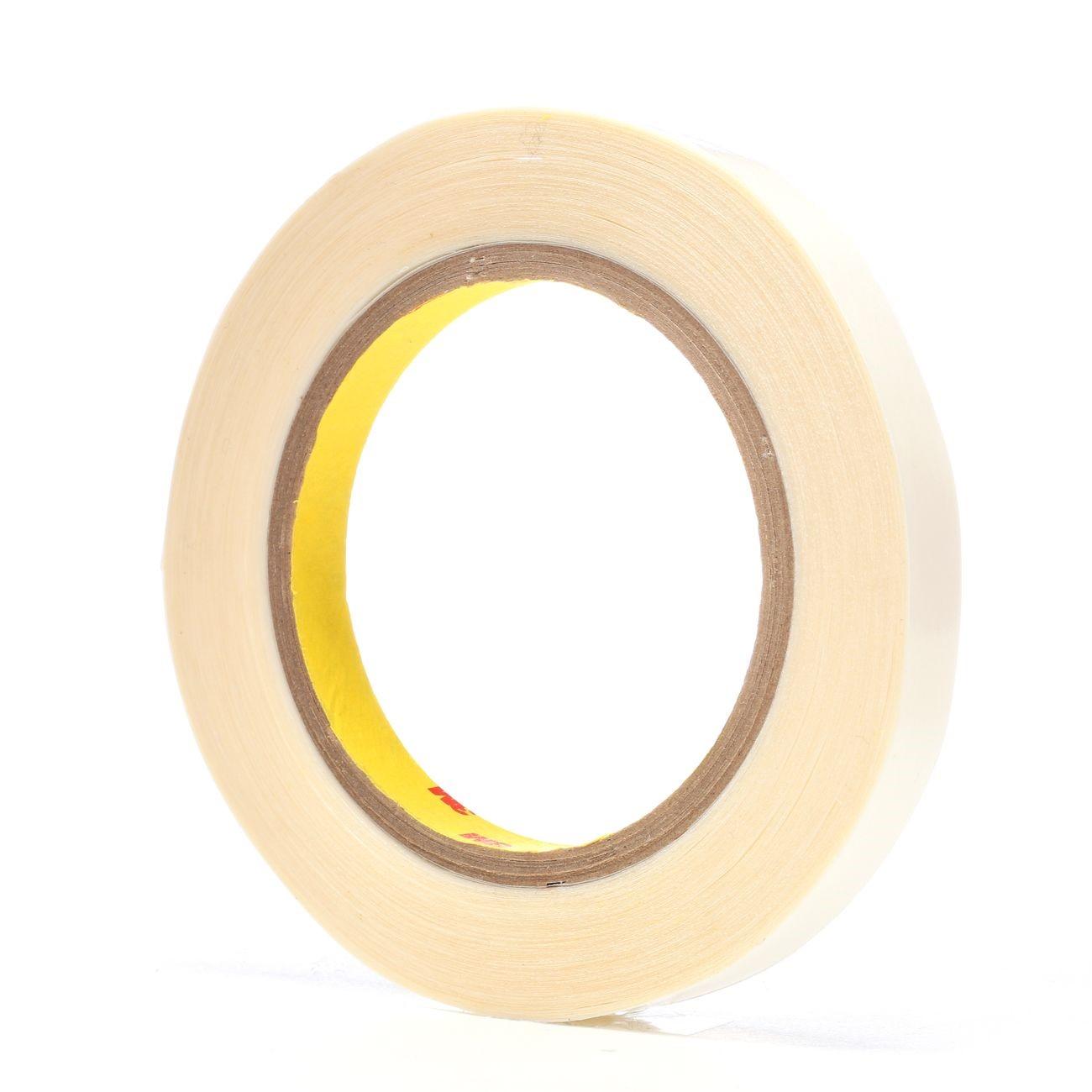

The 3M 7000048428 is a double coated tape built around 3M Adhesive 300, a medium-firm acrylic adhesive applied to both sides of a 0.5 mil polyester (PET) film carrier. The PET film adds dimensional stability and makes the tape easier to handle during slitting and die-cutting operations. A 3.2 mil densified kraft liner protects the second adhesive face until application. The tape comes in a 0.5 inch wide by 36 yard roll and is designed for bonding thin, smooth substrates with low residual stress. It is widely used by fabricators, assembly technicians, and trade professionals working with foam, gaskets, and plastic components.

This tape is suited for foam and gasket attachment, as well as bonding to both high-surface-energy (HSE) and low-surface-energy (LSE) plastics, including polyethylene. Typical applications include laminating lightweight sheet materials, attaching foam pads or gaskets to enclosures, and bonding plastic components in assemblies where a clean, repositioning-free bond is required. The quick-flowing adhesive delivers high initial tack, which reduces fixture time during production or field assembly work.

Key Features

• 3M Adhesive 300 medium-firm acrylic bonds aggressively to HSE and LSE plastics including polyethylene
• 0.5 mil PET film carrier provides dimensional stability and simplifies slitting and die-cutting
• Double coated construction bonds two surfaces in a single application step
• 3.2 mil densified kraft liner (55 grade) provides clean, easy release
• Quick-flowing adhesive delivers high initial tack for faster lamination
• Suitable for foam and gasket attachment applications

Compatibility

Designed for bonding smooth, thin substrates including foams, gaskets, HSE plastics, and LSE plastics such as polyethylene. Suitable for fabrication, lamination, and assembly applications where a double coated acrylic tape is required.

Installation Notes

Surfaces should be clean, dry, and free of oils or contaminants before application. Apply firm pressure across the full bond area to ensure full adhesive contact. Avoid stretching the tape during application, as the PET carrier has limited elongation. Once bonded, the acrylic adhesive is not designed for repositioning.

Technical Specifications

• Adhesive Type: 3M Adhesive 300, medium-firm acrylic
• Carrier: 0.5 mil PET film
• Liner: 3.2 mil densified kraft, 55 grade
• Width: 0.5 inches
• Length: 36 yards per roll
• Unit of Measure: Roll
• Weight: 0.26 pounds
• UPC: 00021200048418

Standard Information

• Brand: 3M
• Manufacturer Part Number: 7000048428
