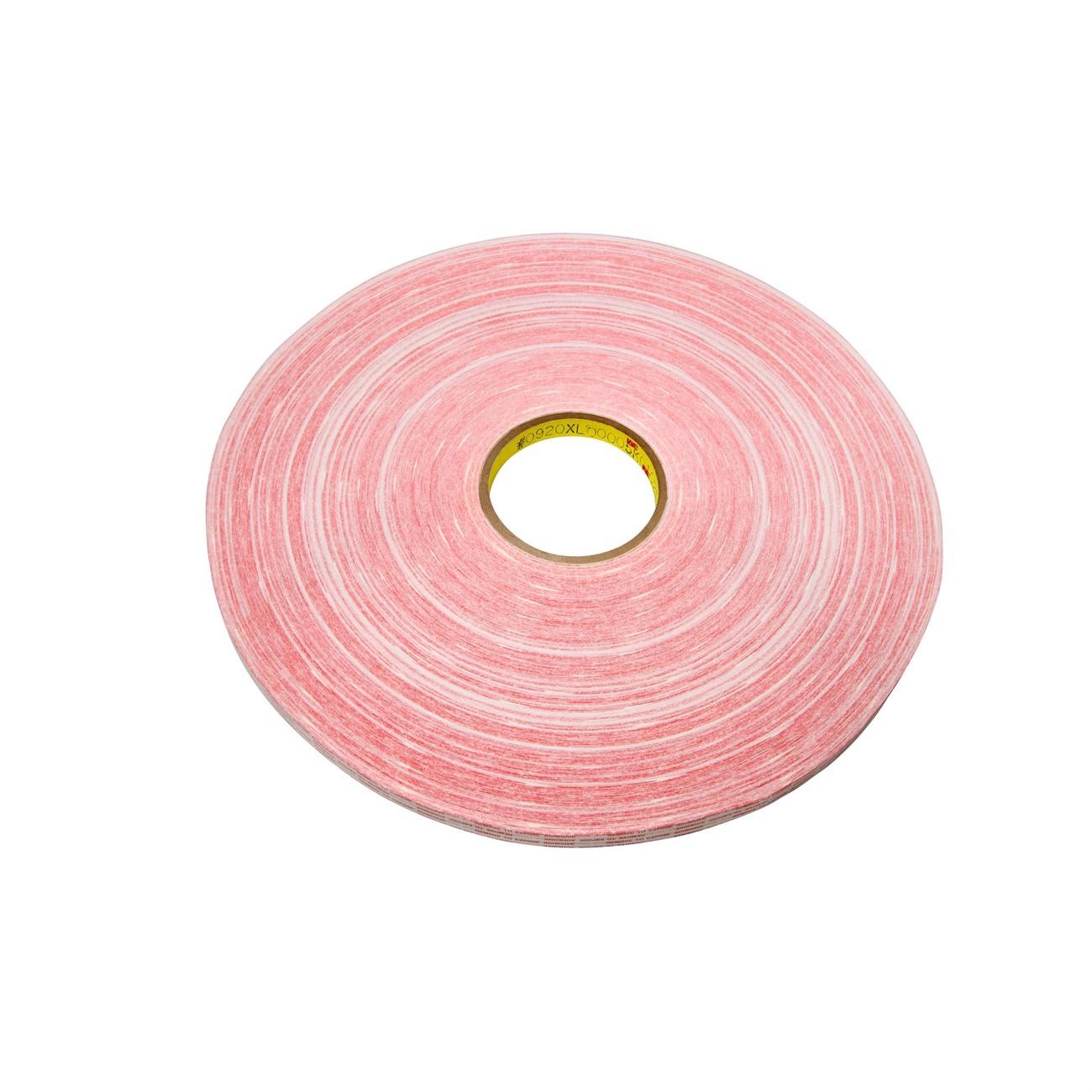

3M 7000048424 Adhesive Transfer Tape 0.5 Inch Wide

Product Description

The 3M 7000048424 is a general-purpose pressure-sensitive adhesive transfer tape supplied on a removable extended paper liner. The extended liner design gives technicians a dry edge and a finger lift edge, making it faster to start and remove the liner during assembly or bonding tasks. The tape roll edges are tack-free, which reduces adhesive buildup on dispensing equipment and keeps application tools cleaner between uses. This tape is suited for light industrial, commercial, and trade assembly work where a reliable, repositionable-style bond is needed on a variety of substrates.

This adhesive transfer tape is used in applications where a clean, thin bond line is required between two surfaces. The pressure-sensitive adhesive activates under hand or tool pressure without heat or solvents. Typical use cases include attaching nameplates, gaskets, trim pieces, insulation panels, and similar components in HVAC, electrical, and general mechanical assembly environments. The translucent tape allows for alignment during placement, which is useful in close-tolerance installations.

Key Features

• Pressure-sensitive adhesive bonds a wide variety of materials without heat or solvents
• Extended paper liner with dry edge and finger lift for fast, clean liner removal
• Tack-free roll edges reduce adhesive transfer to dispensing equipment
• Translucent tape allows visual alignment during application
• 0.5-inch width suits narrow bonding channels and trim applications
• Roll format compatible with standard tape dispensers

Compatibility

Designed as a general-purpose adhesive transfer tape suitable for bonding common trade substrates including metal, plastic, and painted surfaces in light industrial and mechanical assembly applications.

Installation Notes

Apply to clean, dry, and dust-free surfaces for best adhesion. Peel the extended liner using the finger lift edge before pressing the tape firmly into place. No special tools are required, though a roller or squeegee improves bond consistency on flat surfaces. Consult applicable codes and the substrate manufacturer guidelines when using adhesive tapes in structural or high-temperature environments.

Technical Specifications

• Width: 0.5 inches
• Form Factor: Roll
• Tape Color: Translucent
• Package Dimensions: 13.9 x 13.9 x 8.3 inches
• Weight: 2.42 pounds
• Minimum Order Quantity: 12
• UPC: 00021200047268

Standard Information

• Brand: 3M
• Manufacturer Part Number: 7000048424
