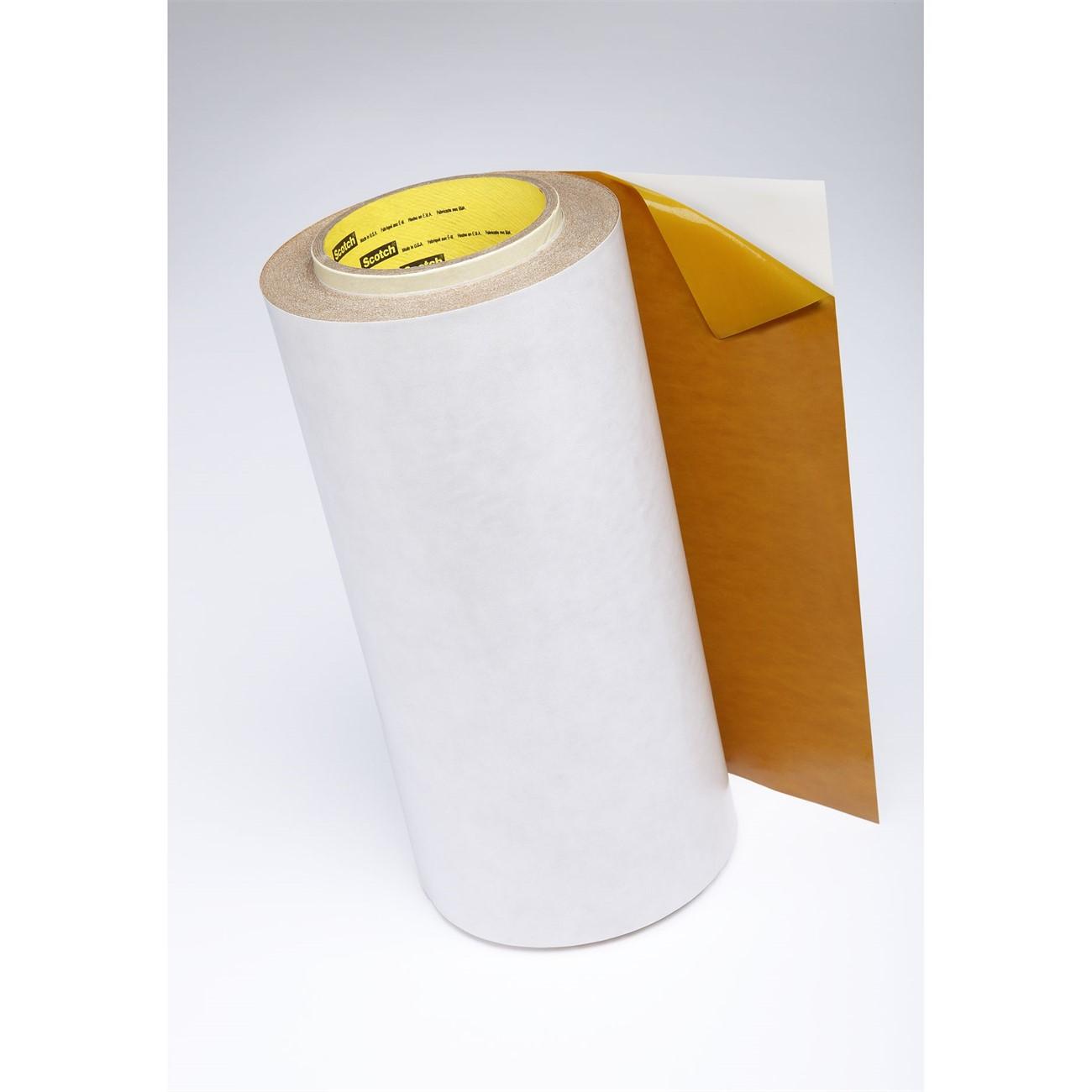

3M 7000047511 Thermal Bonding Film 3in X 60yd Roll

Product Description

The 3M 7000047511 is a flexible, dry film adhesive engineered for demanding bonding applications in the nameplate and industrial labeling industry. Composed of synthetic elastomer combined with thermoplastic and thermosetting resins, this 100 percent solids construction contains no carrier solvents in the adhesive layer itself. The film activates with either applied heat or compatible solvents, softening and flowing to conform to the substrate surface and forming a strong, permanent bond. Supplied as a roll measuring 3 inches wide by 60 yards in length, it is suited for high-volume processing environments where consistent lay-down and clean handling are required.

This thermal bonding film is used primarily in nameplate manufacturing and decorative overlay applications where a reliable, process-friendly adhesive is needed. Its dual activation method — heat or solvent — gives fabricators flexibility in choosing the bonding process that fits their equipment. Typical installations include bonding metal, plastic, or polyester nameplates to panels, enclosures, and housings in both residential and commercial product manufacturing environments. The specially formulated resin system is designed to simplify processing steps and improve throughput on production lines handling label and nameplate stock.

Key Features

• Dual activation: bonds with applied heat or compatible solvents
• 100 percent solids dry film construction — no wet adhesive handling required
• Synthetic elastomer, thermoplastic, and thermosetting resin composition for strong permanent bonds
• Flexible film softens and flows to conform to substrate surfaces
• Specially formulated for nameplate industry processing and application requirements
• Roll format supports high-volume production line use

Compatibility

Designed as an OEM-style bonding solution for nameplate fabrication and industrial overlay applications requiring a heat or solvent activated dry film adhesive.

Installation Notes

Application is typically performed by fabricators or industrial assembly technicians using heat press equipment or solvent activation per the process requirements of the production line. Ensure substrates are clean, dry, and free of oils or contaminants before bonding. Follow applicable workplace safety guidelines when using solvent activation methods, including adequate ventilation. Do not exceed the recommended activation parameters for the substrate material to avoid distortion or incomplete bond formation.

Technical Specifications

• Width: 3 inches
• Length: 60 yards
• Unit of Measure: Roll
• Weight: 1.52 pounds
• Adhesive Type: Dry film, heat or solvent activated
• Composition: Synthetic elastomer, thermoplastic, and thermosetting resins
• Solids Content: 100 percent
• UPC: 00021200034374

Standard Information

• Brand: 3M
• Manufacturer Part Number: 7000047511
